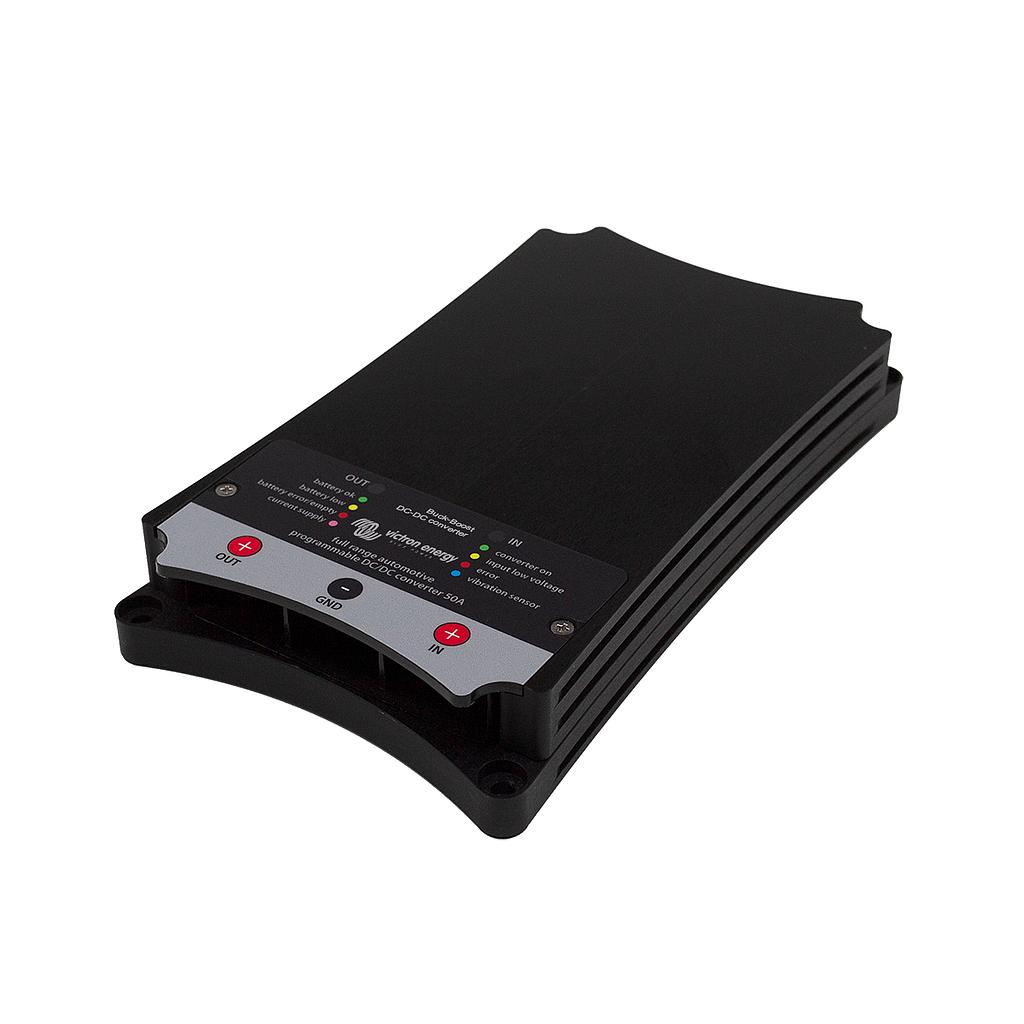

Victron Buck Boost DC-DC Converter 50A
Features:
- DC-DC Converter
- Charges 12/24V Battery in Vehicles with a Smart Alternator
- Engine Running Detection System
- Input & Output LED Status Indicators
- Completely Programmable
The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15.4V) and low voltages.
More Product Features:
"Engine Running" Detection System:
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system. Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).
Fully Programmable:
The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)
One Product for 12V, 24V and 12/24V Systems:
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.
Charge Current and Input Current Limiter:
The output current is determined by the following factors:
- The maximum charge current setting.
- The maximum input current setting.
- The maximum operating temperature limit of the converter.
Input Status Indication (LED):
Green: converter on:
Yellow: input voltage below the threshold, converter off.
Red: over temperature, converter off.
Blue, quick flash: engine running, the converter will start after a preset delay.
Blue, slow flash: the converter is OFF and activation is blocked due to low input voltage.
Output Status Indication (LED):
Green: converter off, battery voltage normal.
Yellow: converter off, battery voltage low.
Red: converter off, battery discharged or not connected.
Purple: converter on.
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
