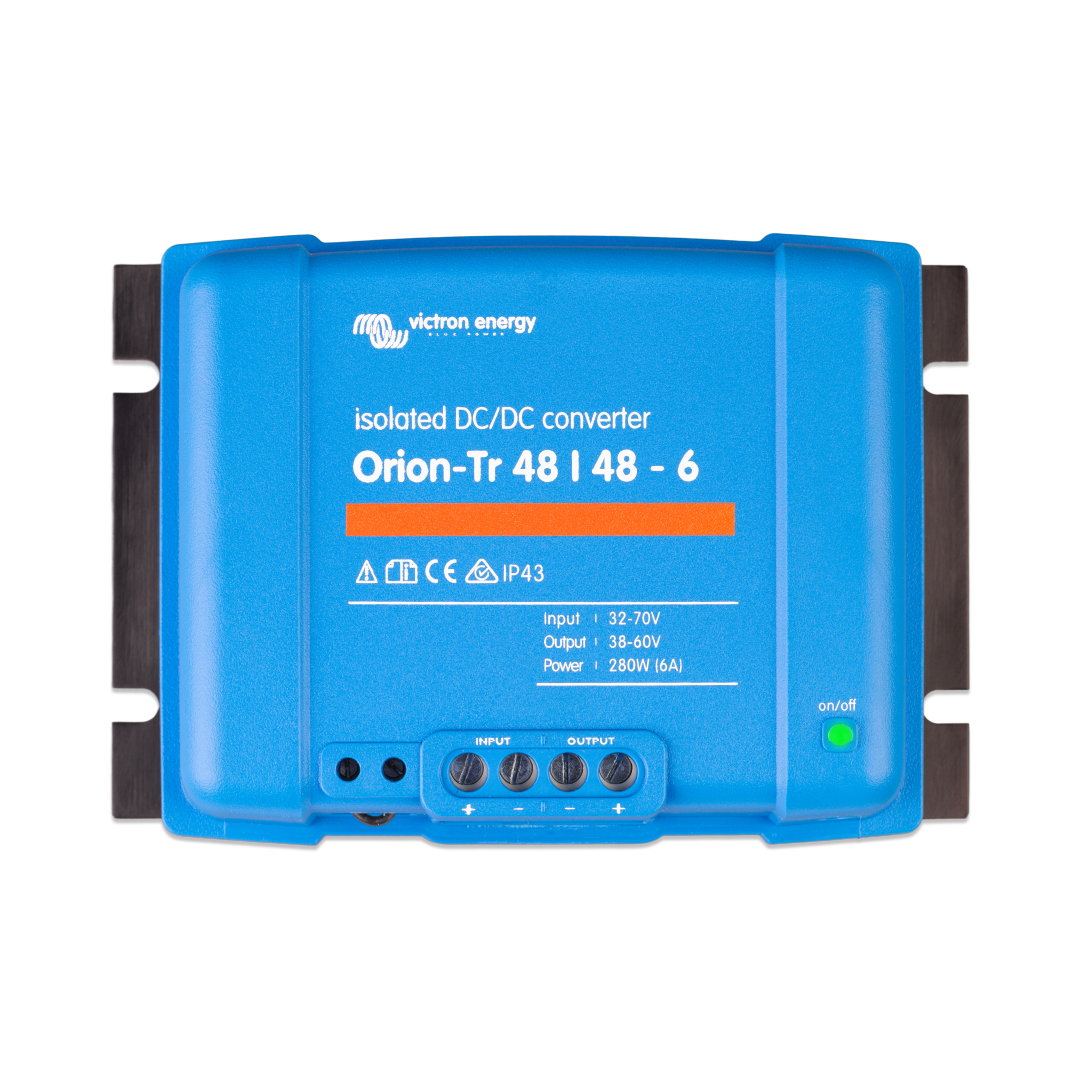

Victron Orion-Tr 48/48-6A (280W) Isolated DC-DC Converter
48V to 48V isolated DC-DC converter, 6A, adjustable output with remote on/off
Victron Orion-Tr 48/48-6A (280W) Isolated DC-DC Converter
Features:
- 48V to 48V isolated DC-DC converter, 6A continuous (280W)
- Galvanic isolation between input, output and case
- Adjustable output 40-60V, so it can also charge a battery
- Remote on/off input
- Short circuit proof
- Efficiency 89%
- IP43 protection (screw terminals facing down)
Where to use it
Supplying stable, isolated 48V power to electronics, radios and control equipment from a 48V system in vehicles, boats and machinery.
The isolation keeps the input and output negatives separate, which helps avoid ground loops and interference. Several units can be paralleled for more power.
Dimensions
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications:
Marine
RV's
Motor Homes
4WD
Motor Vehicles
