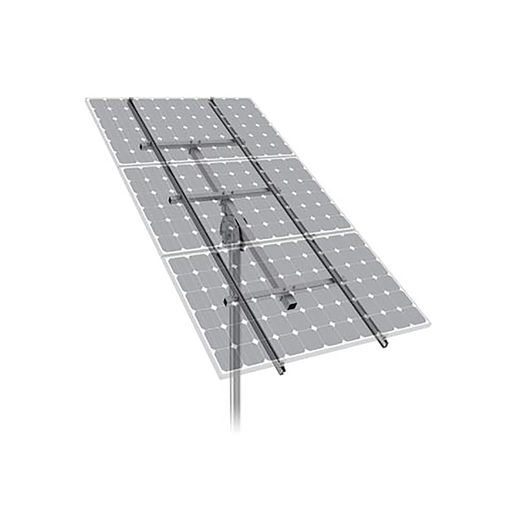

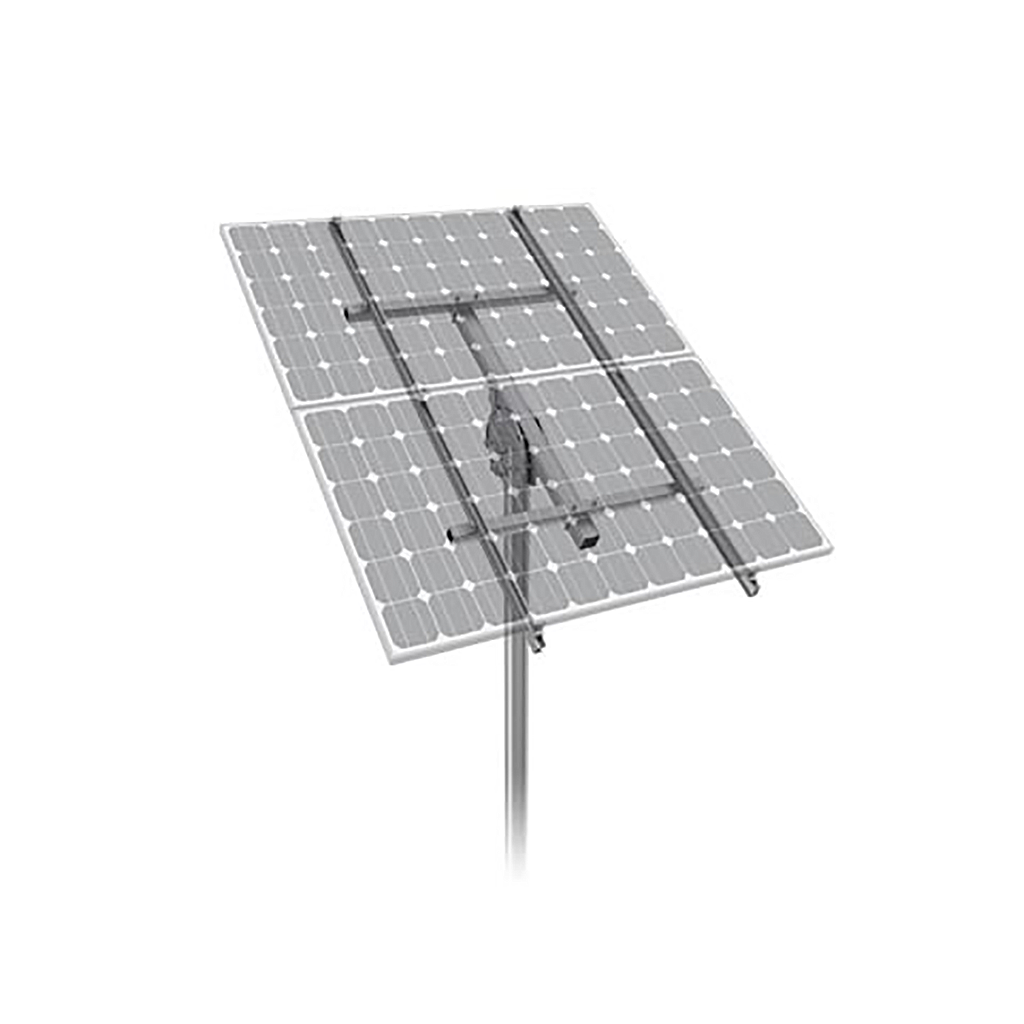

Clenergy Ezrack post mount kit:
PV-ezRack PostMount-A delivers flexible and durable designs to mount from one to four panels per post. It’s ideal for remote off-grid applications such as water pumps or small residential and commercial systems. The panel tilt is easily adjustable between 10° and 60° throughout the year and comes with hassle-free mounting thanks to patented components such as the PV-ezRack rails and clamps. The combination of high quality aluminium, stainless steel and galvanised steel components make this a robust, reliable system with excellent corrosion resistance.
The PV-ezRack PostMount 2-A parts, when installed in accordance with the installation guide, will be structurally adequate and will meet the AS/NZS1170.2:2011 Amdt 2-2012 standard.
Key benefits:
Robust and reliable- Mounted on aluminium rails the panels are supported by robust galvanised steel landscape and master tubes secured with stainless steel bolts. The post is fixed into a concrete foundation.
Quick and easy installation- Innovative and internationally patented, the Z-Module technology is used in almost all PV-ezRack components. The Z-Module provides a quick, easy and safe installation method and can be inserted into the rail at any given point, secured with just three hand grips.
Suitable for every soil condition- With its concrete foundation, PostMount can be installed on even or uneven ground or on a slope, making it suitable for any soil type and a wide range of applications.
Adjustable tilt angle- The steel cap (post head) is designed to tilt panels between 0° and 60° to ensure that you get the required power output you need - anywhere, anytime. Changing the angle merely requires a single pair of spanners.
Components:
- End clamp
- Inter clamp
- Galvanize pole
- Steel cap
- Adjust tube
- Master tube
- Angle bracket
- Light rail
- U bolt
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Clenergy:
Clenergy is a technology enabler for governments, the public sector & enterprises seeking carbon neutrality. They believe in a sustainable, clean energy-powered future, and continue to reinvent their approach and innovate through technology and service to reach this mission. Founded in Melbourne, Australia, with offices and factories across China, Japan, the Philippines, Thailand and Germany.
PVezRack® is the flagship product line, which has been servicing the solar industry since 2007 and has grown into an Australian icon with its products now sold across 30 countries. Clenergy’s ongoing research and development is backed by a culture of open innovation, excellence through quality and being service-focused. Clenergy is an ISO 9001 accredited company and all of its products comply with international standards. Dun & Bradstreet has accredited Clenergy as a 5A1 business.
