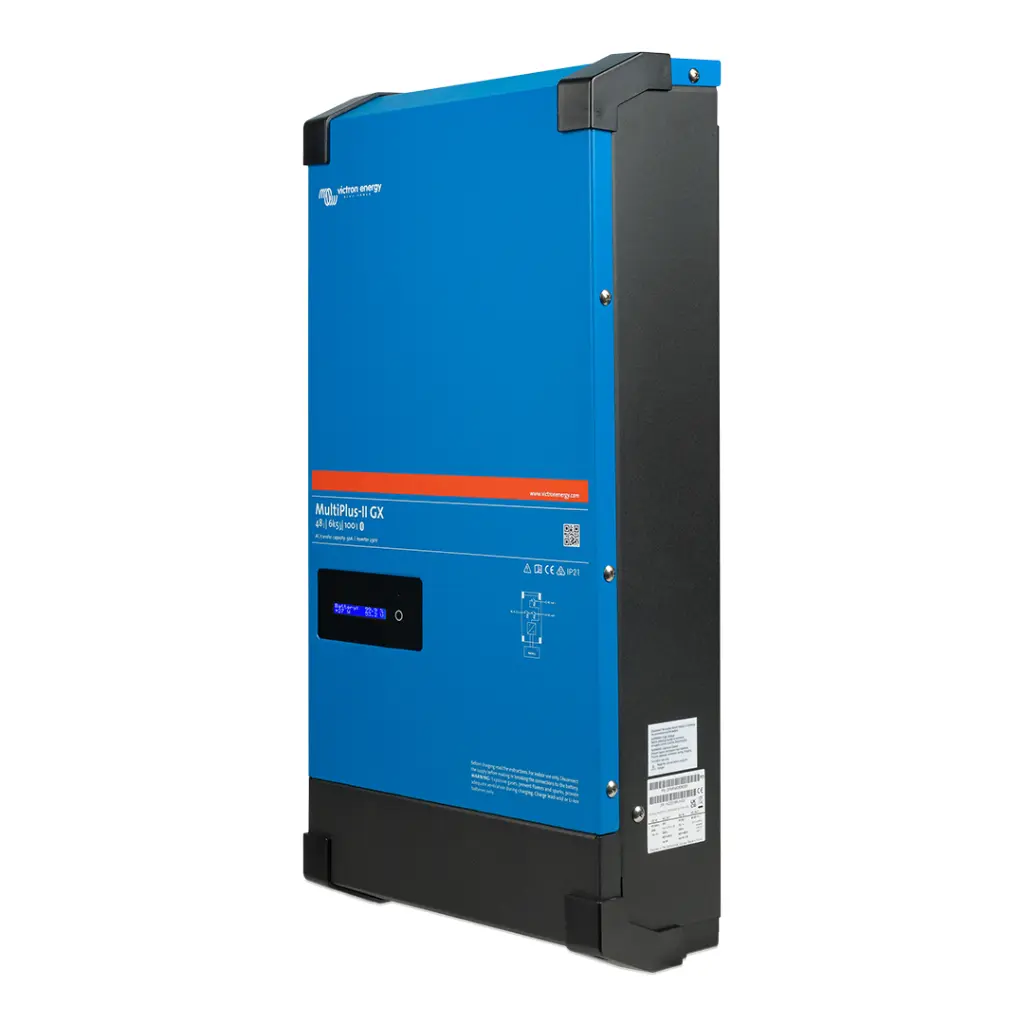

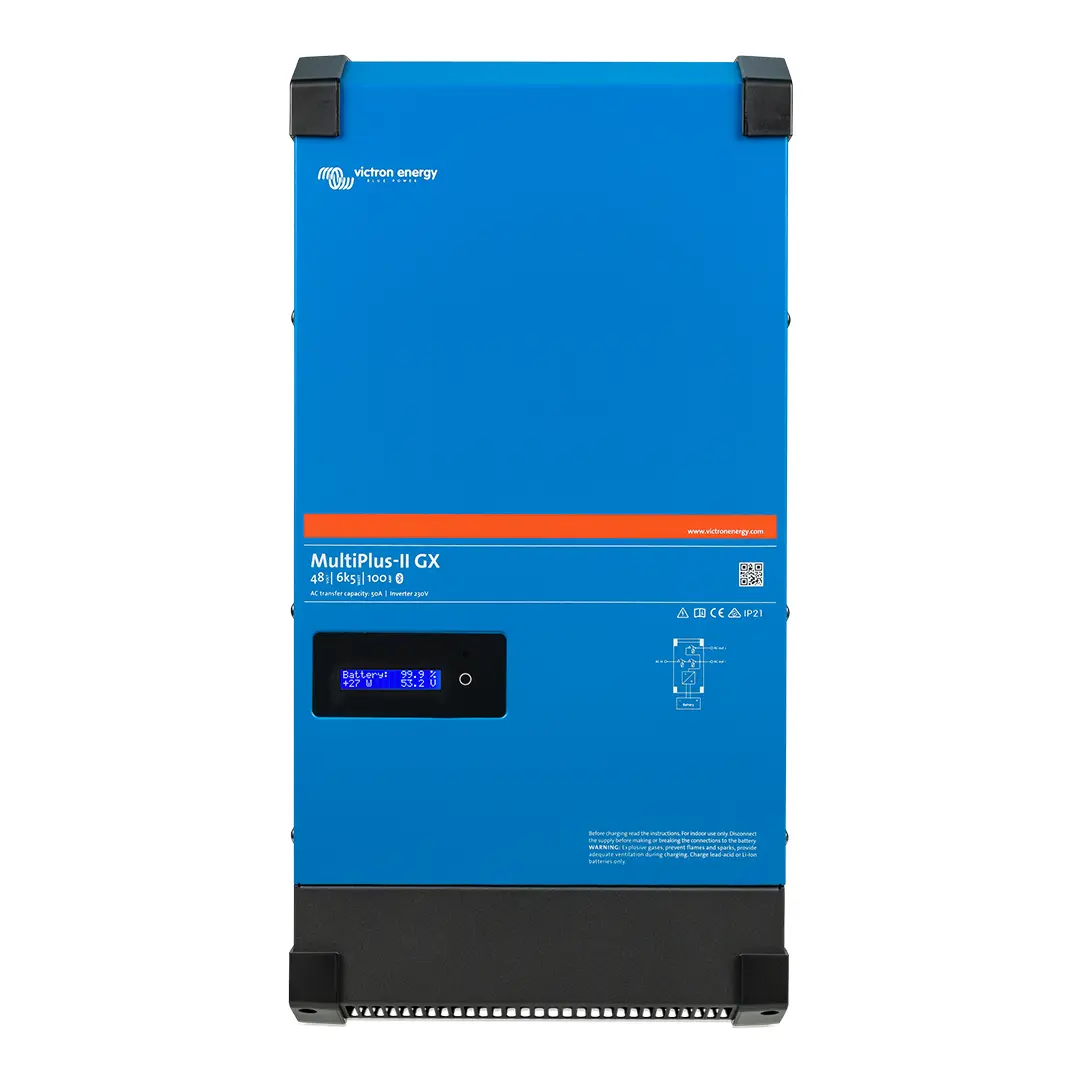

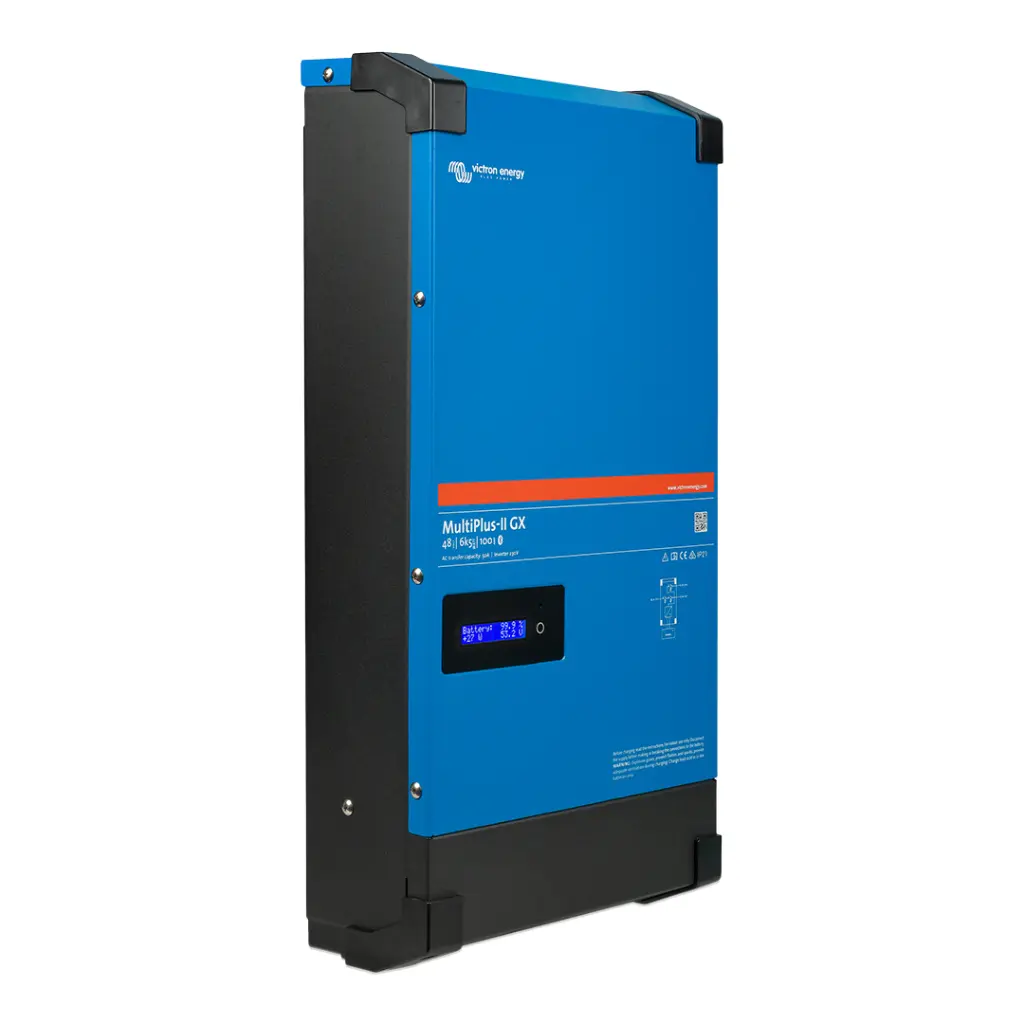

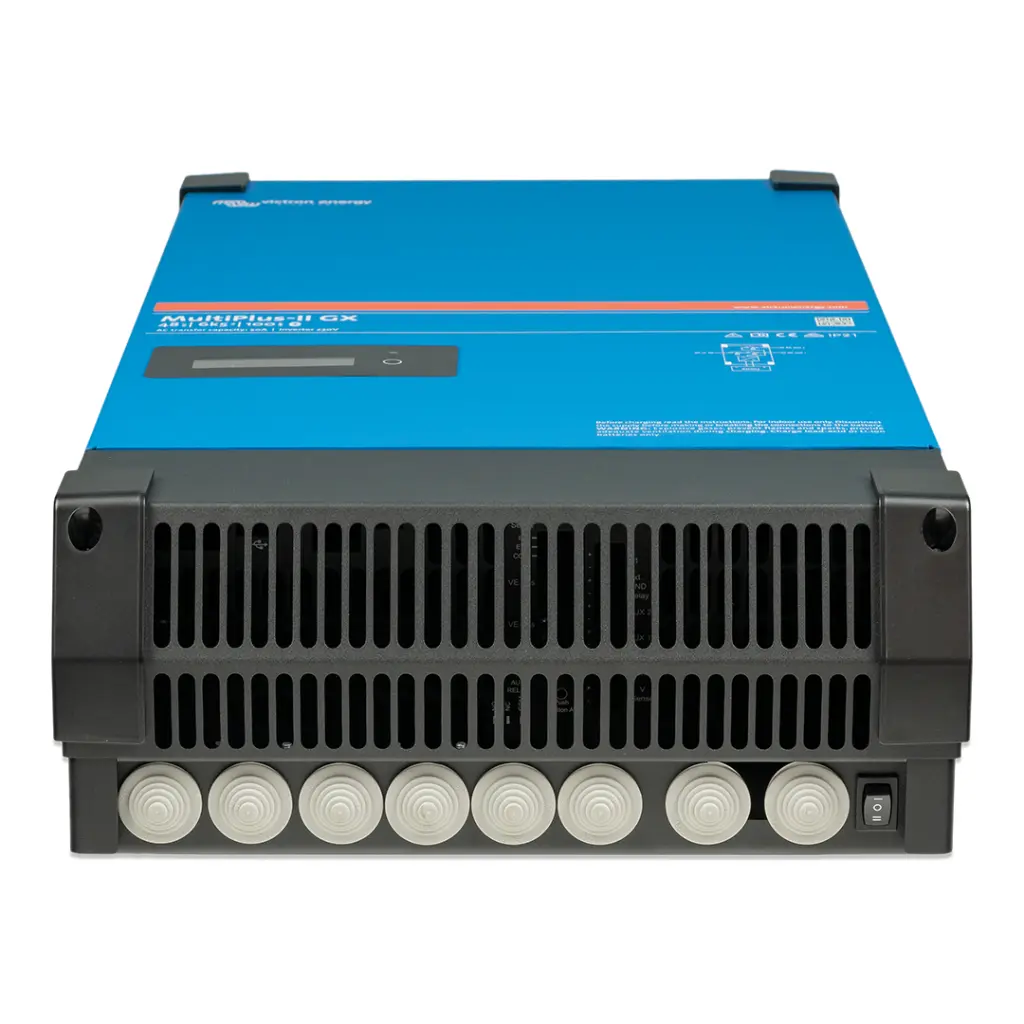

Victron 48/6k5/100-50 230V GX MultiPlus-II
Victron 48/6k5/100-50 230V GX MultiPlus-II
- 230 V inverter output
- 100 A battery charger
- 50 A transfer switch
- Suitable for 48 V systems
- Built-in GX device
- PowerControl
- PowerAssist
- UPS functionality
- Dual AC outputs
- Parallel capability
- Three-phase capability
- Adaptive 4-stage charging
- ESS compatibility
- Programmable relay
- VE.Bus communication
- AES mode
- Search mode
- Temperature compensation
- Anti-islanding
- Multi-battery chemistry support
| Feature | MultiPlus-II (Standard) | MultiPlus-II GX |
| Integrated Display | No | Yes (2 x 16 LCD) |
| Built-in Wi-Fi/Ethernet | No | Yes |
| Direct BMS-Can Port | No | Yes |
| Remote Monitoring | Requires external GX | Built-in |
| Best For | Parallel/Multi-unit builds | Clean, single-unit installs |
Where to use it
The Victron MultiPlus-II 48/5000/70-50 GX is the ultimate all-in-one powerhouse for 48 V energy systems, combining a 6kW pure sine wave inverter, a high-capacity 100 A battery charger, and an integrated GX device for professional-grade system management. This sophisticated unit is designed to be the heart of any high-end off-grid home, large RV, or marine power system, offering seamless PowerControl and PowerAssist technology to prevent source overloading while providing an uninterruptible power supply.
With built-in Wi-Fi, Ethernet, and various communication ports, it allows for instant remote monitoring and control via the Victron Remote Management (VRM) portal without the need for additional hardware, making it a streamlined and reliable choice for modern energy storage and backup applications.
Dimensions
| Width | 320mm |
| Height | 644 mm |
| Depth | 150 mm |
| Weight | 29 kg |
Safety features
- Galvanic isolation between battery and AC circuits prevents dangerous ground loops and enhances system safety
- Comprehensive electronic protection against output short circuits and power overloads to prevent hardware damage
- Integrated thermal sensors protect the unit from overheating with fan-assisted cooling for high-load reliability
- Advanced battery monitoring prevents damage by shutting down the system during low or high voltage events
- Internal protection against 230V AC back-feeding on the inverter output ensures safe electrical operation
- Certified to international safety standards including EN-IEC 60335 and EN-IEC 62109 for reliable residential and industrial use
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
