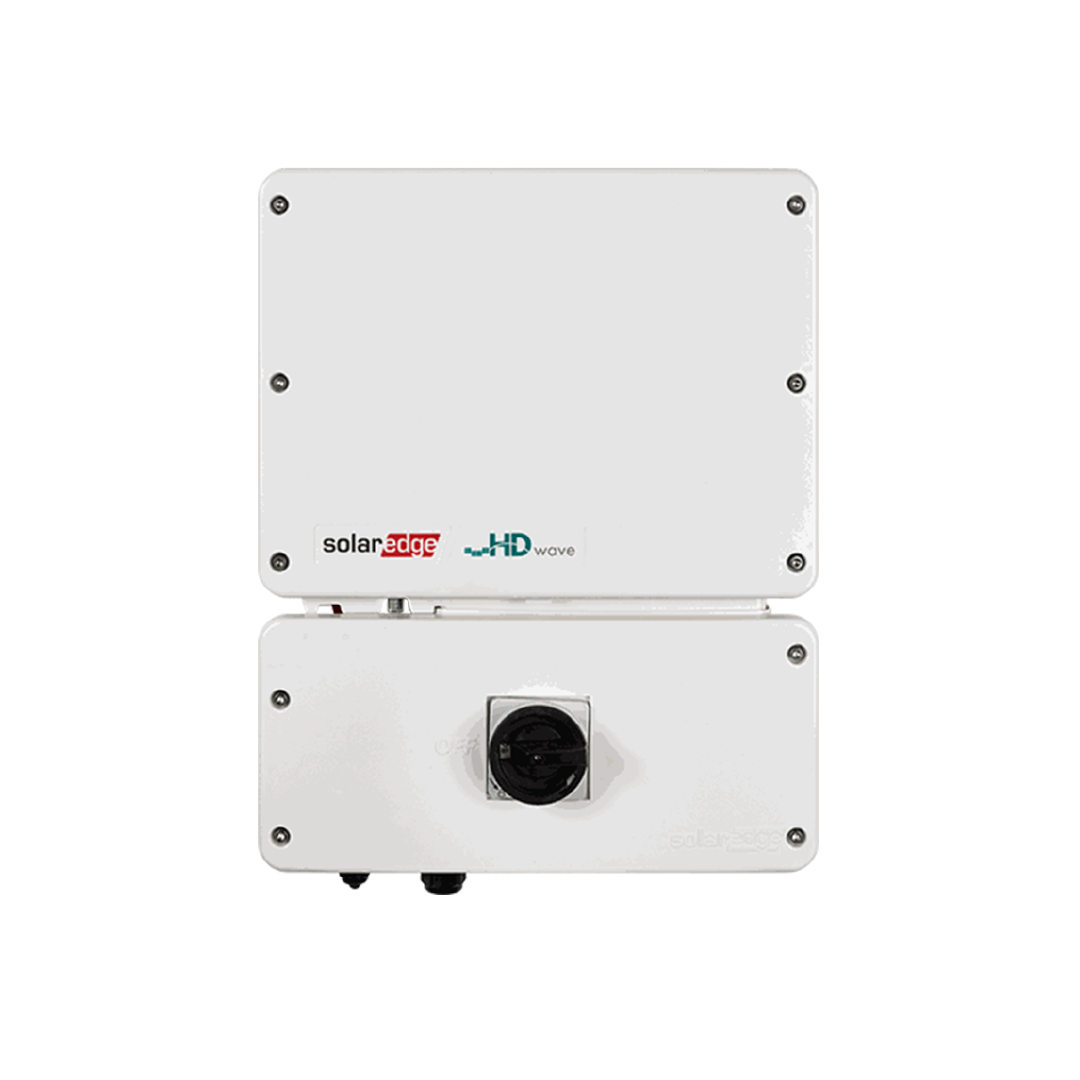

SolarEdge single phase inverters:
SolarEdge’s latest generation of single phase inverters are designed using a novel power conversion technology that is based on a distributed switching and powerful DSP processing. The inverter is able to synthesize a clean sine wave that leads to a dramatic reduction in the magnetics and heavy cooling elements. The result is an even smaller and lighter inverter for simplified shipping and storing, and easy one-person installation. The record-breaking 99% efficiency allows more energy production for an improved ROI.
The SolarEdge single phase inverter is specifically designed to work with the SolarEdge power optimisers. Because MPPT and voltage management are handled separately for each panel by the power optimiser, the inverter is only responsible for DC to AC conversion. Consequently, it is a simpler, more cost effective, more reliable solar inverter with a standard 12-year warranty, extendable to 20 or 25 years. The fixed string voltage ensures operation at the highest efficiency at all times independent of string length and temperature.
In addition to its functionality as a DC-optimised PV inverter, the single phase inverter also manages battery and system energy as part of SolarEdge’s battery storage solution. SolarEdge single phase inverters now have a smart new commissioning method. Inverter commissioning is done directly through a smartphone using the intuitive SetApp mobile application. Take your inverter commissioning to the next level. Learn more about SetApp here
Features:
- Specifically designed to work with SolarEdge power optimisers
- 2.5kW to 10kW range
- 99% weighted efficiency (33%-50% less losses than the market standard)
- Small, lightweight, and easy to install
- Up to 155% oversizing allowed
- High reliability due to lower heat dissipation
- Advanced safety features, including integrated arc fault protection
- Quick and easy inverter commissioning directly from your smartphone using the SolarEdge SetApp
- Standard 12-year warranty (extendable to 20 or 25 years)
- Built-in panel-level monitoring
- Internet communication via built-in Ethernet and Wi-Fi* connectivity (or optional ZigBee® or cellular plug-ins)
- Manages PV production, battery storage, and smart energy products
- IP65; suitable for outdoor and indoor installations* Built-in Wi-Fi is supported by SetApp-enabled inverters only. Antenna is included.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about SolarEdge:
Founded in 2006, SolarEdge Technologies is headquartered in Israel and has offices in ten other countries around the world including Australia. Today SolarEdge is undoubtedly the global leader in the DC power optimizer market and is traded on the NASDAQ. The company has invented a ground-breaking type of module-level electronics for solar photovoltaic (PV) harvesting and monitoring systems for all shapes and sizes of solar installations, from residential to commercial and utility-scale plants. SolarEdge’s stand-out product solution is their optimized inverter system which maximizes and improves power output at each individual PV panel. Together with SolarEdge’s cloud-based monitoring platform, the performance of your solar system is trackable with ease.
Since beginning commercial distribution in 2010, over 2.5 GW of SolarEdge products have been installed in solar PV arrays in over 90 countries around the world. The company has won several awards for its innovative products, including an SPP (Solar Power Portal) Award in 2015 and the Solar Industry Award in 2014. Manufacturing mainly takes place through a partnership with Flextronics, a global electronics manufacturing services provider. Another exciting partnership was announced in late 2015 when SolarEdge products became compatible with the Tesla Powerwall battery system. SolarEdge offers impressive warranties and excellent customer support through its Australian office.
