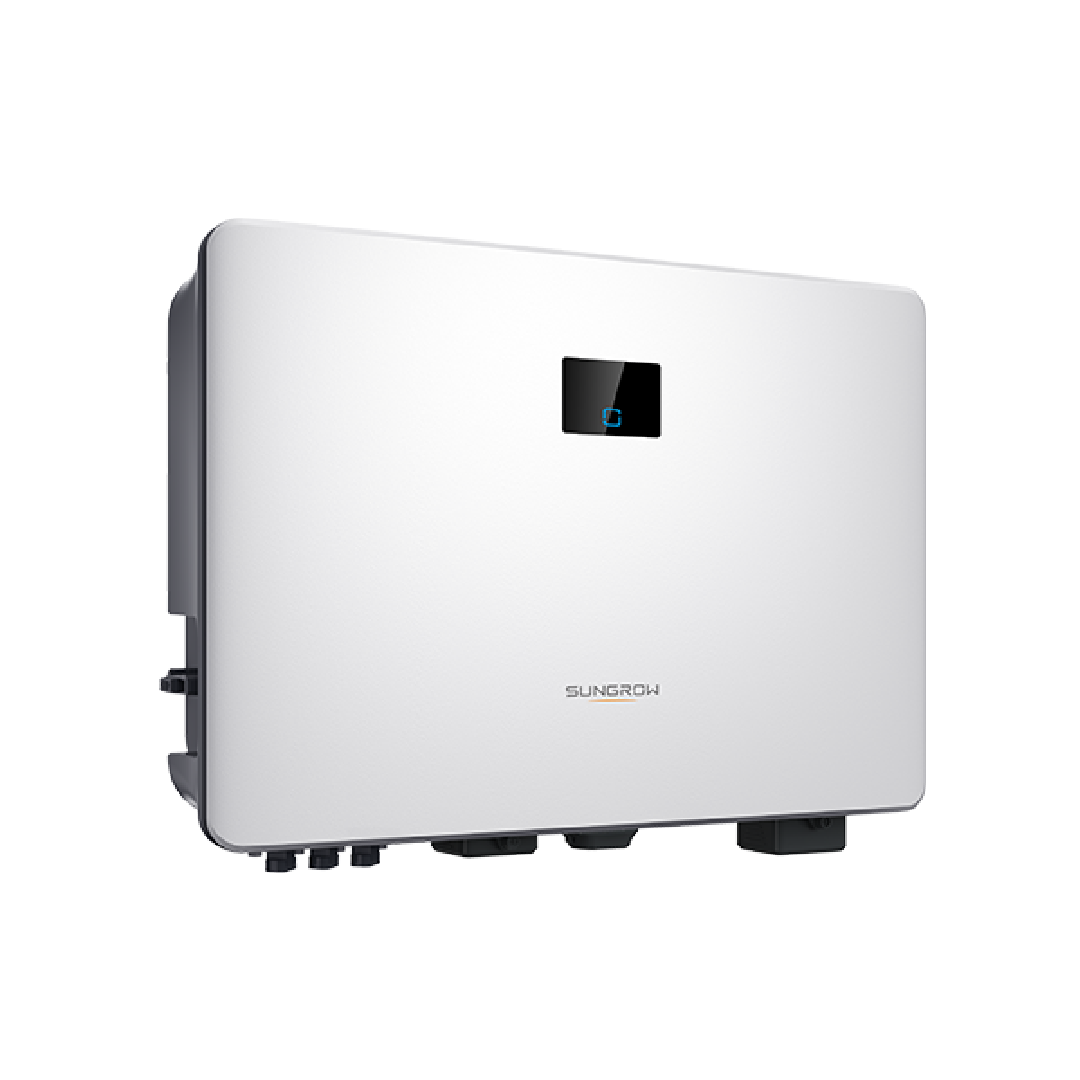

Sungrow 10kW RS-ADA Triple-MPPT Solar Inverter

Sungrow 10kW RS-ADA Triple-MPPT Solar Inverter

​Features:

• Triple-MPPT Single-Phase String Inverter

• IP65 Rated with Built-in WiFi
• 10-year Parts & Labour Warranty
• 19kg Compact Design with Plug-and-Play Installation
• Fast Commissioning via App
• 24hr Real-Time Loads Monitoring via App or Web
• Quick Arc Fault Circuit Interrupter
• Built-in Type II DC&AC Surge Protection Device
• Higher Yield with a Maximum Efficiency of 97.8%
• Compatible with Bifacial & High-Power Solar Modules

• Flexible PV String Configurations​

Sungrow's RS range of inverters presents a highly suitable, efficient and cost-effective solar component solution for residential homes or smaller commercial properties.

The RS series are lightweight, transformerless, string inverters with a wide MPPT voltage range and Wi-Fi communications included. Like most modern string inverters, the Sungrow residential inverters are cooled via passive cooling using a large rear heat sink. Due to the efficient design, no power de-rating is specified to occur below 45°C ambient temperature, which is impressive for a passively cooled inverter. This range of inverters include a smart LED panel, offering maximum inverter control. Easily check daily energy yield, instantaneous AC power or the working state of the inverter.

The Sungrow SG10RS-ADA is a single-phase inverter solution, with 10kW of inverter capacity. This model offers three Multiple Power Point Tracker or MPPT, offering greater panel layout flexibility and allowing for connection to three independent solar arrays. This inverter allows for panels to be installed facing North, East and West, maximising the solar generation and covering the property if one direction is less suitable day-to-day. In combination with low start-up power requirements, the SG8RS-ADA can start solar production earlier and continue to produce later into the evening than its residential inverter counterparts.

Sungrow's monitoring solutions allow you to centrally manage your solar power plant. Automated reports, multidimensional analysis, and accurate positioning of faults with quick troubleshooting allow you to quickly resolve faults and avoid downtimes. Certified data security and redundant data storage over the product lifecycle ensure that your investment is securely protected. Sungrow’s iSolarCloud monitoring program offers superior system monitoring from anywhere in the world and is available via the web or through the iSolarCloud app.
