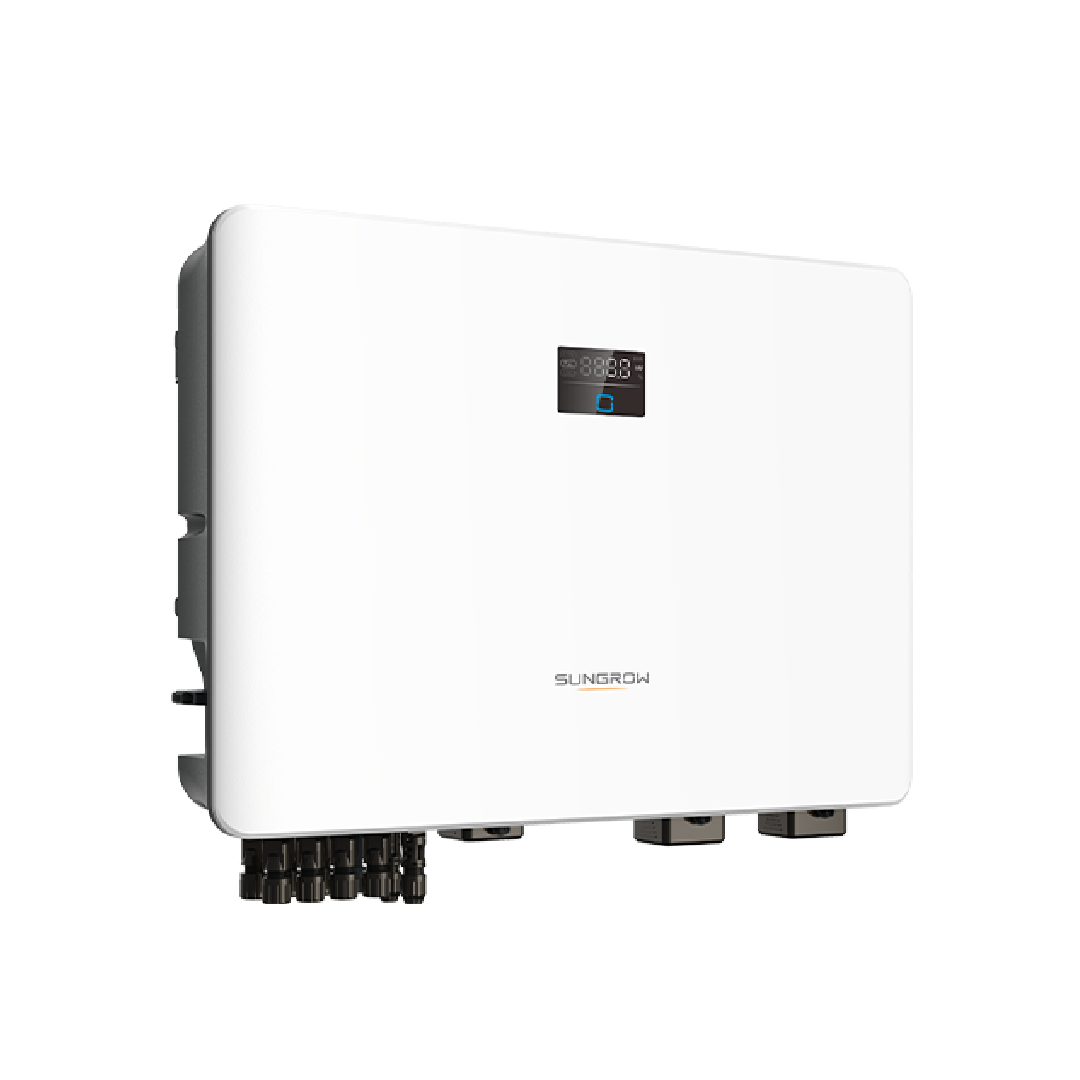

Sungrow SH10RS Solar Inverter
|
|
Input (DC) |
|
Recommended Maximum PV Input Power | 20,000 Wp |
Maximum PV Input Voltage | 600 V |
Minimum PV Input Voltage / Startup Input Voltage | 40V / 50V |
Rated PV Input Voltage | 360 V |
MPP Voltage Range | 40 - 560V |
No. of Independent MPP Inputs | 4
|
No. of PV Strings Per MPPT | 1/1/1/1 |
Maximum PV Input Current | 64A (16A / 16A / 16A / 16A) |
Maximum DC Short-Circuit Current | 80A (20A / 20A / 20A / 20A) |
Battery Data |
|
Battery Type | Lithium-Ion Battery |
Battery Voltage | 80V - 460V |
Maximum Charge/Discharge Current | 50A / 50A |
Maximum Charge/Discharge Power | 10,000W / 10,000W |
Input / Output (AC) |
|
Maximum AC Power from Grid | 14,500 VA |
Rated AC Output Power | 9999 W |
Maximum AC Output Apparent Power | 9999 VA |
Maximum AC Output Current | 45.5 A |
Rated AC Voltage | 1 / N / PE, 220 V / 230 V / 240V
|
AC Voltage Range | 154V – 276 V |
Rated Grid Frequency | 50 Hz / 60 Hz |
Grid Frequency Range | 45 – 55 Hz / 55 – 65 Hz |
Harmonic (THD) | < 3 % (at rated power) |
Power Factor at Rated Power / Adjustable Power Factor | > 0.99 / 0.8 leading - 0.8 lagging |
Feed-in Phases / Connection Phases | 1/1 |
Backup Data (On-Grid Mode) |
|
Maximum Output Power for Backup Load | 14,500 W |
Maximum Output Current for Backup Load | 63 A |
Backup Data (Off-Grid Mode) |
|
Rated Voltage | 1 / N / PE, 220 V / 230 V / 240 V ( ± 2 % )
|
Rated Frequency | 50 Hz / 60 Hz ( ± 0.2 % )
|
THDV (At Linear Load)
| < 2 % |
Backup Switch Time | < 10 ms |
Rated Output Power | 10,000 W / 10,000 VA
|
Peak Output Power | 13,680 VA,10 s |
Efficiency |
|
Maximum Efficiency | 97.5% |
Protection & Function |
|
Grid Monitoring | Yes |
DC Reverse Polarity Protection | Yes |
AC Short-Circuit Protection | Yes |
Leakage Current Protection | Yes |
DC Switch (Solar) | Yes |
Surge Protection | DC type II / AC type II |
PID Zero | Yes |
Battery Input Reverse Polarity Protection | Yes |
General Data | |
Dimensions | 605 x 435 x 181mm |
Weight | 29kg |
Mounting Method | Wall-mounting bracket |
Topology (Solar / Battery) | Transformerless / Transformerless |
Degree of Protection | IP65 |
Operating Ambient Temperature | -25°C to +60°C |
Allowable Relative Humidity Range (Non-Condensing) | 0 - 100% |
Cooling Method | Natural convection |
Maximum Operating Altitude | 4000m |
Display | LED digital display & LED indicator |
Communication | WLAN / Ethernet / RS485 / CAN |
DI / DO | DI*4 / DO*2 / DRM0 |
DC Connection Type | MC4 (PV, Max.6mm²) / Plug and play connector (battery, Max.10mm²)
|
AC Connection Type | Plug and play connector (Max.16mm²) |
Grid Compliance | IEC 62109-1, IEC 62109-2, IEC 62477-1,IEC61000-6-1/-2/-3/-4, IEC62920, EN55011,CISPR 11,AS/NZS 4777.2:2020, NRS 097
|
Country of Manufacture | China |
