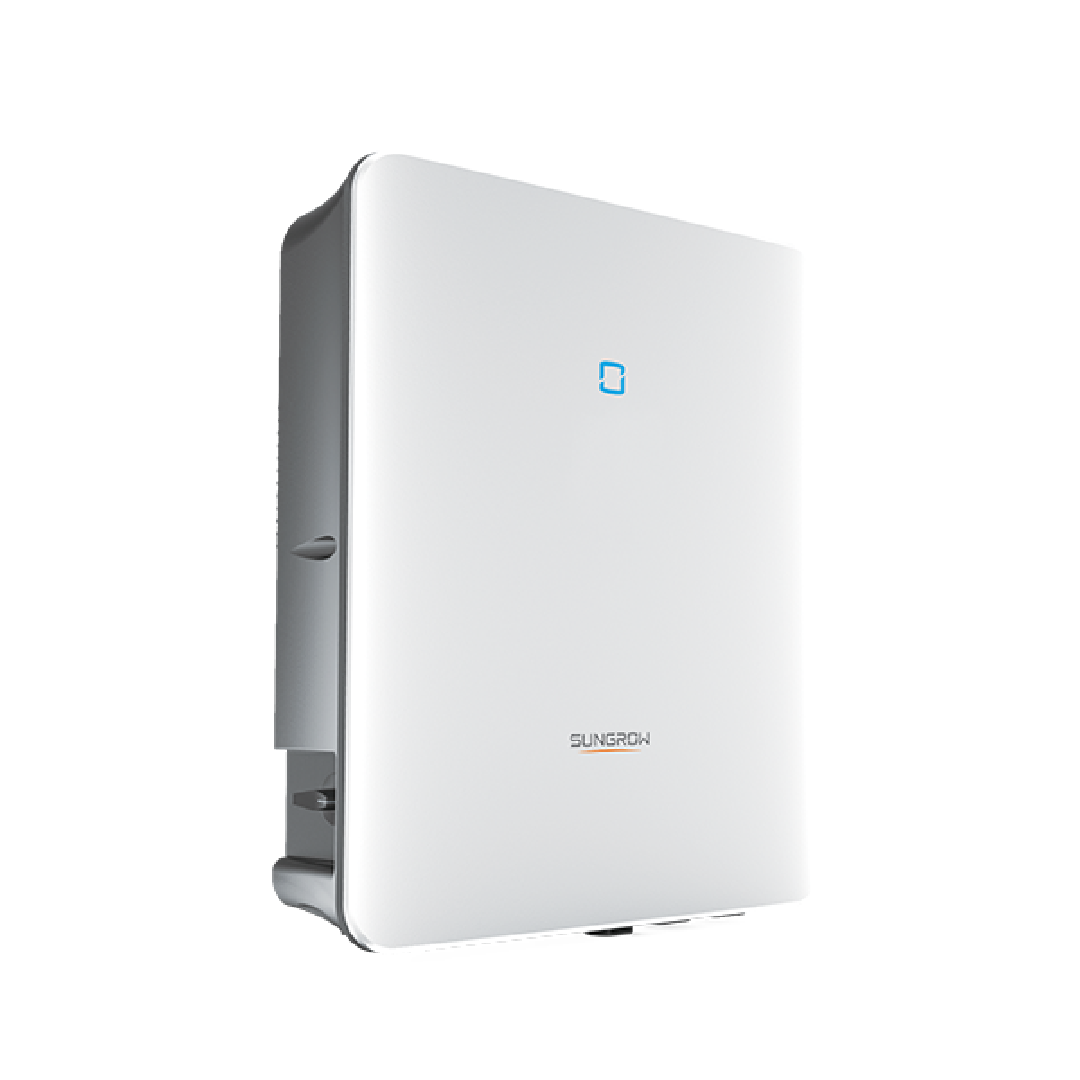

Input (DC)
| SH15T | SH20T | SH25T |
Max. PV input power
| 30000 Wp
| 40000 Wp | 50000 Wp |
Max. PV input voltage
| 1000 V
| 1000 V | 1000 V |
Min. PV input voltage / Startup input voltage
| 150 V / 180 V
| 150 V / 180 V | 150 V / 180 V |
Rated PV input voltage
| 600 V
| 600 V | 600 V |
MPPT operating voltage range
| 150 V - 950 V
| 150 V - 950 V | 150 V - 950 V |
Number of independent MPP trackers
| 3
| 3 | 3 |
Number of PV strings per MPPT
| 2
| 2 | 1 |
Max. PV input current
| 80 A (32 A)
| 80 A (32 A) | 80 A (16 A) |
Max. DC short-circuit current
| 100 A (40 A)
| 100 A (40 A) | 100 A (20 A) |
Max. current for input connector
| 30 A
| 30 A | 30 A |
Battery Data
|
|
|
|
Battery type
| Li-ion battery
| Li-ion battery | Li-ion battery |
Battery voltage range
| 100 V - 700 V
| 100 V - 700 V | 100 V - 700 A |
Max. charge / discharge current
| 50 A / 50 A
| 50 A / 50 A | 50 A / 50 A |
Max. charge / discharge power
| 30000 W / 15000 W
| 30000 W / 20000 W | 30000 W / 25000 W |
Input and Output (AC)
|
|
|
|
Max. AC power from grid
| 43000 VA
| 43000 VA | 43000 VA |
Rated AC output power
| 15000 W | 20000 W | 25000 W |
Max. AC output apparent power
| 15000 VA | 20000 VA | 25000 VA |
Max. AC output current
| 22.8 A
| 30.4 A | 37.9 A |
Rated AC voltage
| 3 / N / PE, 220 V / 380 V
| 3 / N / PE, 230 V / 400 V | 3 / N / PE, 240 V / 415 V |
AC voltage range
| 270 V - 480 V
| 270 V - 480 V | 270 V -480 V |
Rated grid frequency
| 50 Hz / 60 Hz
| 50 Hz / 60 Hz | 50 Hz / 60 Hz |
Harmonic (THD)
| < 3 % (of rated power)
| < 3 % (of rated power) | < 3 % (of rated power) |
Power factor at rated power / Adjustable power factor
| > 0.99 / 0.8 leading to 0.8 lagging
| > 0.99 / 0.8 leading to 0.8 lagging | > 0.99 / 0.8 leading to 0.8 lagging |
Feed-in phases / connection phases
| 3 / 3-N-PE
| 3 / 3-N-PE | 3 / 3-N-PE |
Backup Data (On Grid Mode)
|
|
|
|
Max. output power for backup load
| 43000 W
| 43000 W | 43000 W |
Max. output current for backup load
| 3 * 63 A
| 3 * 63 A | 3 * 63 A |
Backup Data (Off Grid Mode)
|
|
|
|
Rated voltage
| 3 / N / PE, 220 / 380 V
| 3 / N / PE, 230 / 400 V | 3 / N / PE, 240 / 415 V |
Rated frequency
| 50 Hz / 60 Hz
| 50 Hz / 60 Hz | 50 Hz / 60 Hz |
THDV (@Linear load)
| < 2 %
| < 2 % | < 2 % |
Backup switch time
| < 10 ms
| < 10 ms | < 10 ms |
Rated output power | 15000 W / 15000 VA | 20000 W / 20000 VA | 25000 W / 25000 VA |
Peak output power | 25500 W / 25500 VA , 10 s | 32000 W / 32000 VA , 10 s | 36500 W / 36500 VA , 10s |
Efficiency |
|
|
|
Max. efficiency | 98.1 % | 98.1 % | 98.2 % |
Protection and Function |
|
|
|
Grid monitoring | Yes | Yes | Yes |
DC reverse polarity protection | Yes | Yes | Yes |
AC short-circuit protection | Yes | Yes | Yes |
Leakage current protection | Yes | Yes | Yes |
DC switch (solar) | Yes | Yes | Yes |
Surge protection | DC Type II / AC Type II | DC Type II / AC Type II | DC Type II / AC Type II |
PID zero | Yes | Yes | Yes |
Battery input reverse polarity protection | Yes | Yes | Yes |
General Data |
|
|
|
Topology (solar / battery) | Transformerless / Transformerless | Transformerless / Transformerless | Transformerless / Transformerless |
Degree of protection | IP65 | IP65 | IP65 |
Protective class | Protective class I | Protective class I | Protective class I |
Overvoltage category | III[AC] ; II[PV] ; [BATTARY] | III[AC] ; II[PV] ; [BATTARY] | III[AC] ; II[PV] ; [BATTARY] |
Active anti-islanding method | Frequency shift | Frequency shift | Frequency shift |
Dimensions (W * H * D) | 620 mm * 480 mm * 245 mm | 620 mm * 480 mm * 245 mm | 620 mm * 480 mm * 245 mm |
Weight | 38 kg | 38 kg | 40 kg |
Mounting method | Wall-mounting bracket | Wall-mounting bracket | Wall-mounting bracket |
Operating ambient temperature range | -25°c - 60°c | -25°c - 60°c | -25°c - 60°c |
Allowable relative humidity range (non-condensing) | 0 % - 100 % | 0 % - 100 % | 0 % - 100 % |
Cooling method | Natural convection | Natural convection | Fan cooling |
Max. operating altitude | 2000 m | 2000 m | 2000 m |
Noise (typical) | 35 dB (A) | 35 dB (A) | 50 dB (A) |
Display | LED | LED | LED |
Communication | RS485, WLAN, Ethernet, CAN | RS485, WLAN, Ethernet, CAN | RS485, WLAN, Ethernet, CAN |
DI / DO | DI * 4 / DO * 2 / DRM0 | DI * 4 / DO * 2 / DRM0 | DI * 4 / DO * 2 / DRM0 |
DC connection type | Plug and play connector (PV, Max.6mm2 / battery, Max.10mm2) | Plug and play connector (PV, Max.6mm2 / battery, Max.10mm2) | Plug and play connector (PV, Max.6mm2 / battery, Max.10mm2) |
AC connection type | Plug and play connector (Max.16mm2) | Plug and play connector (Max.16mm2) | Plug and play connector (Max.16mm2) |
Compliance | IEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11, VDE-E-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21 | IEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11, VDE-E-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21 | IEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11, VDE-E-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21 |
Country of manufacture | China | China | China |
