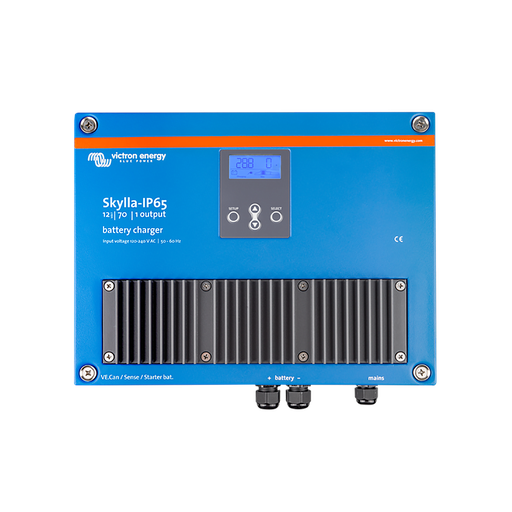

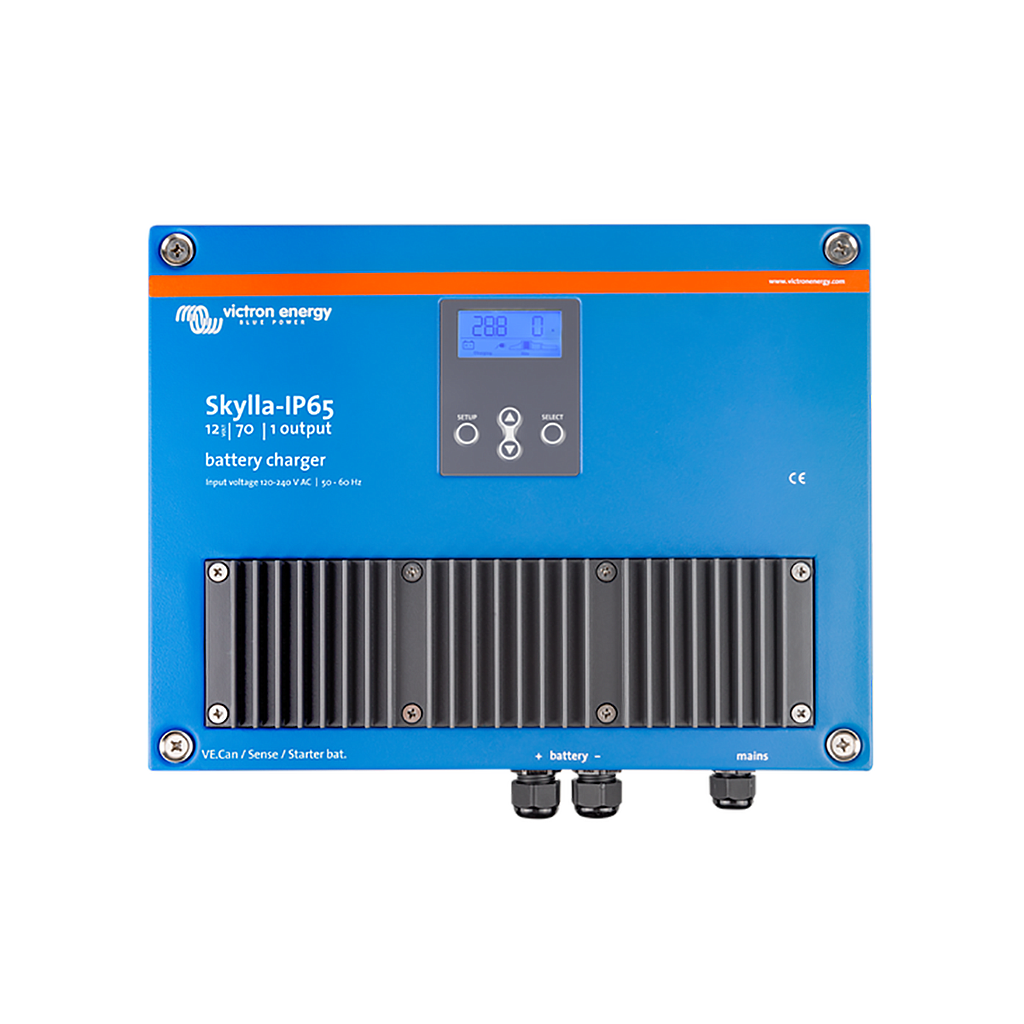

Victron Skylla-IP65 Battery Charger
Features:
- Battery Charger
- 12V 70A
- 120-230V Input
- 1+1 Outputs
- Battery Safe Mode
- Remote Control
- Automatic Equalisation
A powerful, waterproof and intelligent battery charger with a 7-stage adaptive charge algorithm, suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.
The wide range universal input voltage adds flexibility to the installation, ensuring that the charger will maintain its full output power no matter where it is located in the world.
The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigours of an adverse environment: heat, humidity and salt air
More Product Features:
Skylla-IP65 (1+1) - Two Outputs to Charge Two Battery Banks:
The Skylla-IP65 (1+1) features 2 isolated outputs. The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.
IP65 Protection:
Steel epoxy powder-coated case to withstand the rigours of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
LCD Display:
For status monitoring and to easily adapt the charge algorithm to a particular battery and its conditions of use
CAN-Bus Interface (NMEA2000):
To connect to a CAN-bus network, to a Skylla-i Control panel or to the Color Control digital display.
Synchronised Parallel Operation:
Several chargers can be connected in parallel and synchronised with the help of the CAN-bus interface. This is achieved by simply interconnecting the chargers with RJ45 UTP cables.
Variable Absorption Time - The Right Amount of Charge for a Lead-Acid Battery:
When only shallow discharges occur the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
BatterySafe Mode - Preventing Damage Due to Excessive Gassing:
If, in order to charge a battery quickly, a high charge current in combination with a high absorption voltage has been chosen, the Skylla-IP65 will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
Storage Mode - Less Maintenance and Ageing When the Battery is Not in Use:
The Storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (26,4 V for 24 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘refresh’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Temperature Compensation - To Increase Battery Life:
Every Skylla-IP65 comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed lead-acid batteries and/or when important fluctuations in battery temperature are expected.
Battery Voltage Sense:
In order to compensate for voltage loss due to cable resistance, the Skylla-IP65 is provided with a voltage sense facility so that the battery always receives the correct charge voltage.
Can be Used as a Power Supply:
As a result of the excellent control circuit, the Skylla-IP65 can be used as a power supply with perfectly stabilized output voltage if batteries or large buffer capacitors are not available.
Li-Ion (LiFePO4) Ready:
Simple charger on-off control can be implemented by connecting a relay or open collector opto coupler output from a Li-Ion BMS to the remote control port of the charger. Alternatively, complete control of voltage and current can be achieved by connecting to the CAN-bus port.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
