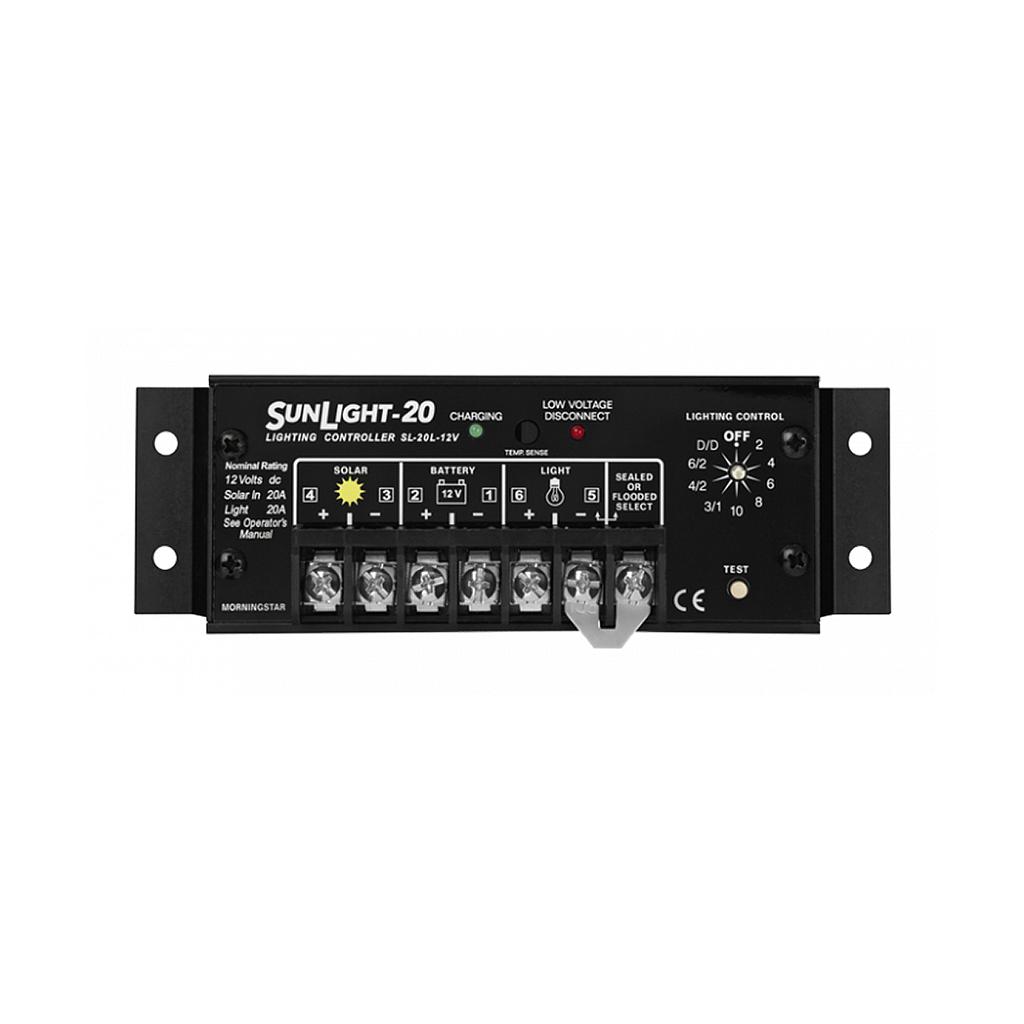

Morningstar SunLight PWM 20Amp/12V/LVD
Morningstar sunlight pulse width modulation solar controller • 12v 20amp with low volt disconnect
Morningstar SunLight Controller:
The Morningstar SunLight is the world's leading solar lighting controller for street and pathway lighting, parking areas, bus stations and signage.
Sunlight technology provides: Exceptional reliability, PWM Battery Charging, consistent High Quality.
Morningstar’s advanced SunLight solar lighting controller combines the SunSaver design with
a micro controller for automatic lighting control functions.
Features:
- Provides 10 lighting options – User adjustable for 2 to 10 hours on or for on all night.
- Unique ON/OFF/ON settings conserve energy and turns light on again for 1 or 2 hours before sunrise. Timer accuracy is within 2 seconds.
- Easy to install. To confirm correct installation, test button turns light on during the day and LED indicates selected lighting option.
- Rugged industrial design – Epoxy encapsulated electronics, marine rated terminals and anodized aluminium case.
- Microcontroller digital accuracy- Fully automatic operation
- Ten field adjustable lighting control options
- Special on/off/on lighting functions
- Manual test capability
- LVD override protection
- Detects day and night using the PV array
- Suitable for all 12/24 Vdc lamps
- Sealed/Flooded battery select
- Temperature compensation
- Parallel with a SunSaver for 40 amps solar
- Includes SunSaver battery charging circuit
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Morningstar:
With 30 years of experience and more than 4 million products in over 100 countries, Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure. “Others survive harsh conditions. We THRIVE in them.”
