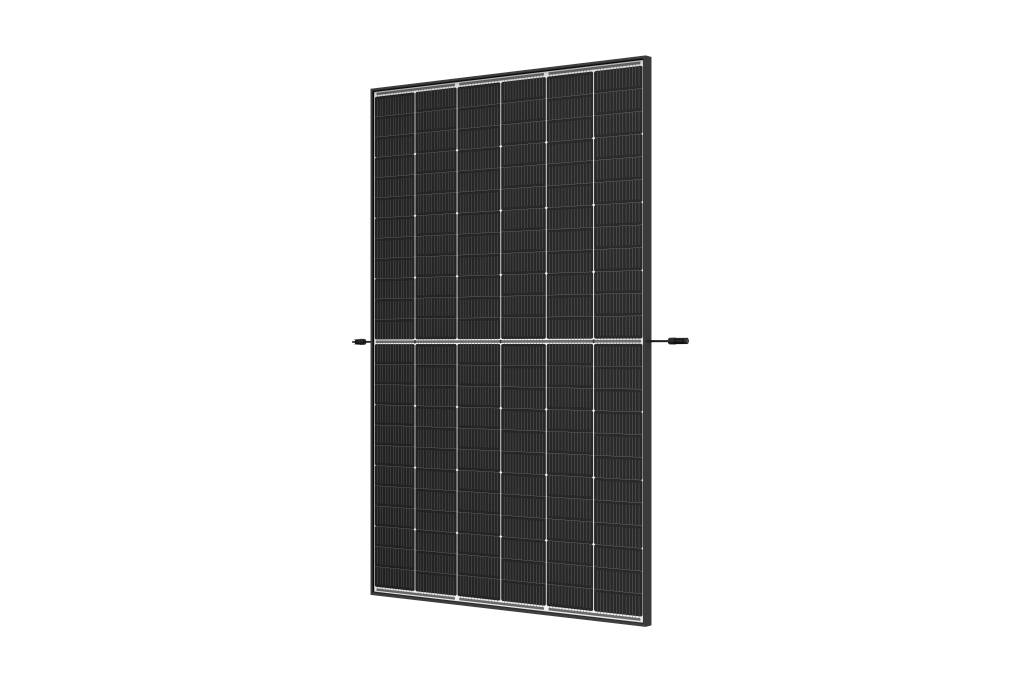

Trina 445W Vertex S + Dual Glass N Type Solar Panel

https://www.springers.com.au/web/image/product.template/17634/image_1920?unique=471b308

$ 419.00 - Inc GST 419.0 in stock AUD $ 419.00

$ 419.00

Not Available For Sale

Small in size, bigger on power
• Up to 440W, 22.0% module efficiency with high density interconnect technology
• Multi-busbar technology for better light trapping, lower series resistance, improved current collection and enhanced reliability
• Reduce installation cost with higher power bin and effciency
• Boost performance in warm weather with low temperature coeffcient and operating temperature

Dual-glass Design, more secure and sustainable
• Upgraded dual glass of Vertex S, less prone to micro-cracks and scratches on the back during installation
• Double-glass + innovative non-destructive cutting for improved mechanical resistance and strength

Ultra-low Degradation, longer warranty, higher output
• Fire rating A and C, salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature, humidity area and harsh environment

Universal solution for residential and C&I rooftops
• First-year degradation 1% and annual degradation at 0.4%
• 25 years product warranty and 30 years power warranty
• Easy for integration, designed for compatibility with existing mainstream inverters and diverse mounting systems
• Perfect size and low weight for handling and installation
• Most valuable solution on low load capacity rooftops (weight similar to backsheet version)
• Mechanical performance up to 5400 Pa positive load and 4000 Pa negative load

    This combination does not exist.

    Contact Us
    TRINASOLAR
    TSM445
    Solar Panels , Fixed Panels

    Trina 445W Vertex S + Dual Glass N Type Solar Panel

    The TRINA VERTEX S+ N-Type Mono Dual Glass 445W 144-Cell Black 30mm EVO2 Landscape module delivers high efficiency and excellent performance. The 144 half-cut cell design maximizes module efficiency to up to 19.8%, while the N-type solar cell technology significantly improves power output. With an impressive 25-year warranty, this module is an ideal choice for long-term reliability and energy production.

    Applications

    Marine
    RV's
    Caravans
    Off-Grid Systems
    Tiny Houses
    Cabins

    More about Trina Solar:

    Founded in 1997, Trina Solar is the world’s leading PV and smart energy solution provider. The company engages in PV products R&D, manufacture and sales; PV projects development, EPC, O&M; smart micro-grid and multi-energy complementary systems development and sales, as well as energy cloud-platform operation. In 2019, Trina Solar was rated the World’s Top “Bankable” PV Module Manufacturer by Bloomberg New Energy Finance. Trina Solar won the China Industry Awards in 2018 and became the first PV company to receive this honour. The Company has been ranked as one of the top 3 PV module manufacturing companies in the world.

    Manual_Trina 445W Vertex S + Dual Glass N Type Solar Panel.pdf
    Download
    Warranty_Trina 445W Vertex S + Dual Glass N Type Solar Panel.pdf
    Download
    Datasheet_Trina 445W Vertex S + Dual Glass N Type Solar Panel.pdf
    Download

    Product Specification

    Peak Power Watts-PMAX (Wp)*445
    Maximum Power Voltage-VMPP (V)44.3
    Maximum Power Current-IMPP (A)10.05
    Open Circuit Voltage-VOC (V)52.6
    Short Circuit Current-ISC (A)10.71
    Module Eciency η m (%)22.3
    Maximum Power-PMAX (Wp)339
    Maximum Power Voltage-VMPP (V)41.3
    Maximum Power Current-IMPP (A)8.2
    Open Circuit Voltage-VOC (V)49.8
    Short Circuit Current-ISC (A)8.63
    Solar CellsN type Monocrystalline
    No. of cells144 cells
    Module Dimensions1762×1134×30 mm (69.06×43.15×1.18 inches)
    Weight21.0kg (46.3 lb)
    Front Glass1.6 mm (0.06 inches), High Transmission, AR Coated Heat Strengthened Glass
    Encapsulant materialEVA/POE
    Back Glass1.6mm(0.06 inches), Heat Strengthened Glass
    Frame30mm (0.06 inches) Anodized Aluminium Alloy, Black
    J-BoxIP 68 rated
    CablesPhotovoltaic Technology Cable 4.0mm2 (0.006 inches2),Length: 1100mm/1100mm(43.3/43.3 inches)
    ConnectorStabuli MC4 EVO2 / Trina Solar TS4 Plus / Trina Solar TS4
    Temperature Coecient of PMAX43°C (±2°C)
    Temperature Coecient of VOC- 0.30%/°C
    Temperature Coecient of ISC- 0.24%/°C
    NOCT(Nominal Operating Cell Temperature)0.04%/°C
    Operational Temperature-40~+85ºC
    Maximum System Voltage1500V DC (IEC)
    Max Series Fuse Rating25A
