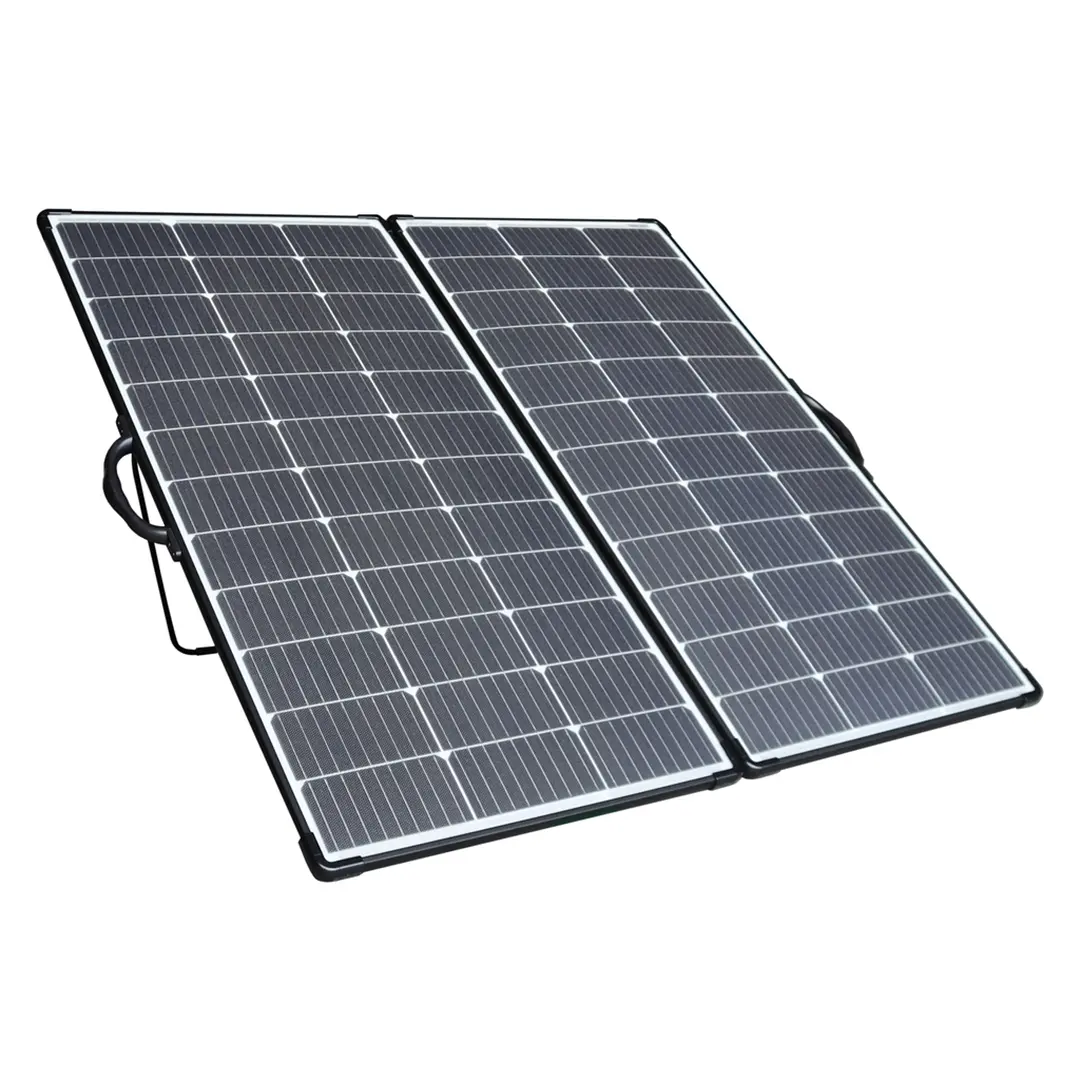

Alvolta Ultra 12V 220W Slim Portable Solarcase
Performance features
- 220 W maximum power output
- 22.8% efficiency rating
- Suitable for 12 V systems
- Suitable for series and parallel configuration
- Compatible with most solar regulator MPPTs*
*Check MPPT spec sheet to ensure VOC is compatible with the solarcase's output voltage.
Solar cell features
- A-grade monocrystalline solar cells
- PVDF cell sheeting for improved protection and resistance against weather
- Fixed solar panel design for improved durability
Frame features
- Anodised aluminium frame
- Black frame and black back sheet for improved aesthetics
- Adjustable legs to achieve an optimum tilt angle
- 6.33kg light-weight design
- Folds into carry case for compact storage
- Saves space in your vehicle - 50 mm thick carry case
- Features sturdy, quick release clasps to keep the solarcase closed
Inclusions
- Padded carry case
- Accessory case
- Weatherproof IP68 rated junction box

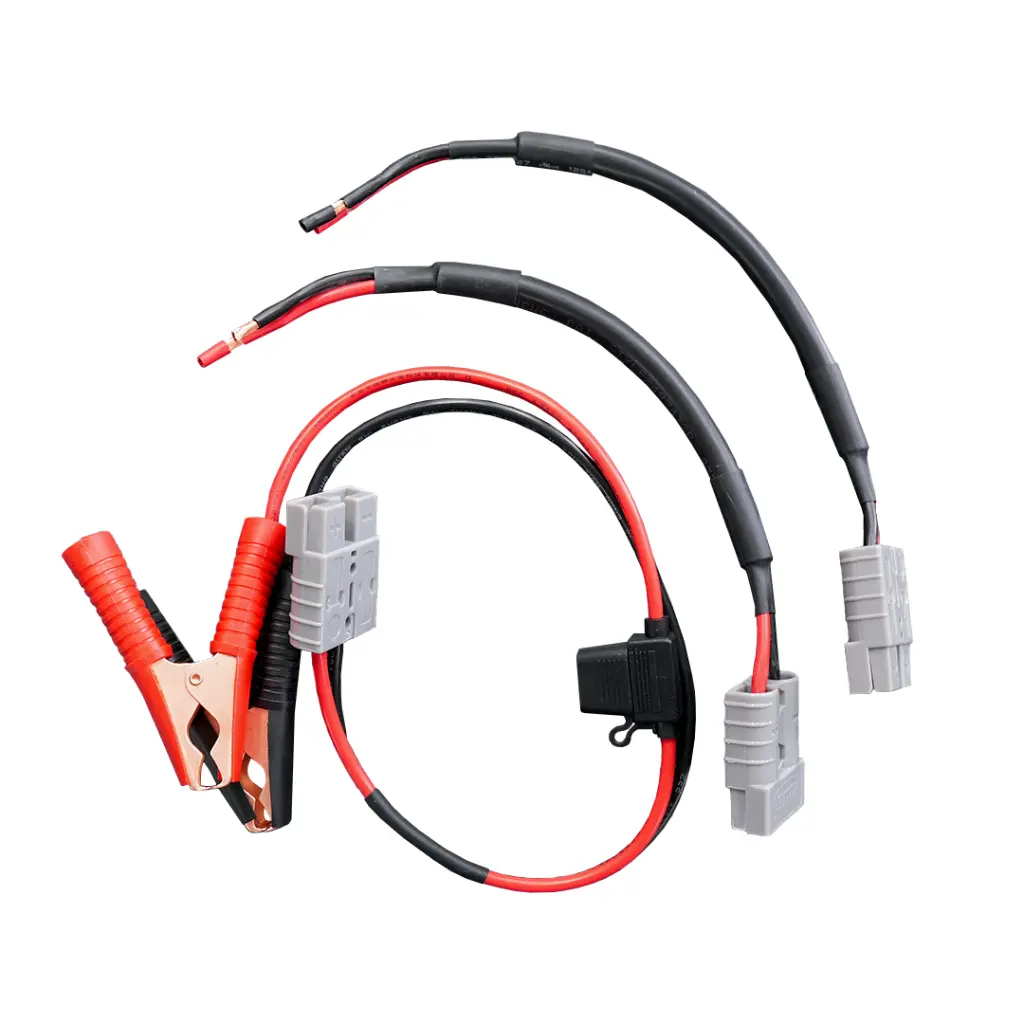

- 10 metres of 6mm2 extension cable with Anderson-type connectors
- Alvolta fused (30A) alligator to Anderson style connector
- x2 Alvolta Anderson to bare 6mm cable
*Doesn't include a solar regulator
Where to use it
Designed to provide extra power whenever you need it. Lightweight and portable, store the Alvolta 12 V 200 W Solarcase in your vehicle and pull it out for a plug and play solution when you need to charge your battery bank.
Ideal for use in 4WD and touring setups, caravans and camper trailers, and RV and motorhome camping.
Don't have enough roof space to mount fixed solar panels? Use a fixed panel portable solar case for reliable power generation, and pack it away when you're charged.
Dimensions
Folded in carry case
| Width | 590 mm |
| Height | 1130 mm |
| Depth | 60 mm |
Folded outside carry case
| Width | 547 mm |
| Height | 1072 mm |
| Depth | 50 mm |
Unfolded
| Width | 1095 mm |
| Height | 1072 mm |
| Depth | 25 mm |
Real-world performance
Patchy sun and cloud conditions
- Tested in May
- Late-Autumn conditions
- Tested from 10am - 2pm
| | Alvolta 220 W Portable Solar Panel | Standard 220 W Portable Solar Panel |
| Output voltage | 19.2 V | 17.8 V |
| Power output | 157 W | 141 W |
| Charge amount | 380 WH | 337 WH |
| Max charge power | 177 W | 155 W |
Safety features and certifications
- 2011 / 65 / EU and amending directive (EU) 2015/863
- EN IEC 62368-1:2020+A11:2020
Warranty
- 5-year warranty
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
