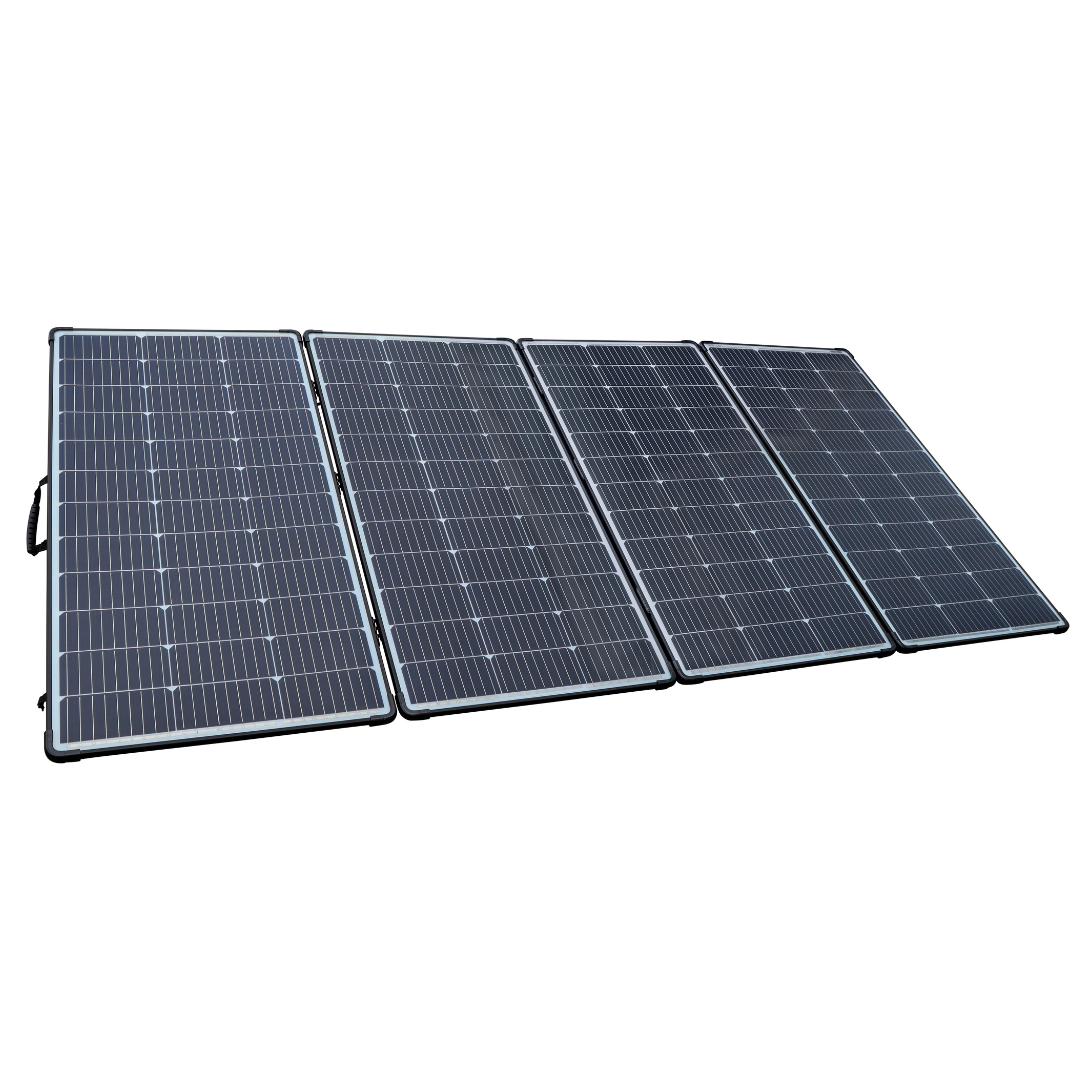

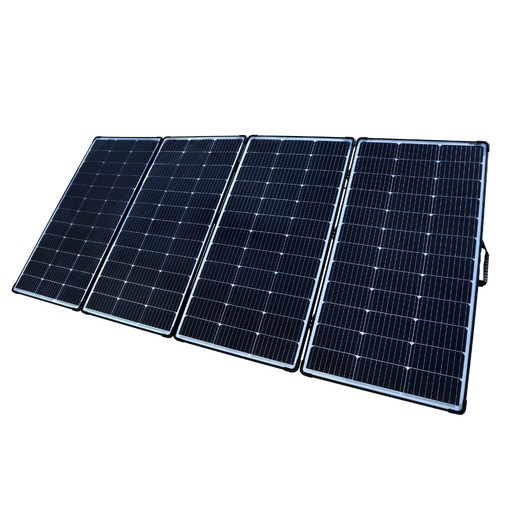

Alvolta Ultra 440W Slim Portable Solarcase

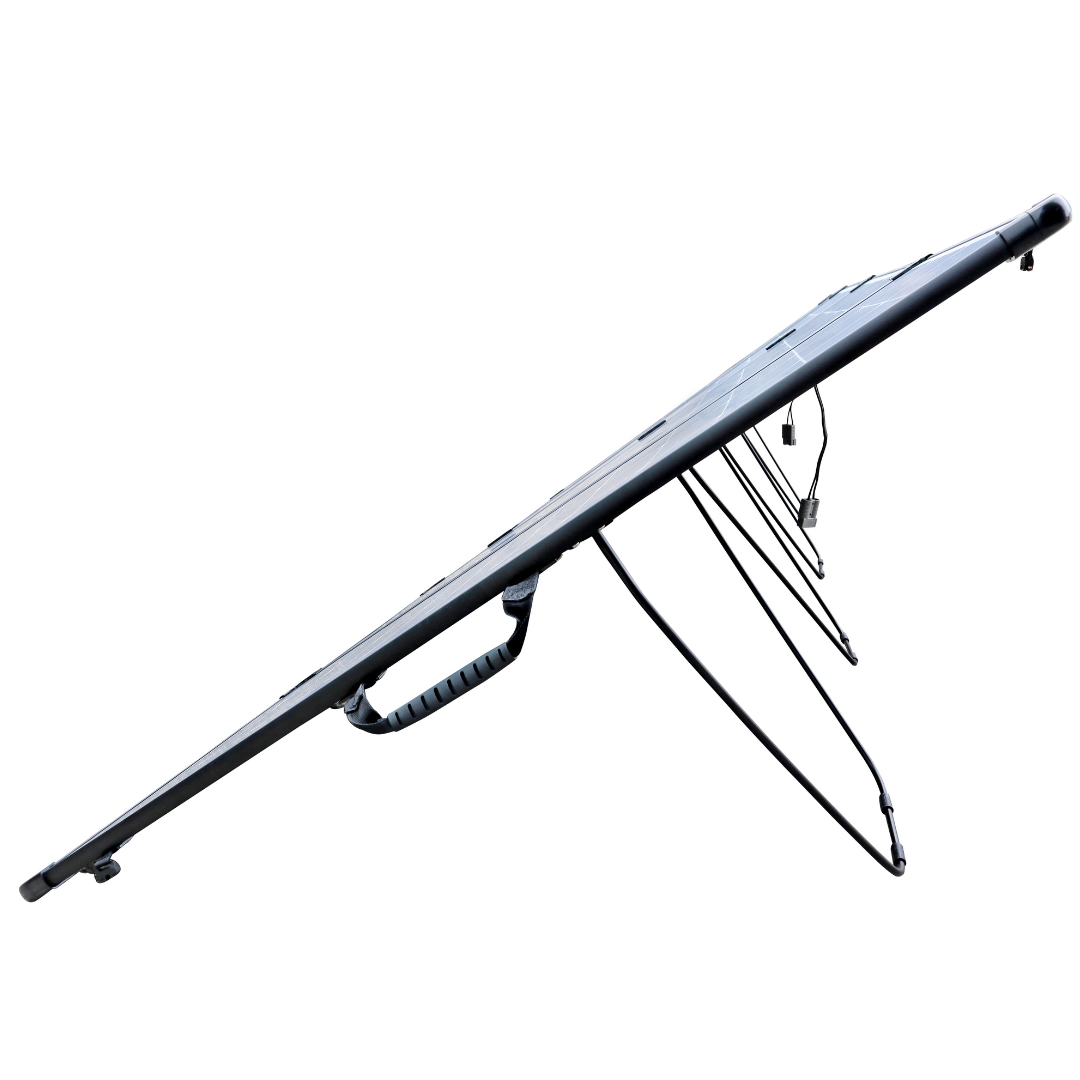

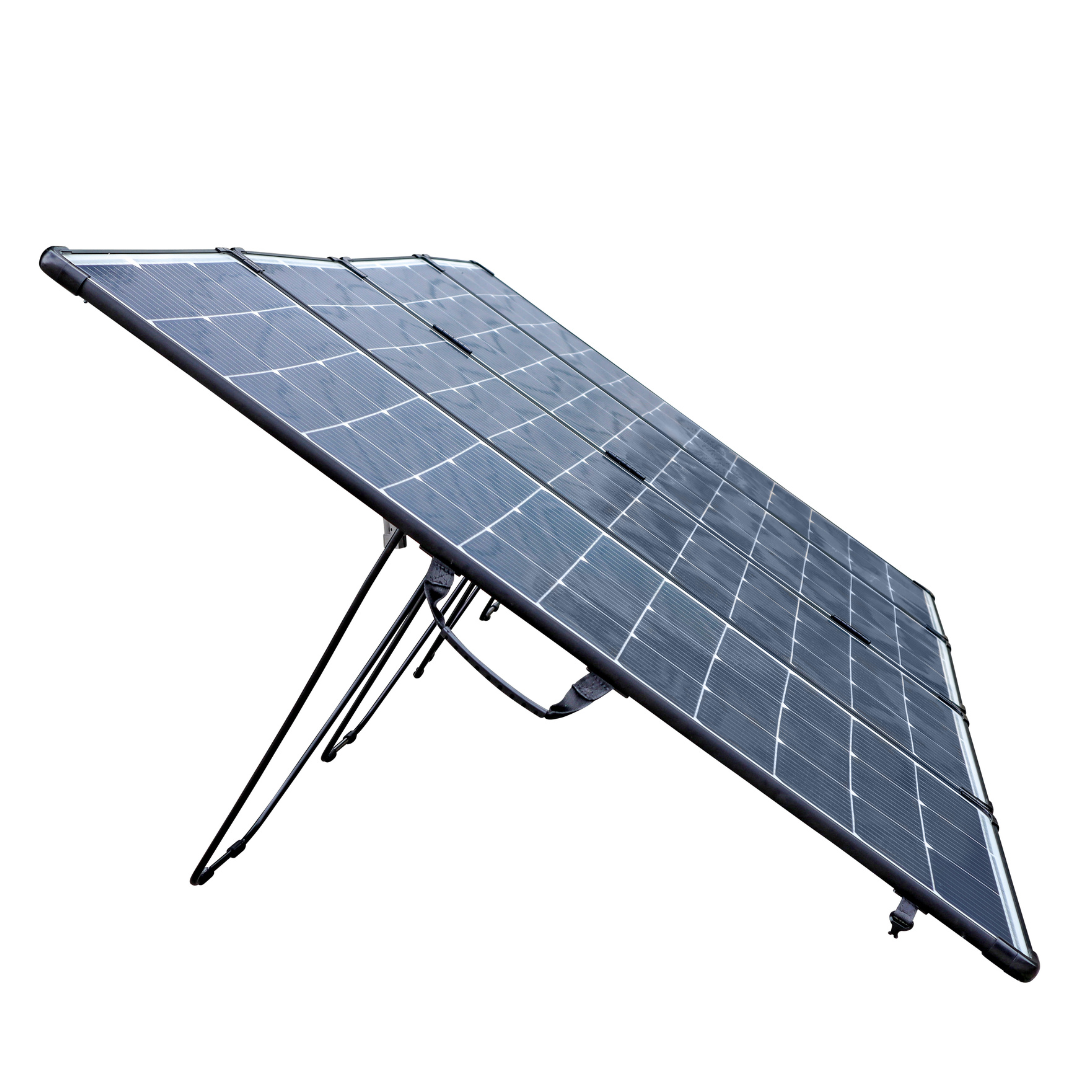

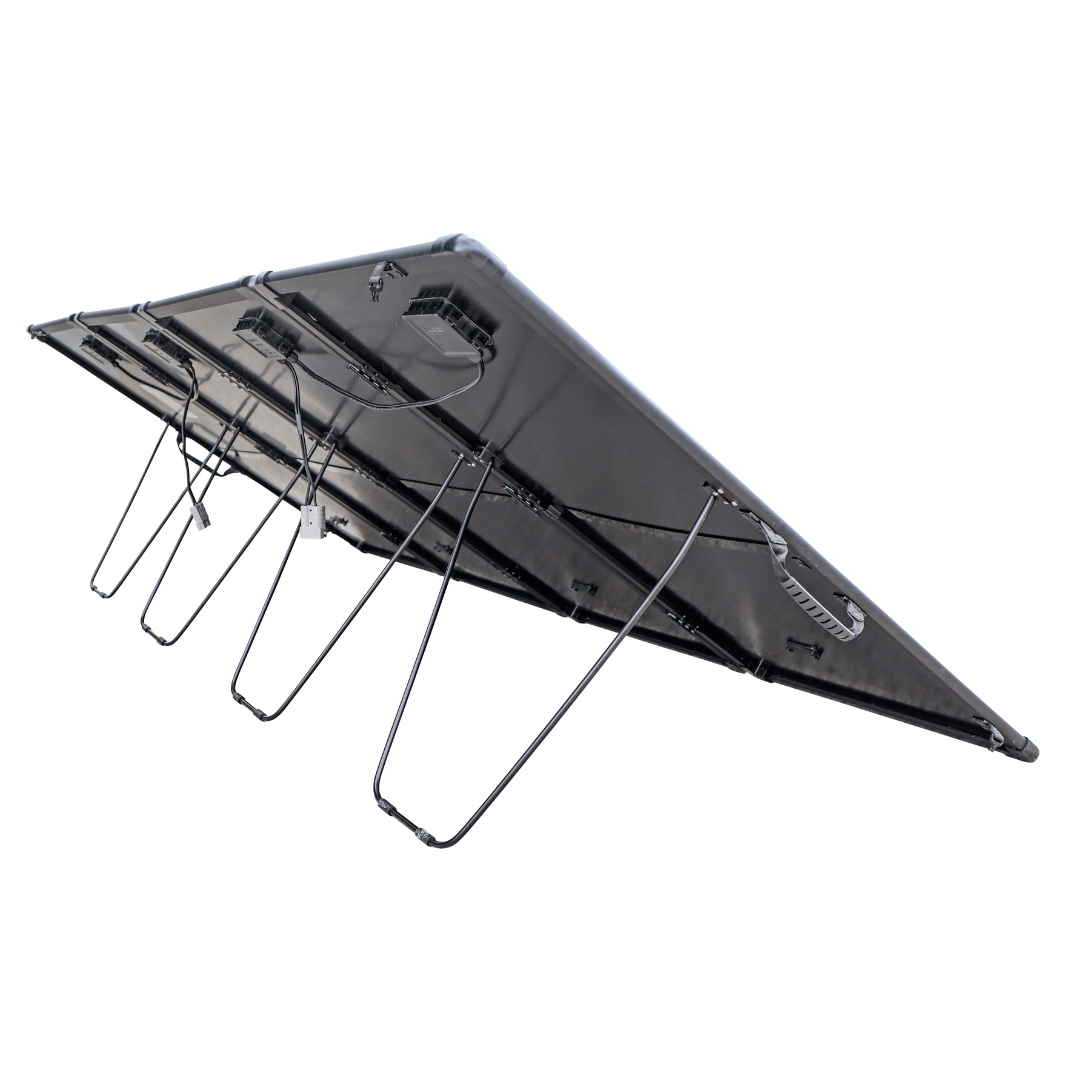

https://www.powerproductsdirect.com.au/shop/alv-440spc-alvolta-ultra-440w-slim-portable-solarcase-16015 https://www.powerproductsdirect.com.au/web/image/product.template/16015/image_1920?unique=6afb5a7440W slim portable solarcase with legs, carry case, 10m 6mm² Anderson extension lead and accessories, 5-year warranty
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Alvolta Ultra 440W Slim Portable Solarcase
Solarcase features
- 440W portable solarcase, 22.8% module efficiency

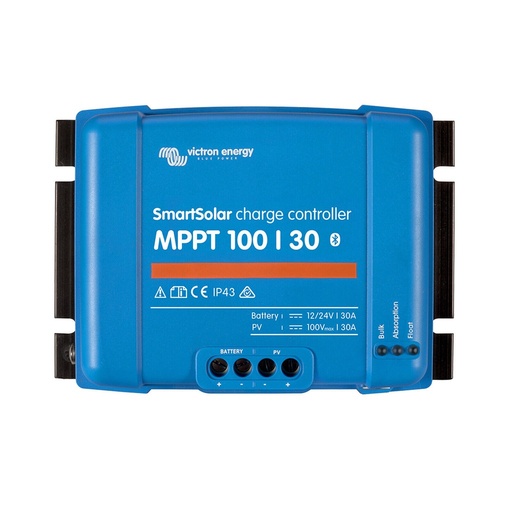

- Vmp 40.0V, Imp 11.0A, Voc 48.0V: needs an MPPT controller that accepts this input voltage
- 144 monocrystalline cells
- Anderson-style output, 4mm² 900mm cable
Build

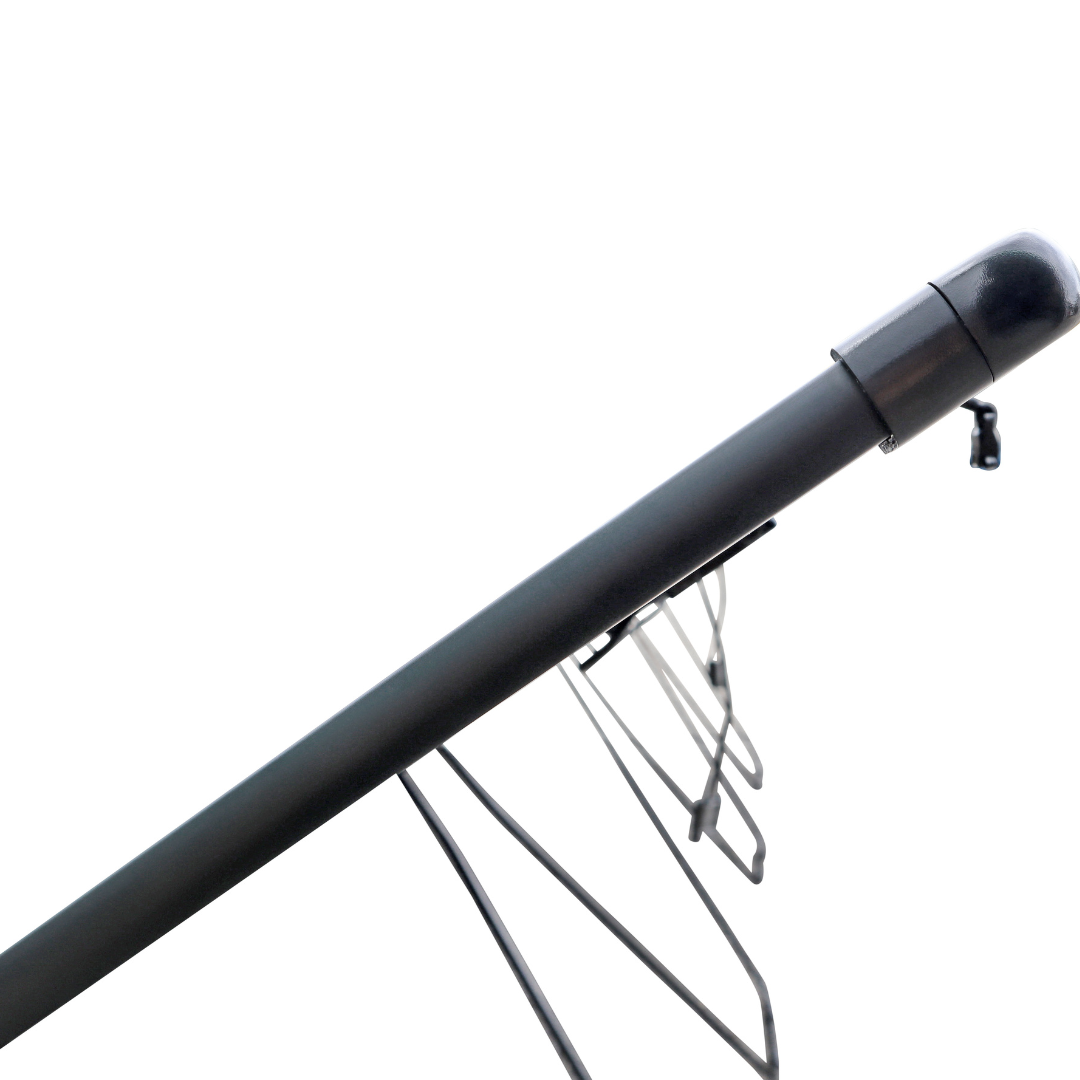

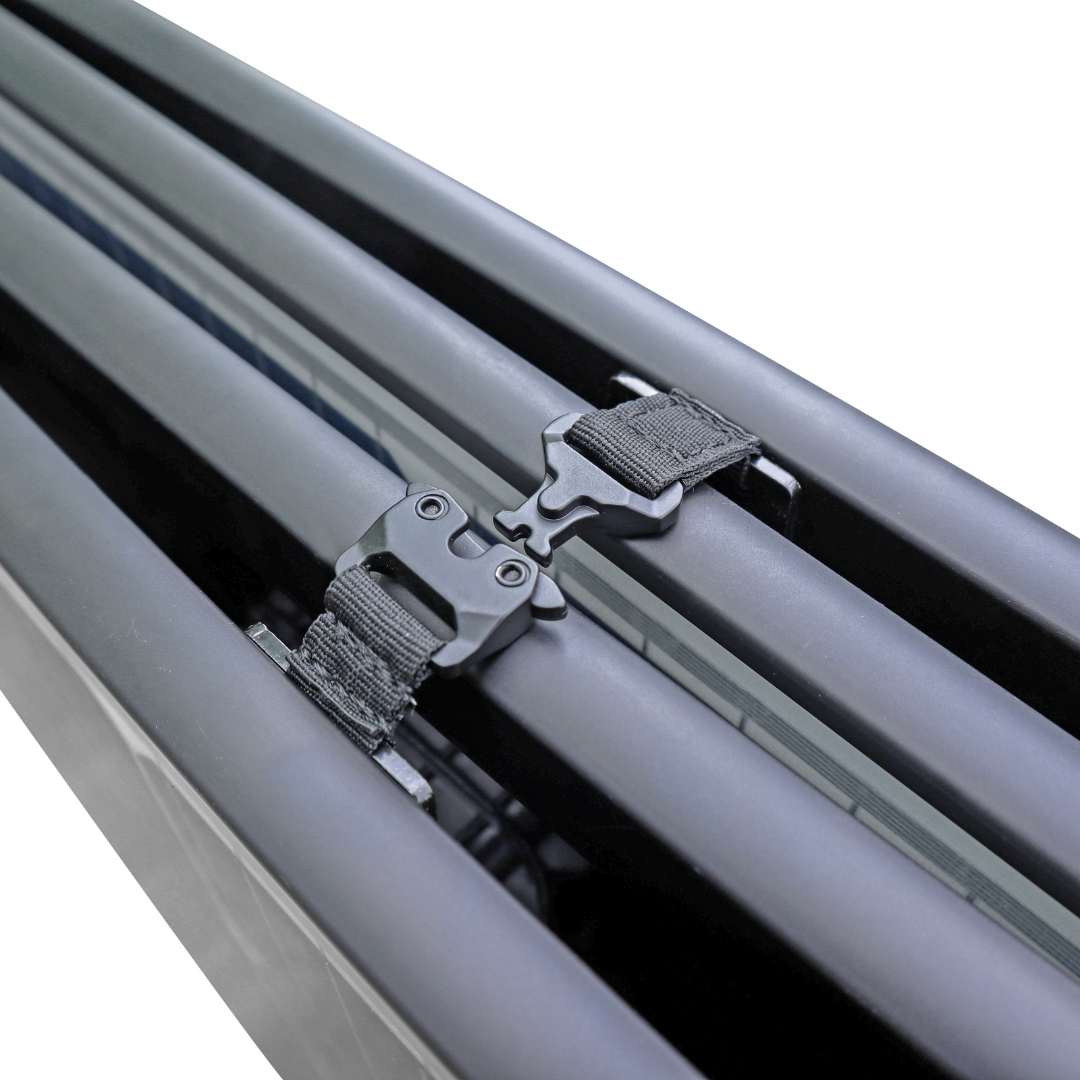

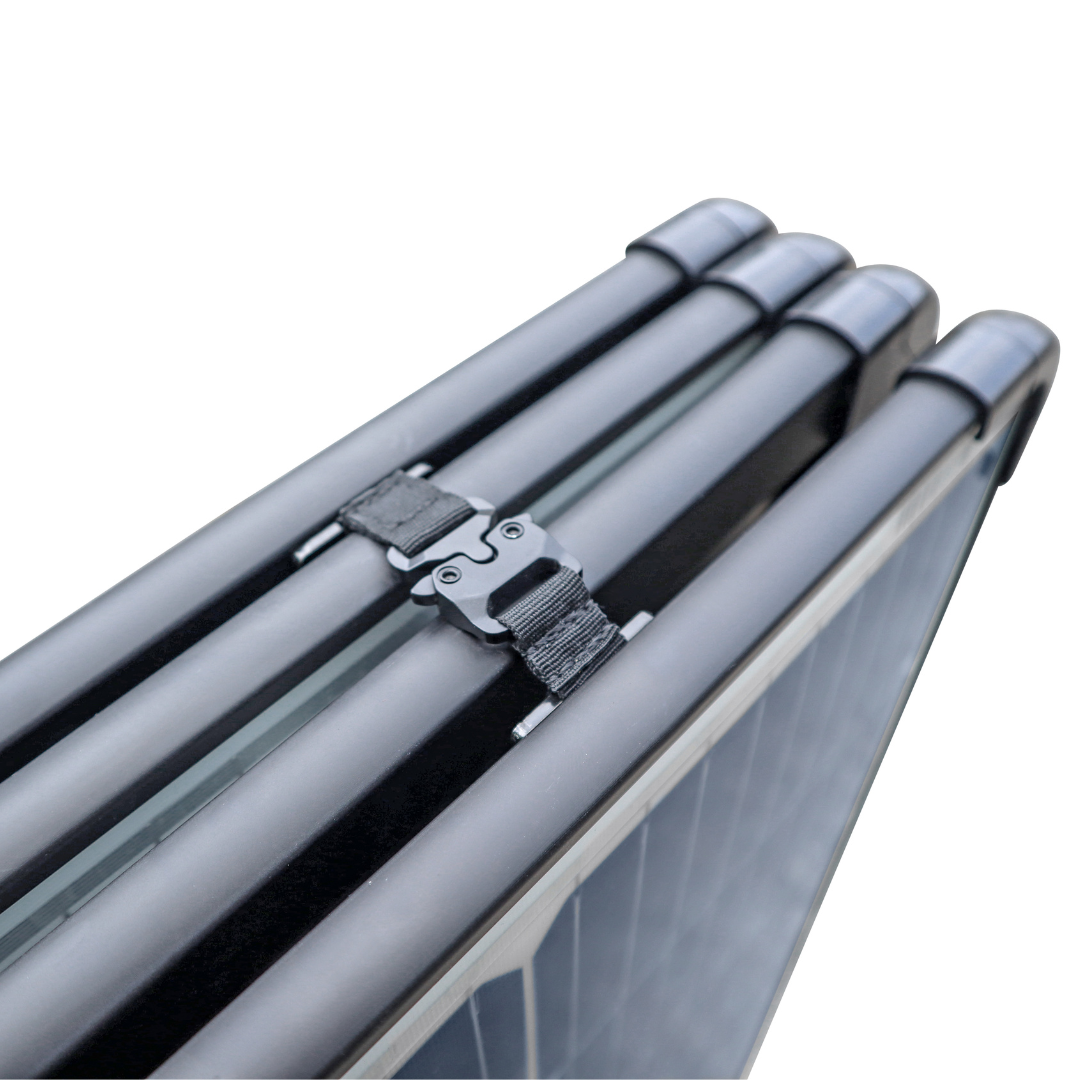

- Anodised aluminium frame
- IP68 junction box

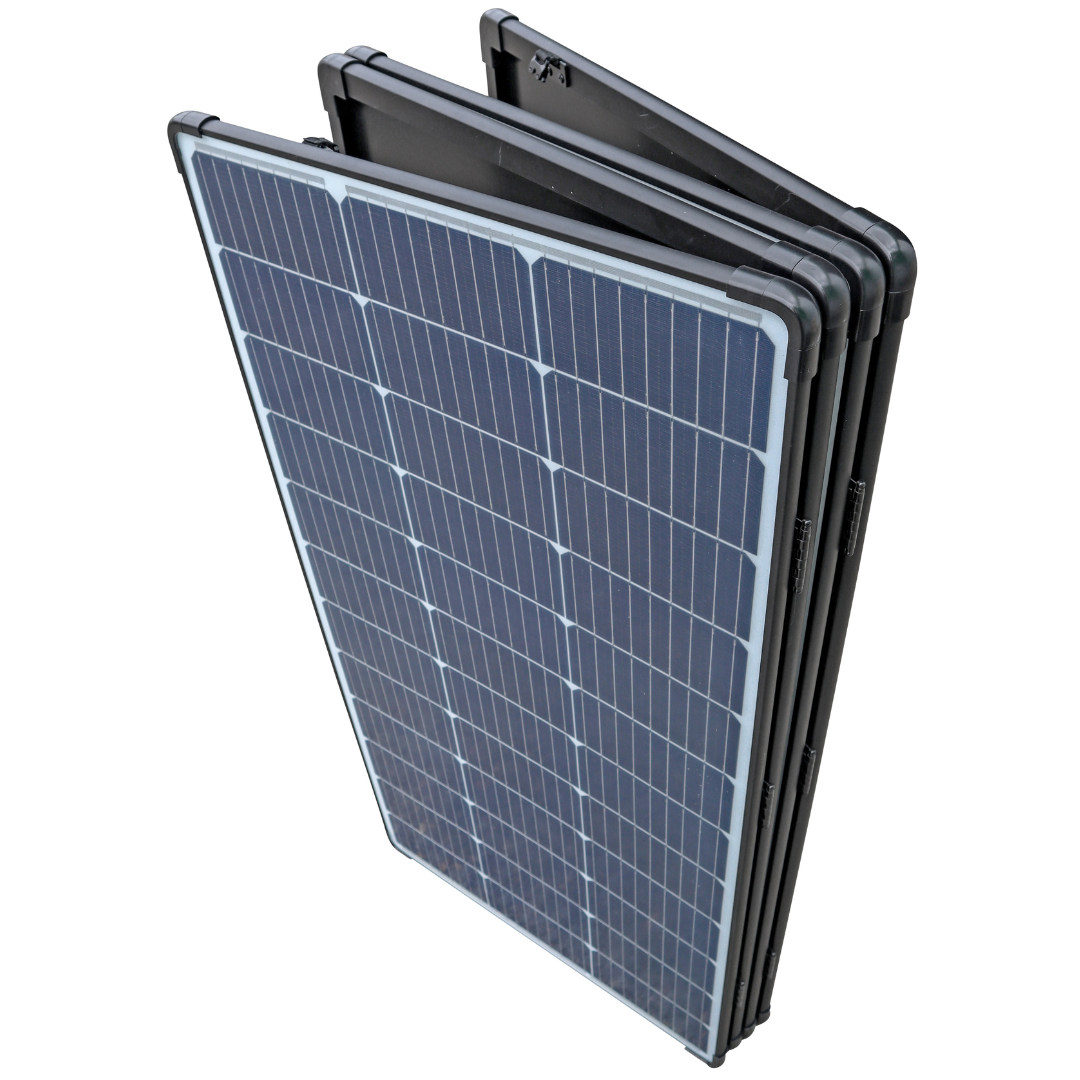

- 12.84kg; folds to 1072 x 547 x 90mm

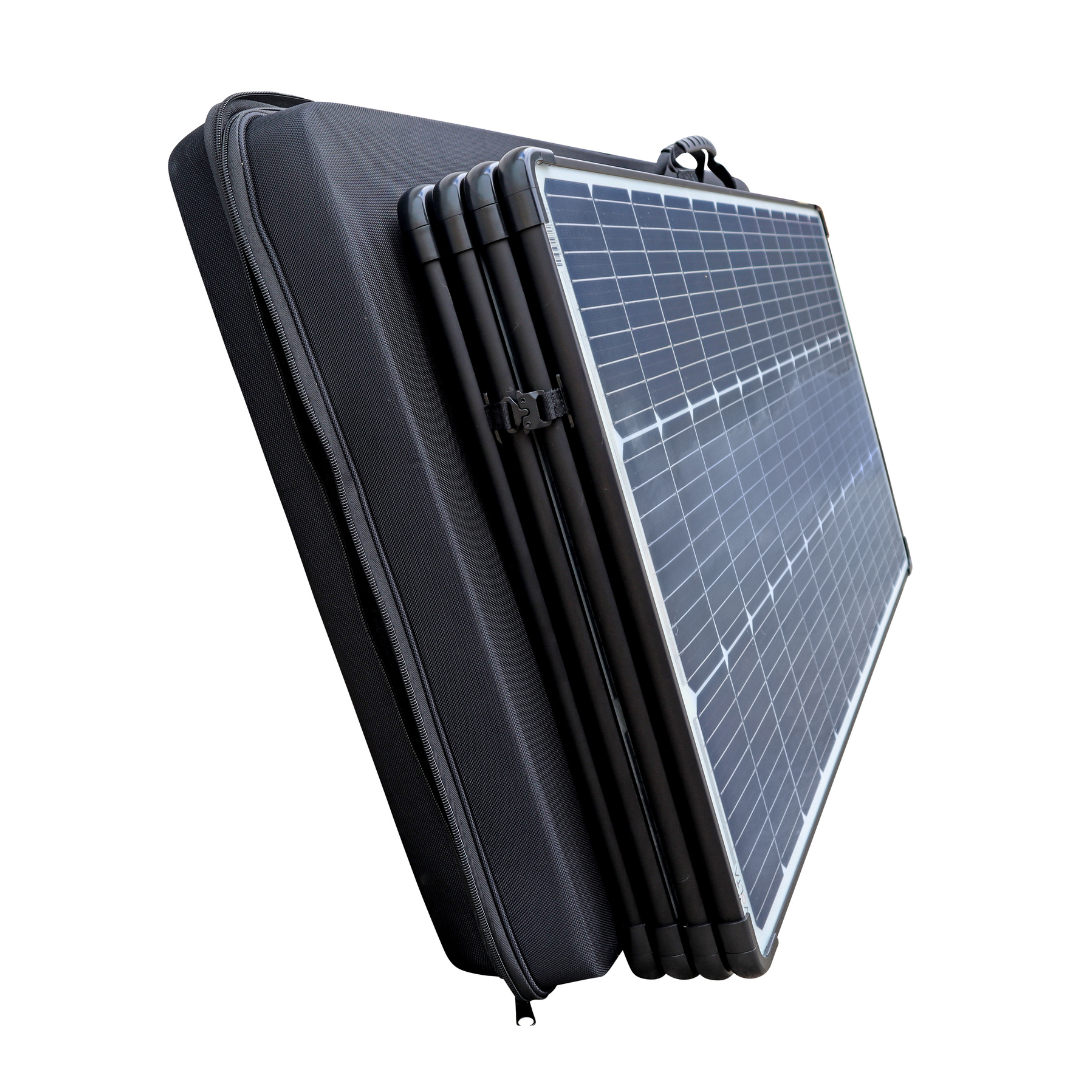

- Heavy-duty carry cases for the solarcase and cables
Where to use it
The Alvolta Ultra 440W Slim Portable Solarcase gives caravans, motorhomes and 4WD campers big portable solar output you can park in the sun away from the shade of the camp. It folds into its own heavy-duty case for travel.
Because the open circuit voltage is 48V, pair it with an MPPT controller rated for that input (a PWM controller won't suit). The kit includes a 10m extension lead, a parallel lead and alligator clips, and the solarcase is backed by a 5-year warranty.
What's in the box
- Solarcase

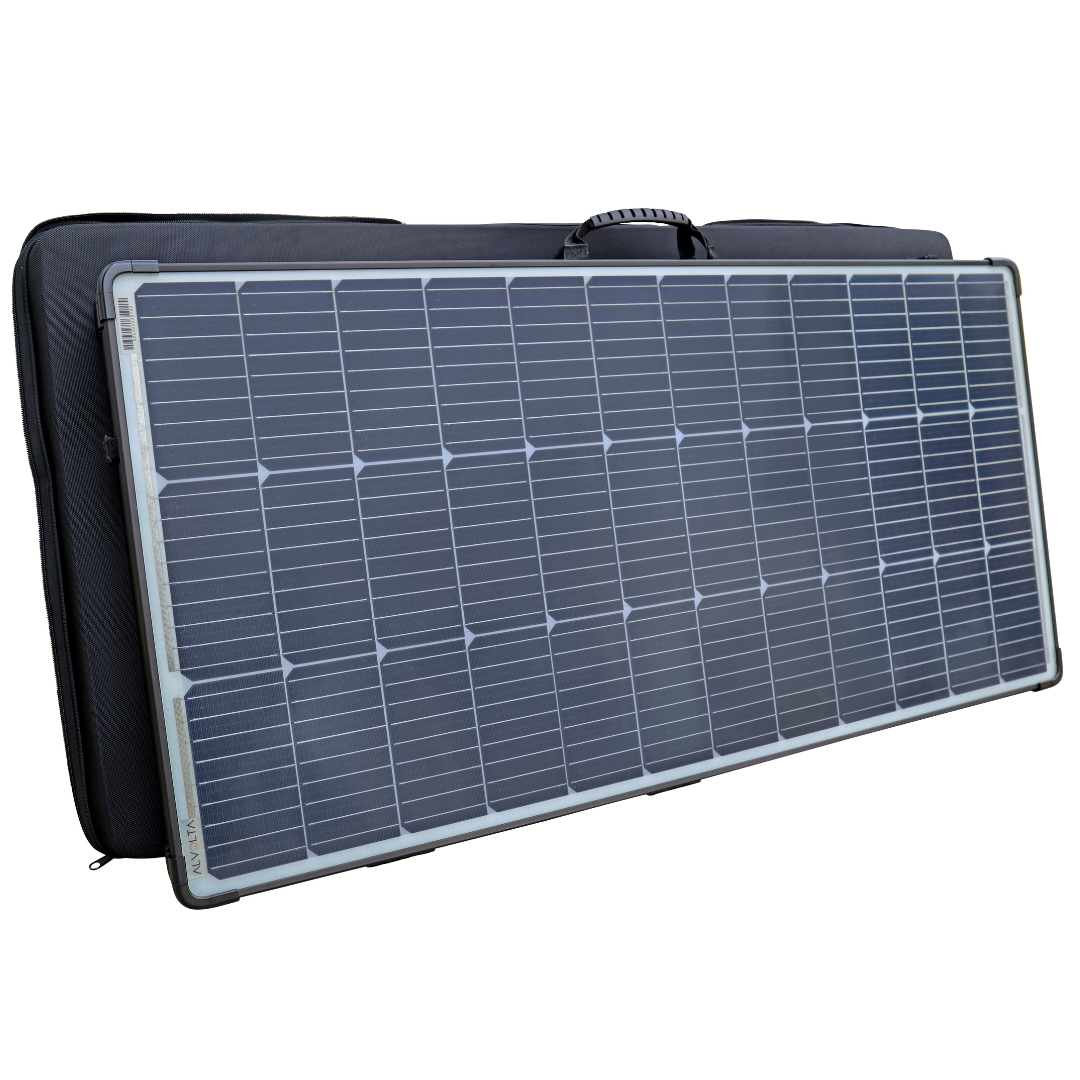

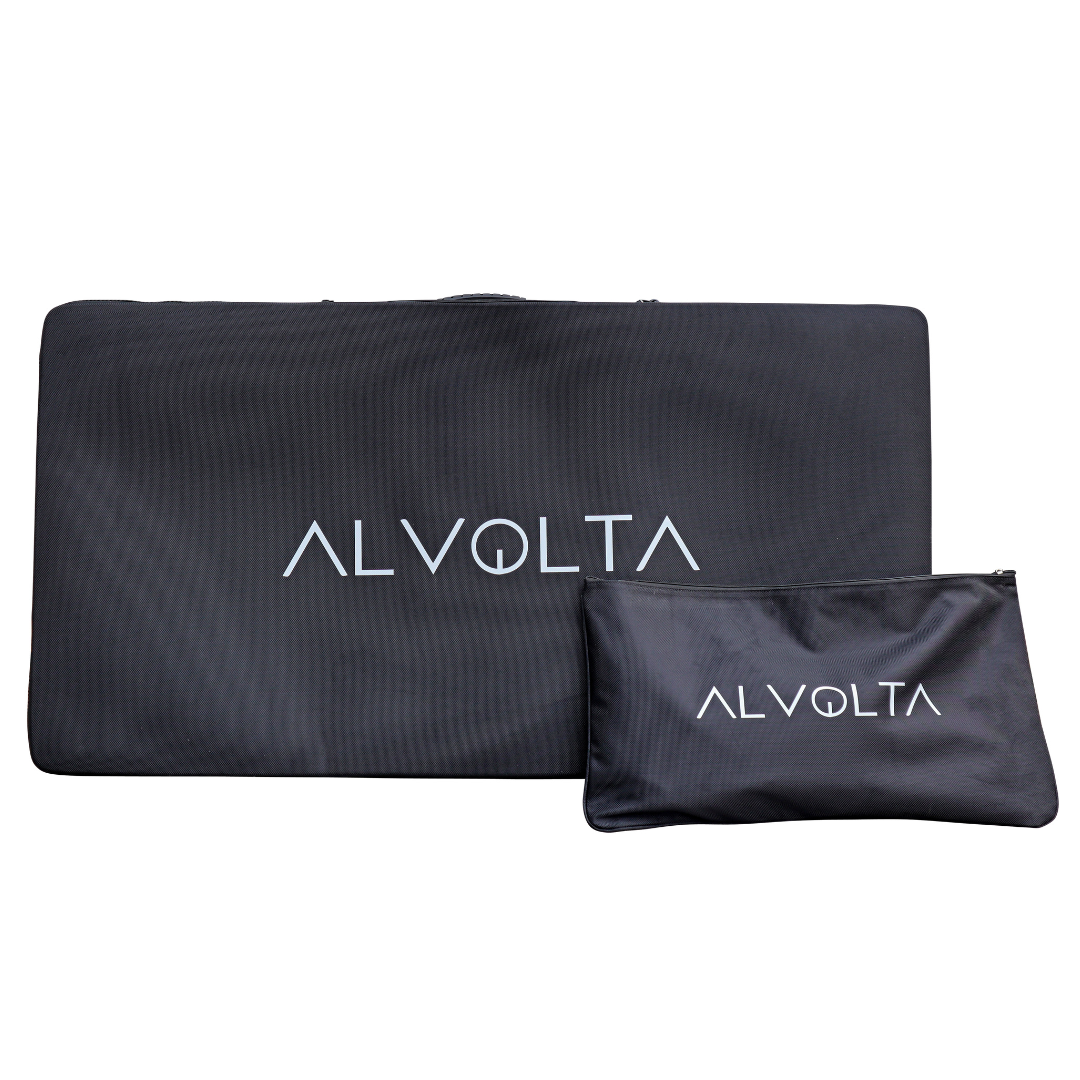

- Heavy-duty carry case for the solarcase

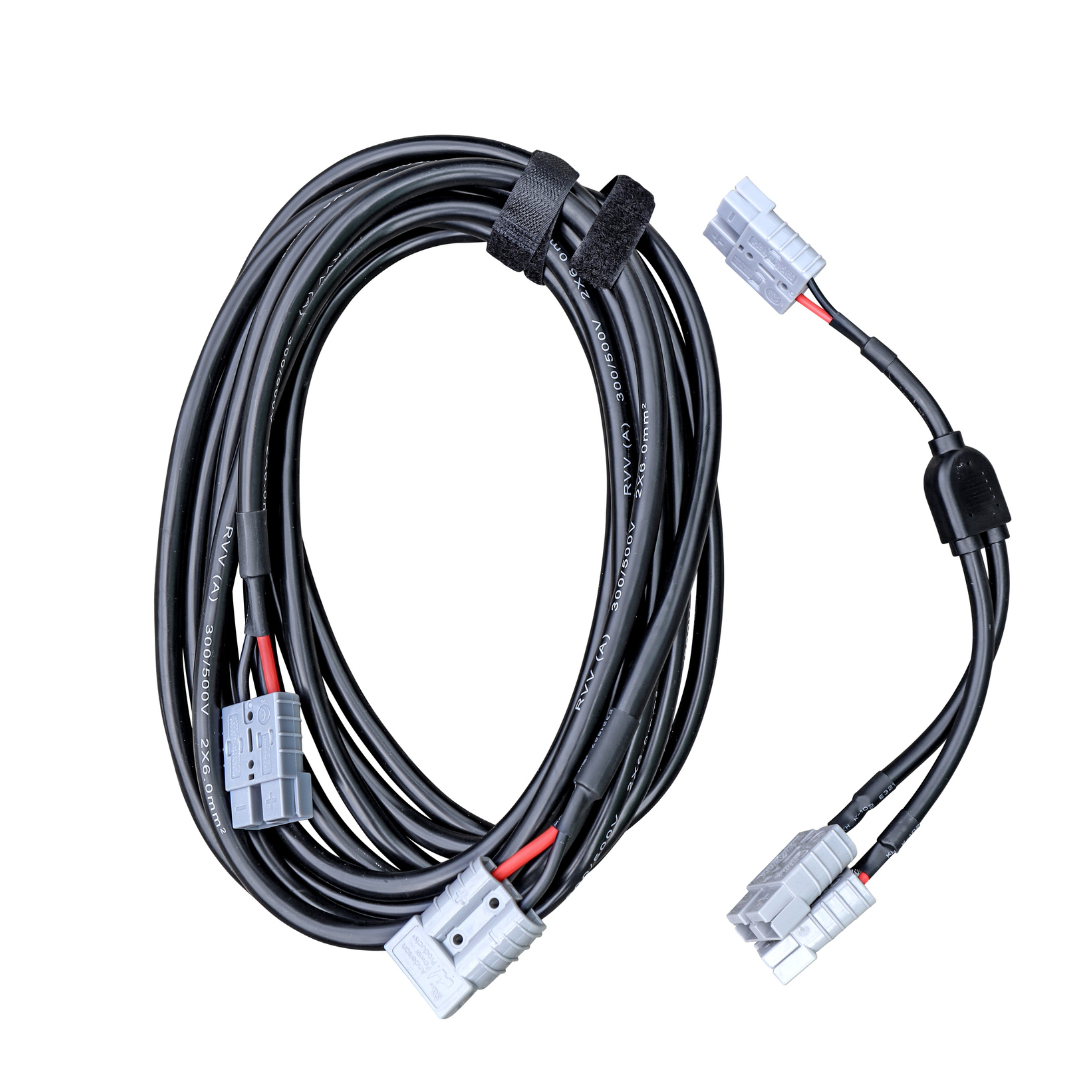

- 10m 6mm² extension lead
- Parallel connection lead with Anderson-type connectors
- Alligator clips for battery connection
- Heavy-duty carry case for cabling accessories
Dimensions
Folded | 1072 x 547 x 90 mm |
In case | 1130 x 590 x 100 mm |
Weight | 12.84 kg |
Warranty
- 5-year warranty
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
Datasheet_ALV-440SPC_V4_compressed.pdf
Download
Portable solar panels are typically used to recharge 12 V or 24 V batteries that run camping appliances such as fridges, lights, induction cooktops, and phone / laptop chargers. The exact devices you can power depend on the wattage of the panel and the size of your battery system.
Most portable solar panels are plug and play. Simply unfold the panel, place it in direct sunlight, and connect it to your battery through a solar regulator (to prevent overcharging). Many kits, including the Alvolta portable solarcases, include leads with alligator clips or Anderson plugs for quick connection.
Yes, but performance is reduced. On overcast days, you can expect lower power output, often around 20 - 50% of the panel's rated capacity. In comparison, a sunny day with perfect conditions would see a power output of around 80% of the panel's rated capacity. For consistent energy supply, many campers size their panels to account for cloudy conditions or carry a backup charging method.
Start by calculating the daily energy usage of your appliances (in watt-hours). Match this against the expected solar energy you can generate (panel wattage x average peak sun hours per day). As a rule of thumb, a 200 W portable panel suits most campers running a 12 V fridge and a few small devices.
A quality portable solar panel will be composed of fixed solar panels. Fixed solar panels are made of tough glass and aluminium frames which can withstand the Australia's harsh climate. They are designed to withstand heat, UV exposure, and light rain. Flexi solar panels, solar blankets, and ultra thin solar panels are not comparable to a fixed portable solarcase as they will not withstand outdoor weather for extended periods of use.

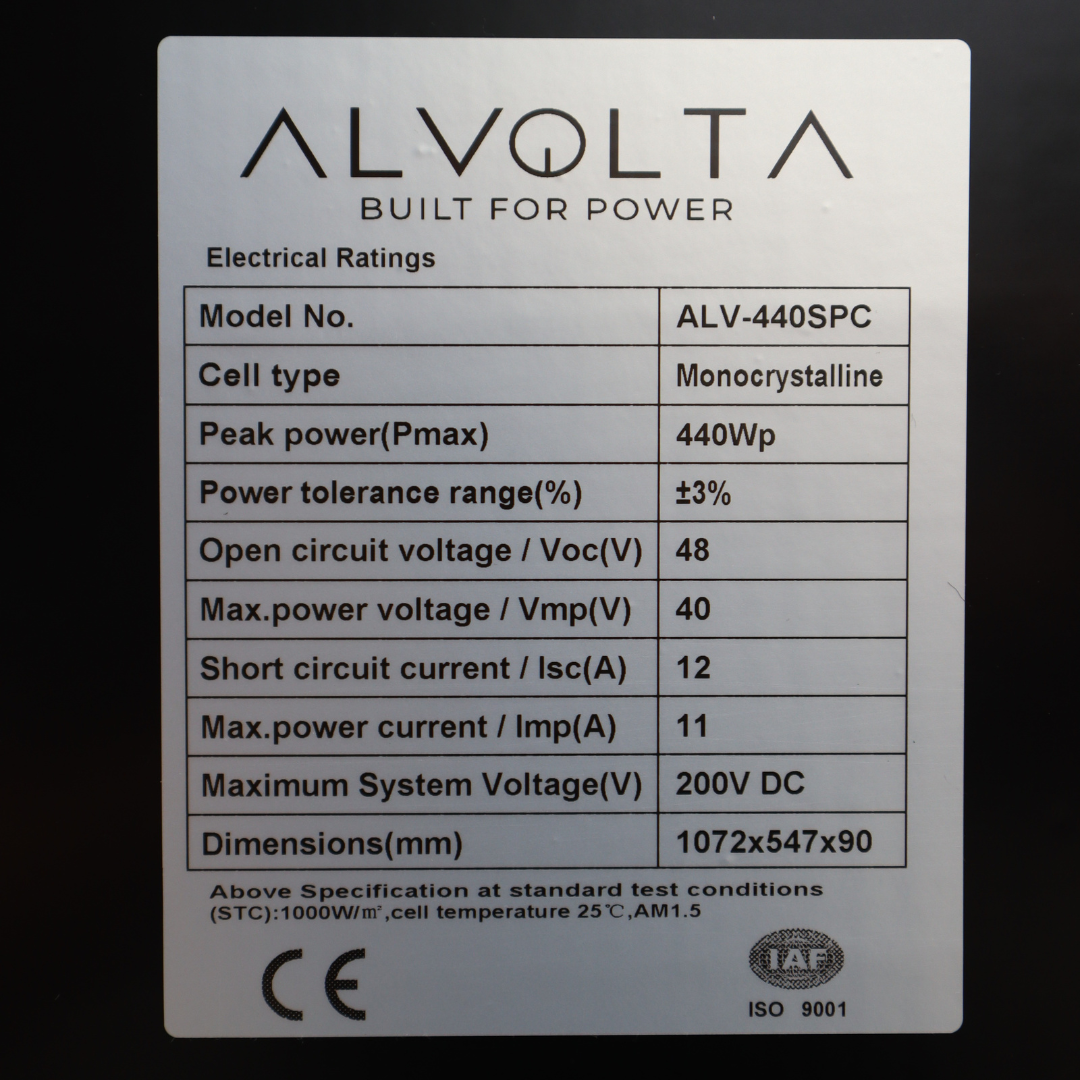

Product Specifications
Model | ALV-440SPC |
Maximum Power | 440W |
Optimum Operating Voltage (Vmp) | 40.0V |
Optimum Operating Current (Imp) | 11.0A |
Open Circuit Voltage (Voc) | 48.0V |
Short Circuit Current (Isc) | 12.0A |
Module Efficiency | 22.8% |
Maximum System Voltage | 200V DC |
Power Tolerance | ±3% |
Solar Cells | Monocrystalline 166mm cells |
Number of Cells | 144 (3 x 12 x 4) |
Frame | Anodised aluminium |
Junction Box | IP68 |
Connectors | Anderson style |
Output Cables | 4mm², 900mm |
Operating Temperature | -20°C to +70°C |
Temperature Coefficient (Pmax) | -0.38%/°C |
Temperature Coefficient (Voc) | -0.36%/°C |
Temperature Coefficient (Isc) | -0.05%/°C |
Dimensions (folded) | 1072 x 547 x 90 mm |
Dimensions (in case) | 1130 x 590 x 100 mm |
Weight | 12.84 kg |
Warranty | 5 Years |
