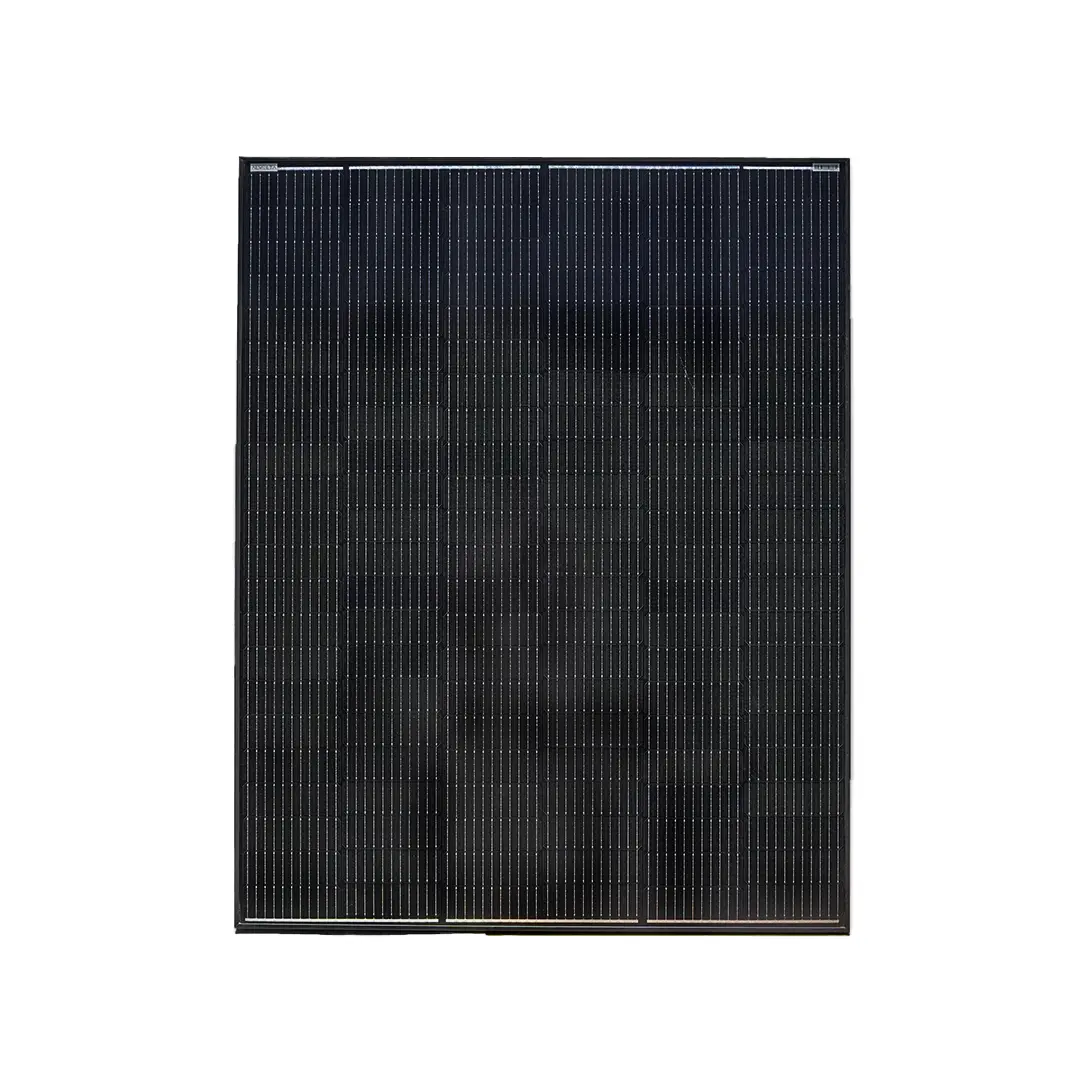

Alvolta Eclipse Max 320W Solar Panel
Fixed panel with black frame for 12 / 24 / 48 V systems | 1430 x 1134 x 35 mm
Alvolta Eclipse Max 320W Solar Panel
Performance features
- 320 W maximum power output
- 22.7% efficiency rating
- Suitable for 12 V / 24 V / 48 V systems
- Compatible with some MPPT solar regulators*
*These panels are high voltage. Please check the MPPT spec sheet to ensure VOC is compatible with the solar panel's output voltage.
Solar cell features
- A-grade monocrystalline solar cells
- Tempered glass for improved protection and resistance against weather
- Fixed solar panel design for improved durability
Frame features
- Anodised aluminium frame
- Black frame and black back sheet for improved aesthetics
Inclusions
- IP65-rated sealed junction box
- MC4-style connectors
- 900 mm of 4 mm² output cable
Doesn't include a solar regulator.
Where to use it
Designed to maintain and charge 12V, 24V or 48V batteries efficiently, it is perfect for permanent solar installations. Mount to 4x4 roof racks, on the roof or deck of your caravan, motorhome or boat. Not suitable for pole mount applications due to its size.
Ideal for use in camping, 4WD touring, caravanning, and marine applications or low-power off-grid applications.
Durable and weather-resistant, Eclipse panels provide a set-and-forget solution for continuous solar power.
Dimensions
Width | 1134 mm |
Height | 1430 mm |
Depth | 35 mm |
Weight | 16.16 kg |
Safety features and certifications
- 2011/ 65/ EU and amending directive (EU)2015/863
- EN IEC 62368-1:2020+A11:2020
Warranty
- 5-Year Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
