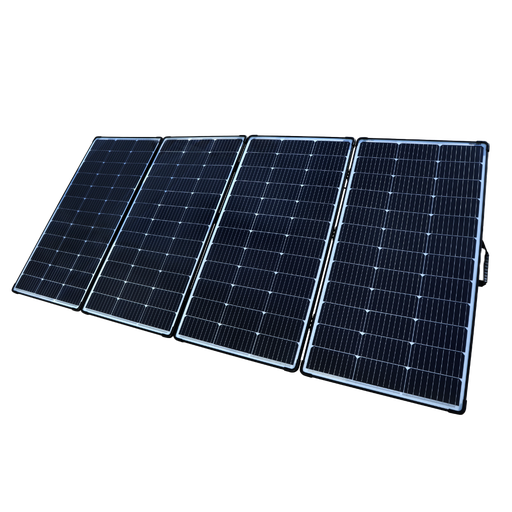

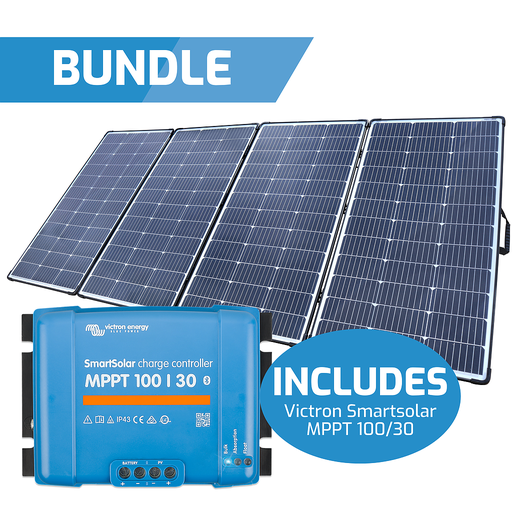

Alvolta Ultra 440W Slim Portable Solarcase with Victron 30A MPPT
440 W portable folding solar panel and 100 V / 30 A MPPT solar charge controller for 12 V / 24 V systems
Alvolta Ultra 440W Slim Portable Solarcase with Victron 30A MPPT
440W solarcase performance features
- 440 W maximum power output
- 22.8% efficiency rating
- Suitable for 12 V / 24 V / 36 V systems
- Suitable for series and parallel configuration
440W solarcase solar cell features
- A-grade monocrystalline cells
- PVDF cell sheeting for improved protection and resistance against weather
- Fixed solar panel design for improved durability
440W solarcase frame features
- Anodised aluminium frame
- Black frame and black back sheet for improved aesthetics
- Adjustable legs to achieve an optimum tilt angle
- 12.84kg light-weight design
- Folds into a carry case for compact storage
- Saves space in your vehicle - 100 mm thick carry case
- Features sturdy, quick-release clasps to keep the solarcase closed
- Corner protectors for a bump-proof frame
SmartSolar 100/30 MPPT features
- Maximum Power Point Tracking Solar Charge Controller
- Built-in Bluetooth for Ease of Programming & Monitoring
- 100 V PV open circuit voltage
- 30 A charge current
- Suitable for 12 V / 24 V systems
- 98% maximum efficiency
- Internal temperature sensor
- VE.Direct communication port for wired data connection
- Over-temperature sensor
- Flexible charge algorithm for smart battery management
- Additional SmartSolar LCD display available
Where to use it
This kit is a plug-and-play solution, designed to provide extra power whenever you need it. Lightweight and portable, the Alvolta 440 W Solarcase can be easily stored in your vehicle and can be pulled out when you need to charge your battery bank. With a flexible charging algorithm, intelligent battery management and built-in Bluetooth, the Victron SmartSolar 100/30 can easily and efficiently utilise the solar energy generated by the 440 W solarcase to keep your batteries charged.
Ideal for use in 4WD and touring setups, caravans and camper trailers, and RV and motorhome camping.
Don't have enough roof space to mount fixed solar panels? Use a fixed-panel portable solar case for reliable power generation, and pack it away when you're charged.
440W solarcase dimensions
Folded in carry case
Width | 590 mm |
Height | 1130 mm |
Depth | 100 mm |
Folded outside carry case
Width | 547 mm |
Height | 1072 mm |
Depth | 90 mm |
Unfolded
Width | 2188 mm |
Height | 1072 mm |
Depth | 280 mm |
Weight | 12.84 kg |
SmartSolar 100/30 dimensions
| Width | 590 mm |
| Height | 1130 mm |
| Depth | 100 mm |
Weight | 1.3 kg |
440W solarcase safety features and certifications
- 2011 / 65 / EU and amending directive (EU) 2015/863
- EN IEC 62368-1:2020+A11:2020
SmartSolar safety features and certifications
- EN/IEC 62109-1
- UL 1741
- CSA C22.2
Warranty
- 5-year warranty
Applications
4WDs
RVs
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
