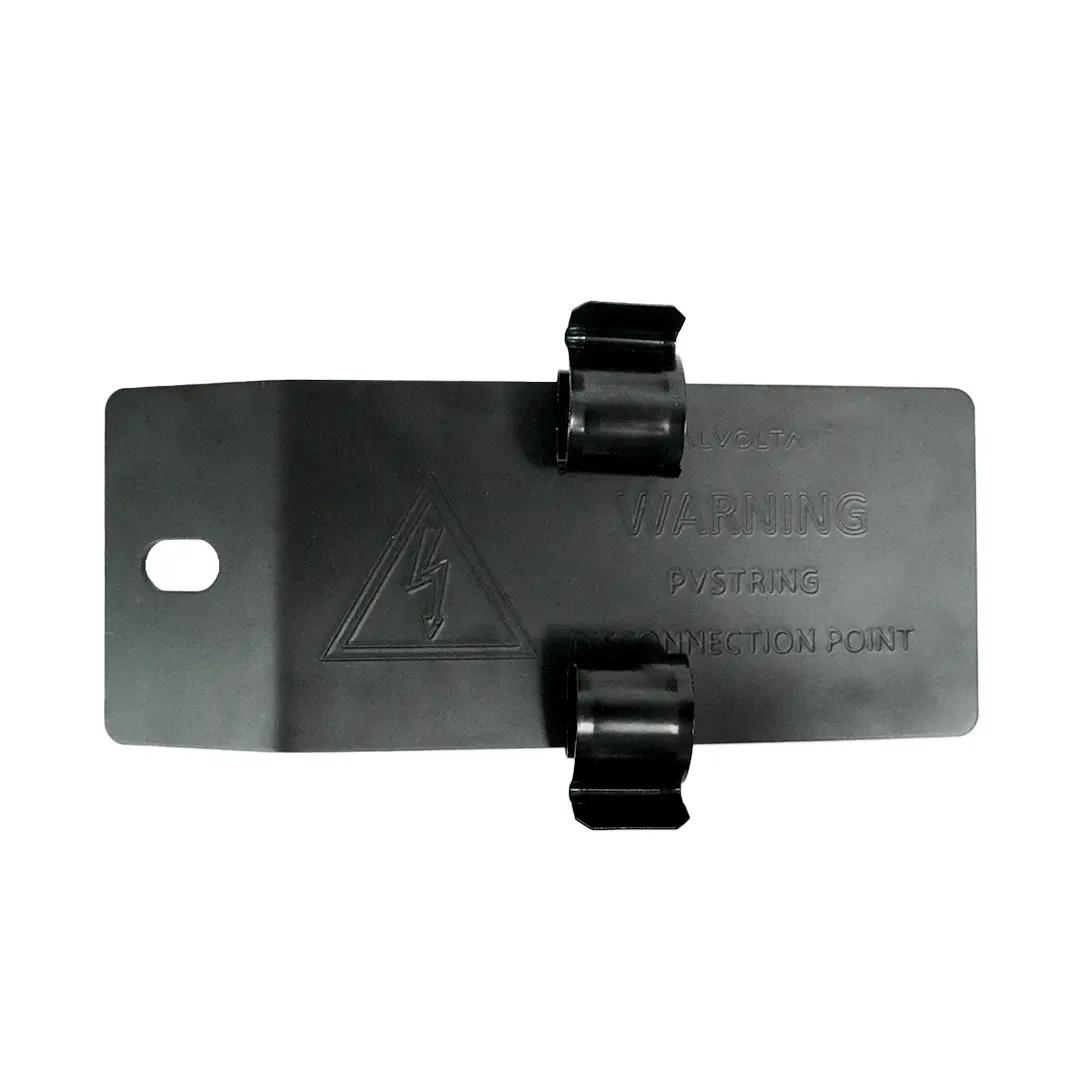

Holds MC4 solar connectors at a clearly marked DC disconnection point

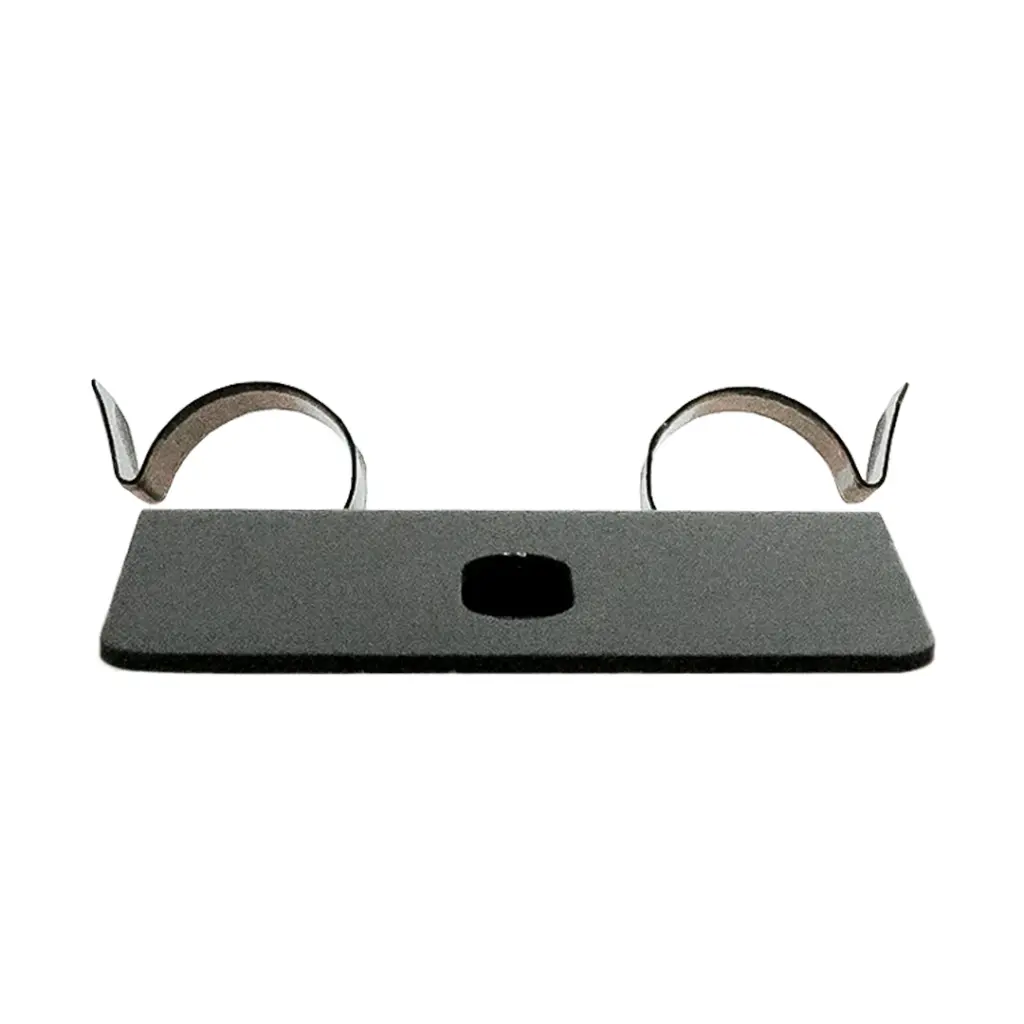

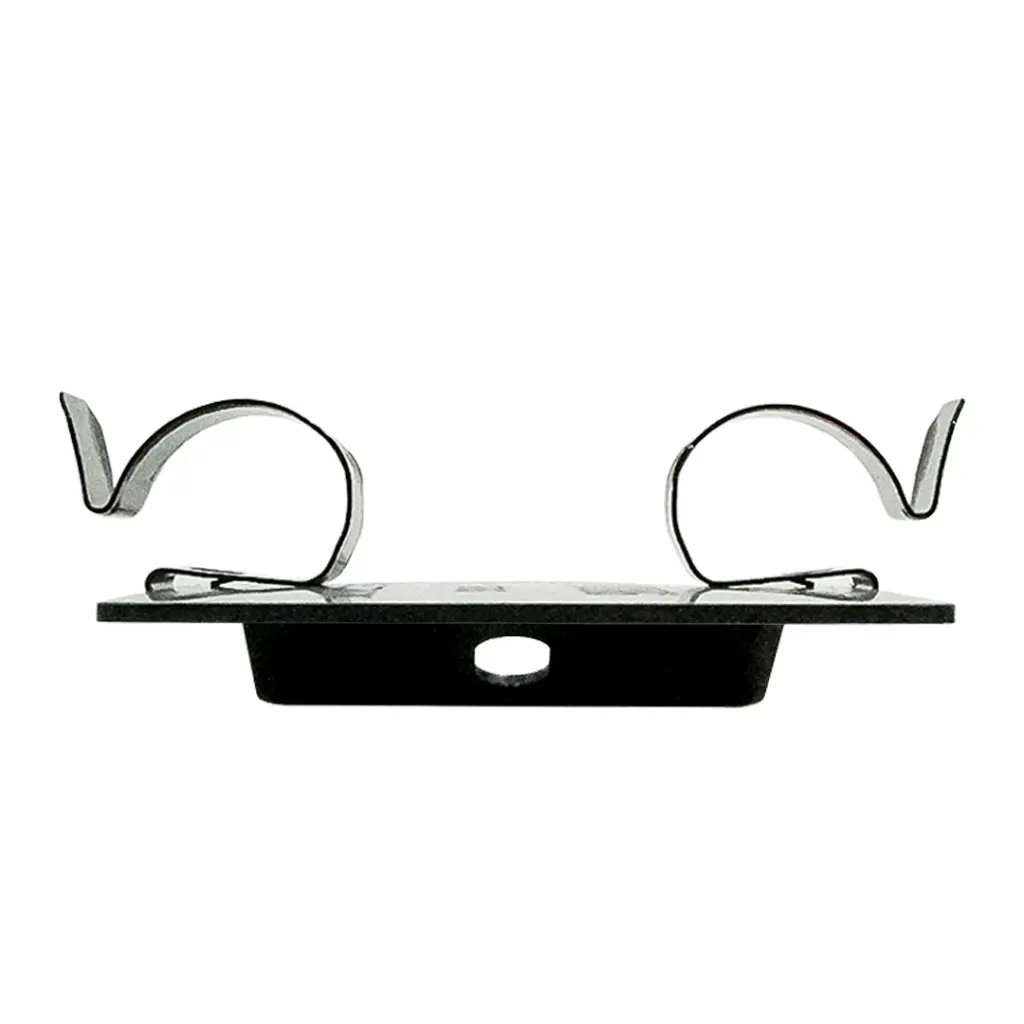

Stainless steel MC4 clips

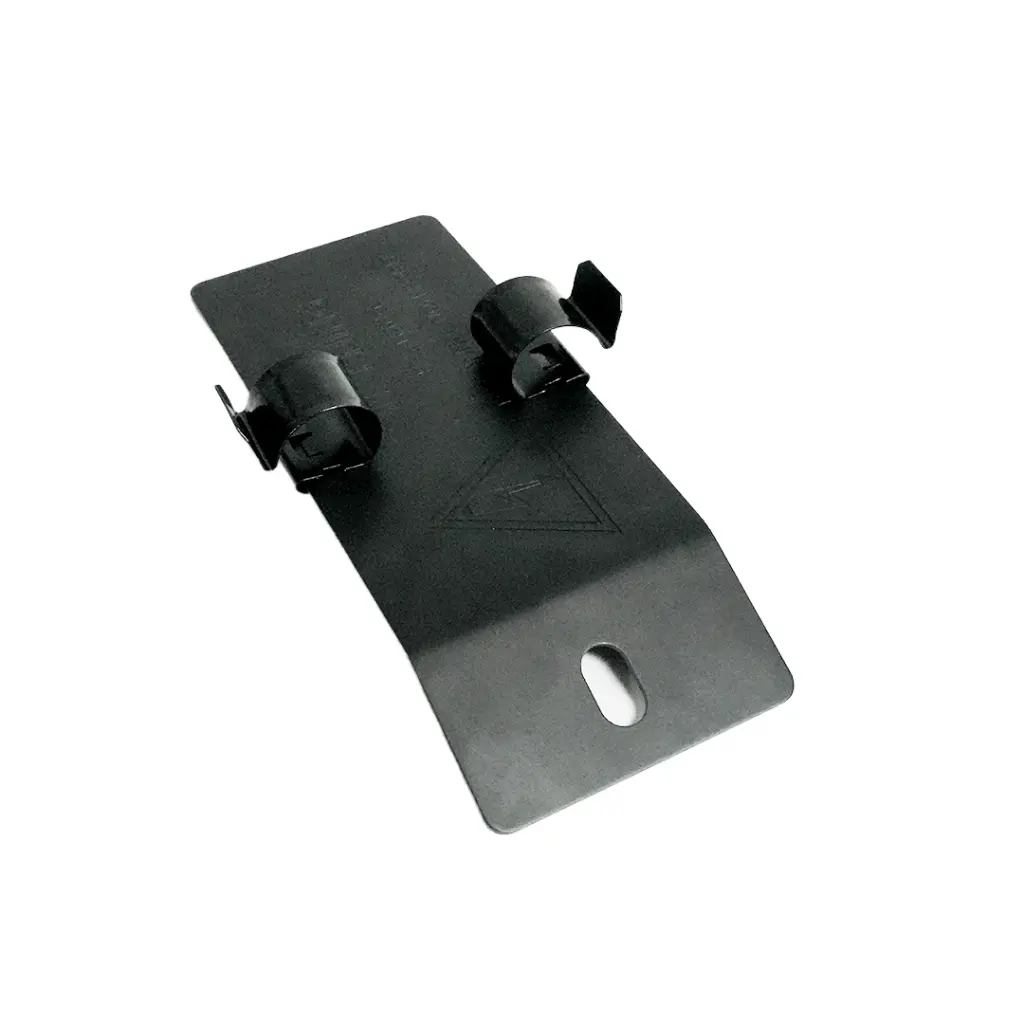

15 x 10mm mounting holes
Build
Black aluminium plate, 1mm
0.1kg
Where to use it
The Alvolta PV Disconnection Point gives residential and commercial solar arrays a tidy, accessible place to separate the MC4 connectors between the panels and the inverter, for safe maintenance and isolation.
Mount it on the panel frame or rail near the array and clip the MC4 connectors into the holders. It is backed by a 1-year warranty.
What's in the box
1x PV disconnection point
Dimensions
Length
150 mm
Width
80 mm
Thickness
1 mm
Weight
0.1 kg
Warranty
1-year warranty
Applications
Off-Grid Systems
Tiny Houses
Cabins
Off-Grid Sheds
Remote Homes
Businesses
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
A PV disconnection point is a safety device that allows the DC power from a solar panel array to be safely isolated from the rest of the solar system. It enables installers and maintenance personnel to disconnect the photovoltaic (PV) array for servicing, fault finding, or emergency situations without accessing live wiring.
A PV disconnection point improves the safety and serviceability of a solar installation by providing a convenient way to isolate the solar array. It helps reduce the risks associated with working on live DC circuits and simplifies maintenance, repairs, and system upgrades.
A PV disconnection point is typically installed between the solar panel array and the inverter or solar charge controller.
Yes. PV disconnection points are suitable for off-grid, hybrid, and battery-based solar systems, as well as grid-connected installations. They provide a safe means of isolating the solar array regardless of whether the system is charging batteries or supplying an inverter.
Installation should only be carried out by a licensed electrician or accredited solar installer. Solar DC circuits can remain energised whenever the panels are exposed to sunlight, so correct installation is essential to ensure the system operates safely and complies with applicable Australian electrical and solar installation standards.
