LiFePO4 Battery 25,6V/200Ah NG

Building upon the success of our Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements.

Highlights:

Multiple improvements including added read-out of cell voltages and temperatures;
Maximum single bank size increased to 385kWh;
Modules available in 12, 24 and 48V;
Protection class IP65;
Bracket mounting and strap mounting.

Tailored for those seeking advanced and reliable energy storage, the Lithium NG series marks a pivotal advancement in our product lineup, ready to meet the demands of tomorrow.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_LiFePO4 Battery 25,6V.pdf

Download

Datasheet_LiFePO4 Battery.pdf

Download

Product Specification

VOLTAGE AND CAPACITY	LFP-25,6/200
Nominal voltage	25,6 V
Nominal capacity @ 25 °C*	200 Ah
Nominal energy @ 25 °C*	5120 Wh
Capacity loss	(per 100 cycles, @ 25 °C, 100 % DoD): <1 %
Energy loss	(per 100 cycles, @ 25 °C, 100 % DoD): <1 %
Round trip efficiency	92 %
80 % DoD	2500 cycles
70 % DoD	3000 cycles
50 % DoD	5000 cycles
Max continuous discharge current (C-rate)	200 A (1C)
Max pulse discharge current 10s (C-rate)	400 A (2C)
End of discharge voltage	22,4 V
Internal resistance	2 mΩ
Charge voltage	Between 14 V / 28 V / 56 V and 14,4 V / 28,8 V / 56,8 V
Float voltage	13,5 V / 27 V 54 V
Max continuous charge current (C-rate)	200 A (1C)
Max pulse charge current 10s (C-rate)	400 A (2C)

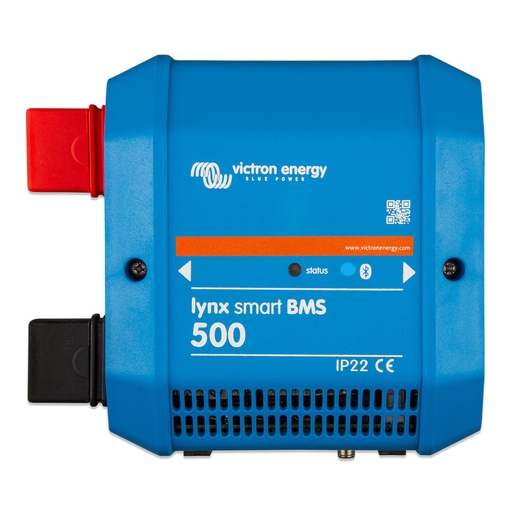

BMS-es	Lynx Smart BMS NG 500 A / 1000 A (M10 busbars), must be purchased separately
Cell measurements	Cell voltages and temperatures, battery current

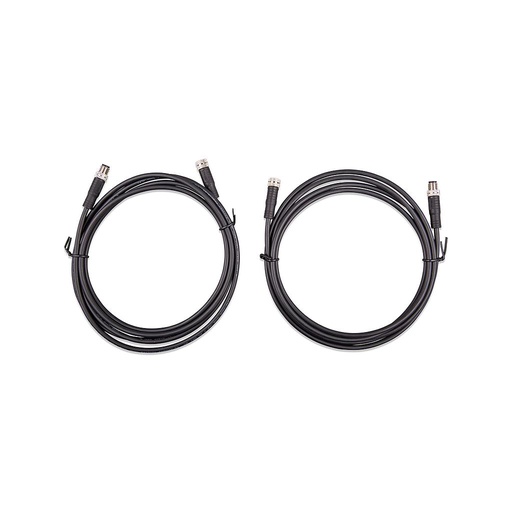

Battery BMS interface	Male + female cable with M8 circular connector with high-speed digital communication, length 50 cm M8 extension cables are available separately for purchase in various lengths between 1 and 5 meters
Alarm feature	Pre-alarm contact on BMS
Bluetooth	In the BMS
Max batteries per BMS	50 (384 kWh per BMS 3))
Battery firmware updates	Battery firmware automatically updated by BMS
Repairable	Yes (cover can be removed with screws)
Operating temperature	Discharge: -20 °C to +50 °C \| Charge: +5 °C to +50 °C
Storage temperature	-45 °C to +70 °C
Humidity (non-condensing)	Max. 95 %
Protection class	IP65
Mounting options	Strap or mounting brackets
Can be placed on their sides	Yes2)
Self-discharge rate	≤ 3 % per month @ 25 °C
Power connection	M8 (threaded inserts and bolts)
Dimensions (h x w x d) mm	235 x 648 x 162
Weight (est.)	37 kg
Safety	Cells: UL1973 UL9540A IEC62619
Safety	Battery: IEC 62619 (pending)
EMC	EN 61000-6-3, EN 61000-6-2
Automotive	ECE R10-6 (pending)
Performance	IEC 62620 (pending)
