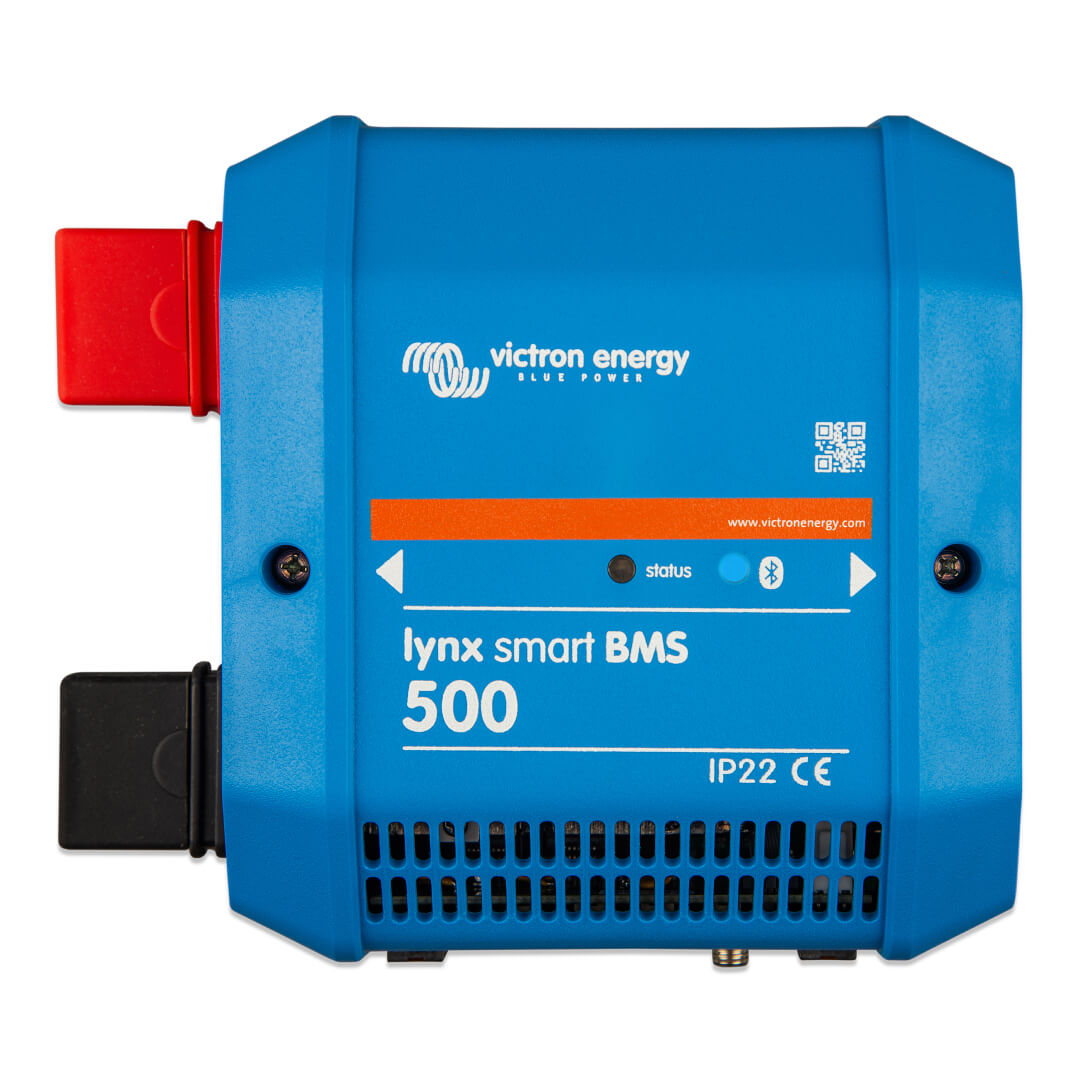

Lynx Smart BMS 500 NG (M10)
Lynx Smart BMS NG 500A (M10) for Victron Lithium NG batteries
Victron Lynx Smart BMS 500 NG (M10)
Features
- Battery management system for Victron Lithium NG batteries (12.8V, 25.6V and 51.2V)
- Built-in 500A safety contactor and pre-charge circuit for capacitive loads like inverters
- Up to 50 batteries (12V or 24V batteries) or 25 (48V batteries) per system
- Full battery monitor; Bluetooth with VictronConnect
- DVCC control through a GX device; ATC/ATD contacts and programmable relay
- M10 busbars: fits other M10 Lynx products
Where to use it
Lynx M10 distribution systems with Victron Lithium NG batteries in off-grid homes, RVs and boats. Not for Lithium Battery Smart: use the standard Lynx Smart BMS for those.
Dimensions
| Enclosure dimensions (h x w x d) | 190 x 180 x 80 mm |
| Weight | 1.9 kg |
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
