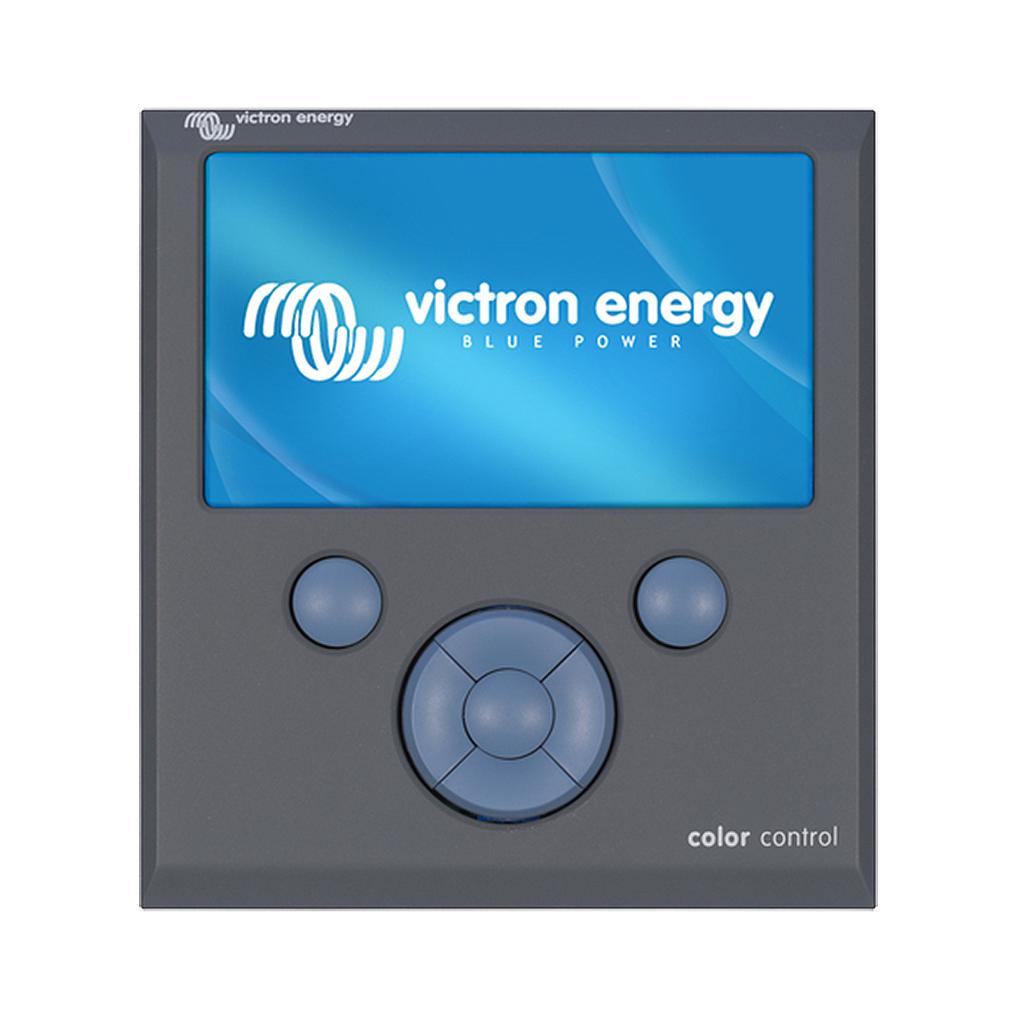

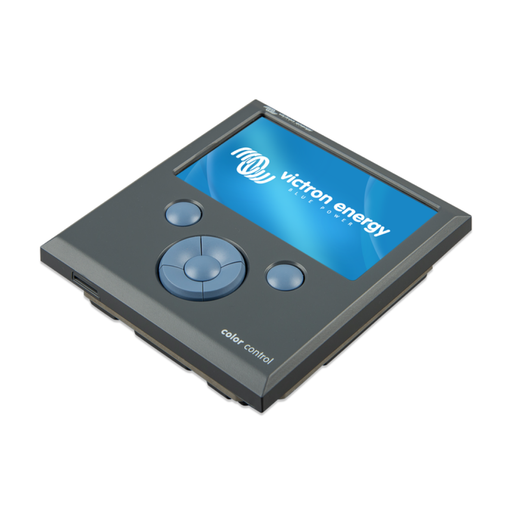

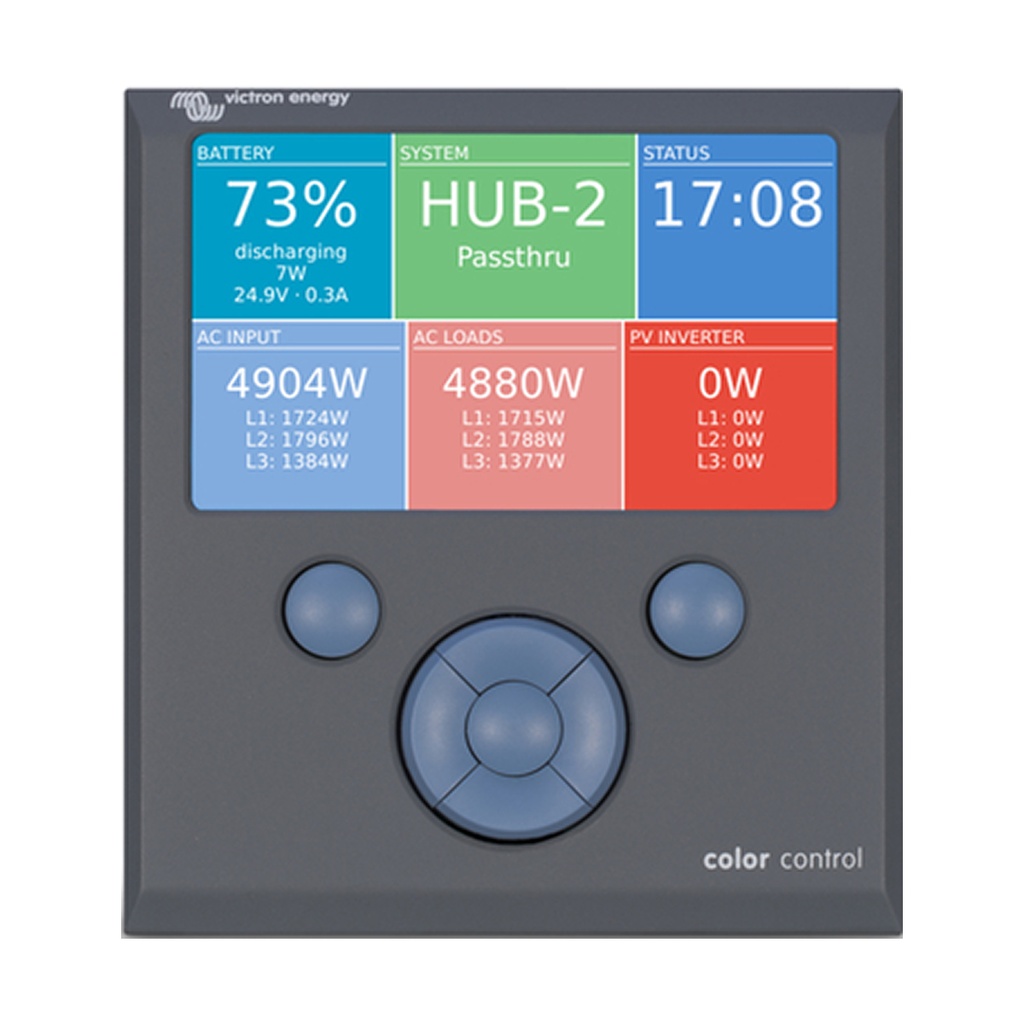

Victron Color Control GX (CCGX)
Features
- System Communication Centre
- Connects to Victron Remote Management (VRM) Service
- Provides Intuitive Control & Monitoring
- Maximise System Performance
The Color Control GX is the communication centre of your installation. It offers at-a-glance live information and lets you control all products connected to it. Full system control is gained - almost anywhere in the world - by accessing your Color Control GX using our free-to-use Victron Remote Management Portal (VRM).
Intuitive System Overview - All You Need to Know

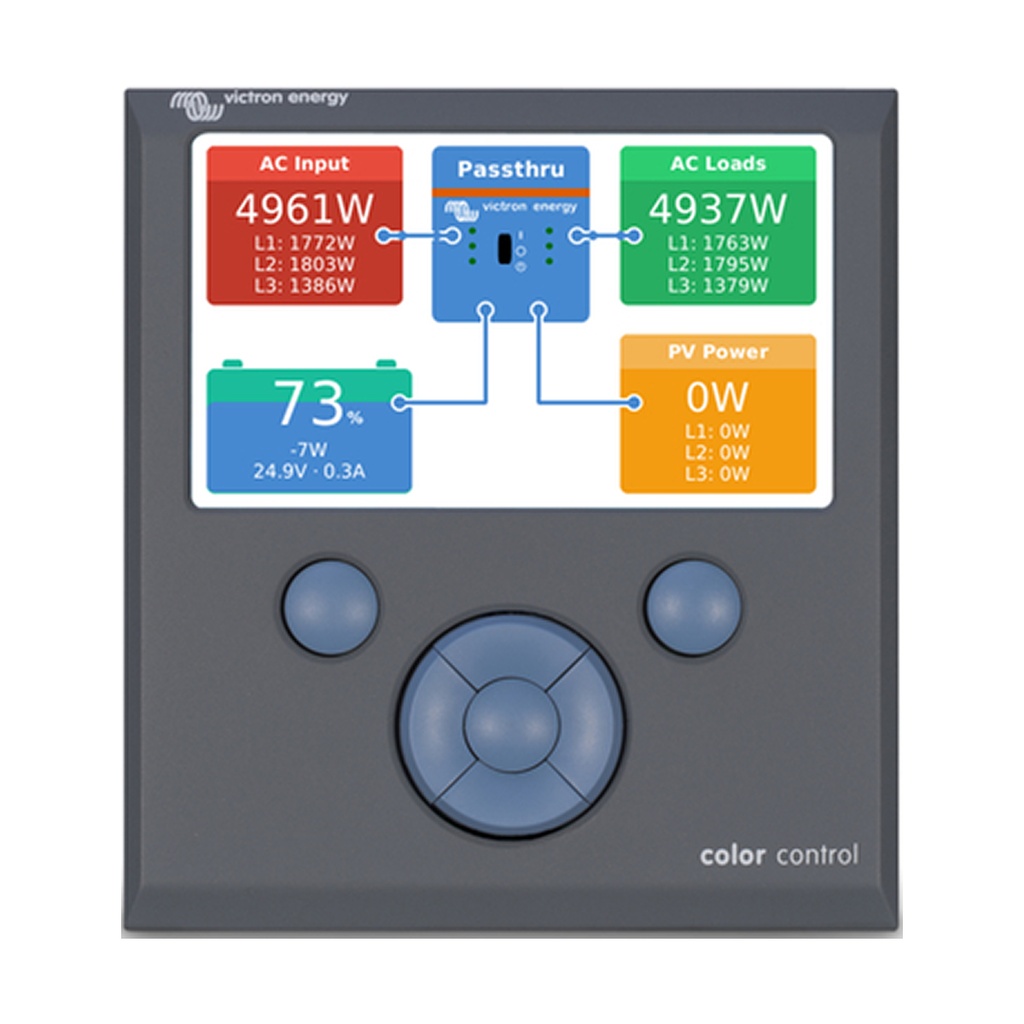

At a single touch, Color Control GX provides an instant overview of your system: battery state of charge; present power consumption; power harvest from PV; and power provision from mains/generators.
The Full Power of Victron Remote Management:
Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system components which are connected to either your CCGX or Venus GX. It allows remote users and installers to log in - from anywhere, at any time. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information.
Automatic Generator Start/Stop:
The Color Control GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance in the dead of night.

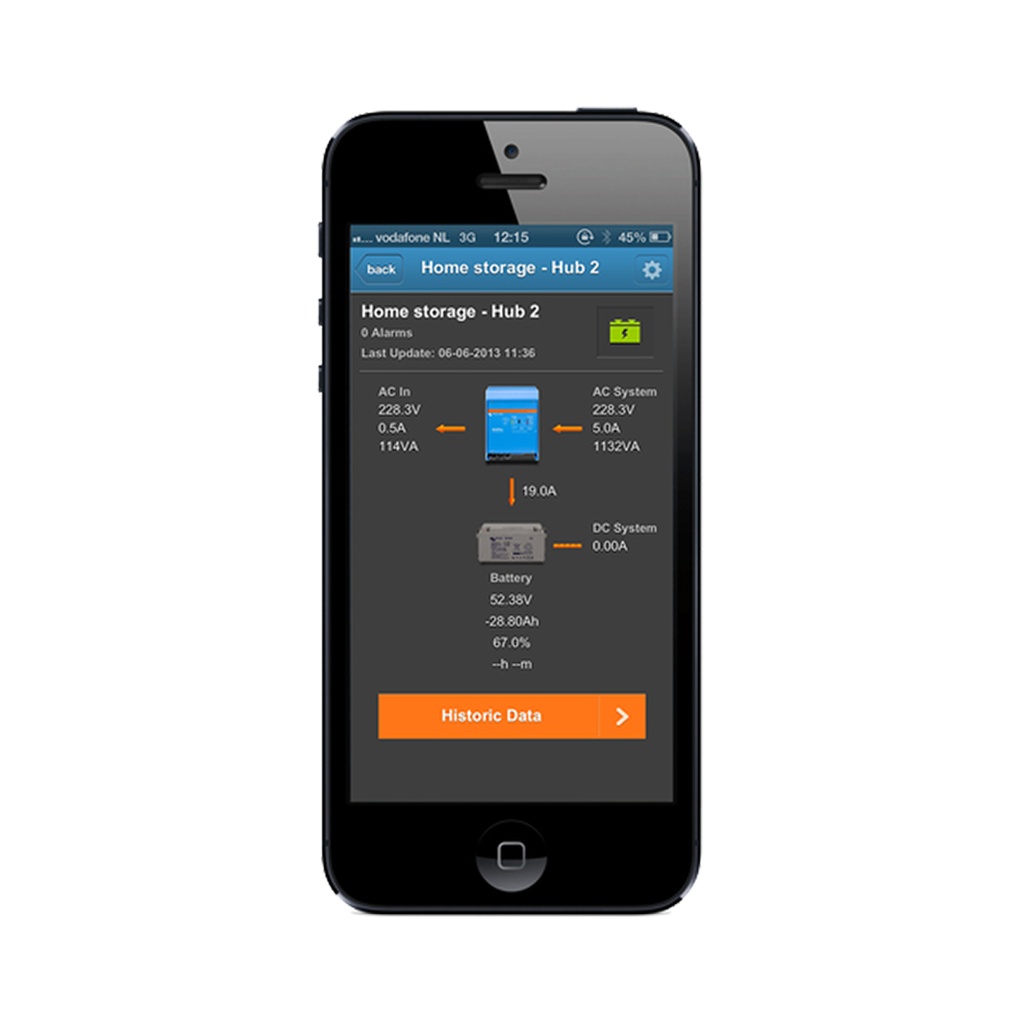

Remote Console - Control Everything from Anywhere:
A Remote Console feature is available. It's like carrying the front face of your CCGX control panel around on your phone, or other device.
Energy Storage Systems - 24-hour Monitoring:
The Color Control GX manages Energy Storage Systems. It keeps backup batteries at 100%; kicks in during power cuts; and diverts excess (solar) power to self-consumption - saving you money. For examples and more detailed information see the ESS (Energy Storage System) manual.
Remotely Monitor Your Boat or Motorhome Electrics:
Planning a trip? Remote monitoring of your Color Control GX allows you to make sure your boat or motorhome is ready to go. Colour Control GX also allows you to talk to connected equipment from other manufacturers.
Applications:
Marine
RV's
Motor Homes
4WD
Motor Vehicles
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Product Specifications
| Power supply voltage range | 8 – 70V DC |
Current draw | 12V DC |
| Display off | 140mA |
| Display at minimum intensity | 160mA |
| Display at maximum intensity | 245mA |
| Potential free contact | 3A / 30V DC / 250V AC (Normally open) |
| VE.Direct | 2 separate VE.Direct ports – isolated |
| VE.Can | 2 paralleled RJ45 sockets – isolated |
| VE.Bus | 2 paralleled RJ45 sockets – isolated |
| USB | 2 USB Host ports – not isolated |
| Ethernet | 10/100/1000MB RJ45 socket – isolated except shield |
| Modbus-TCP | Use Modbus-TCP to monitor and control all products connected to the Color Control GX |
| JSON | Use the VRM JSON API to retrieve data from the VRM Portal |
| Outer dimensions | 130 x 120 x 28mm |
| Operating temperature range | -20 to +50°C |
| Safety | EN 60950-1:2005+A1:2009+A2:2013 |
| EMC | EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive | E4-10R-053535 |
CCGX Menu

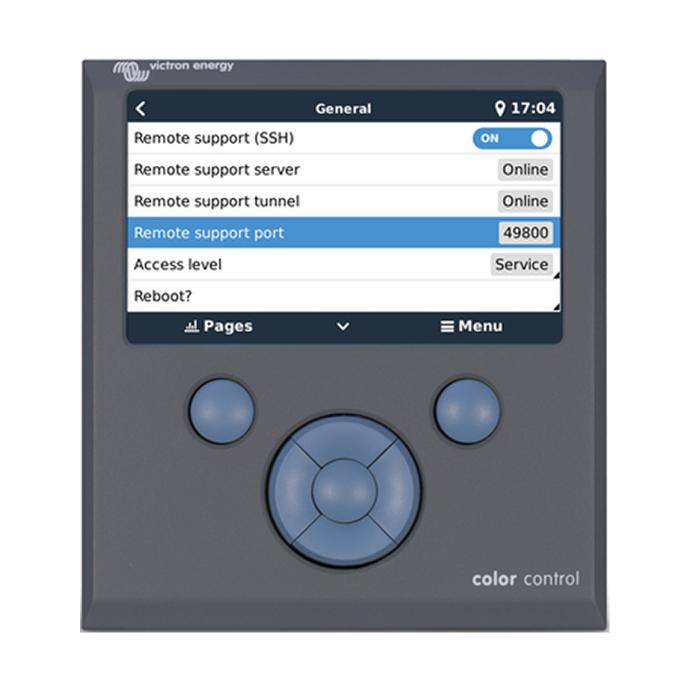

General

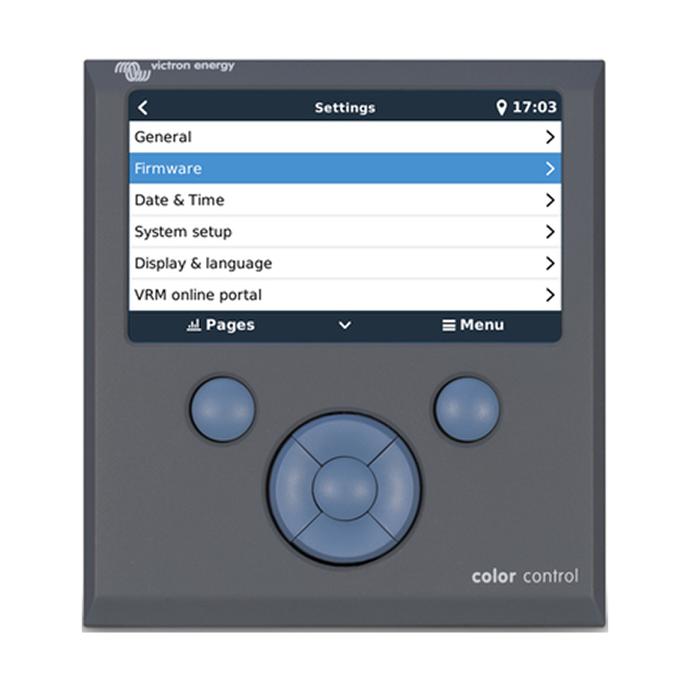

Settings

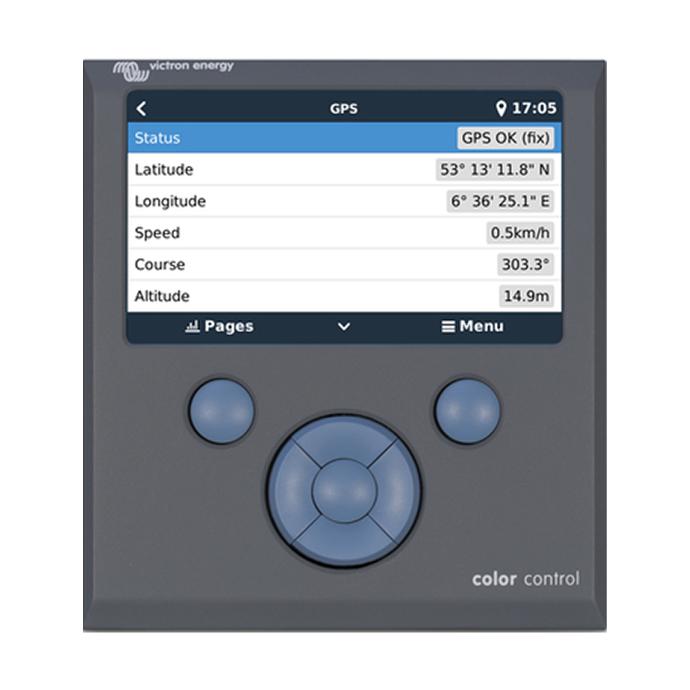

GPS

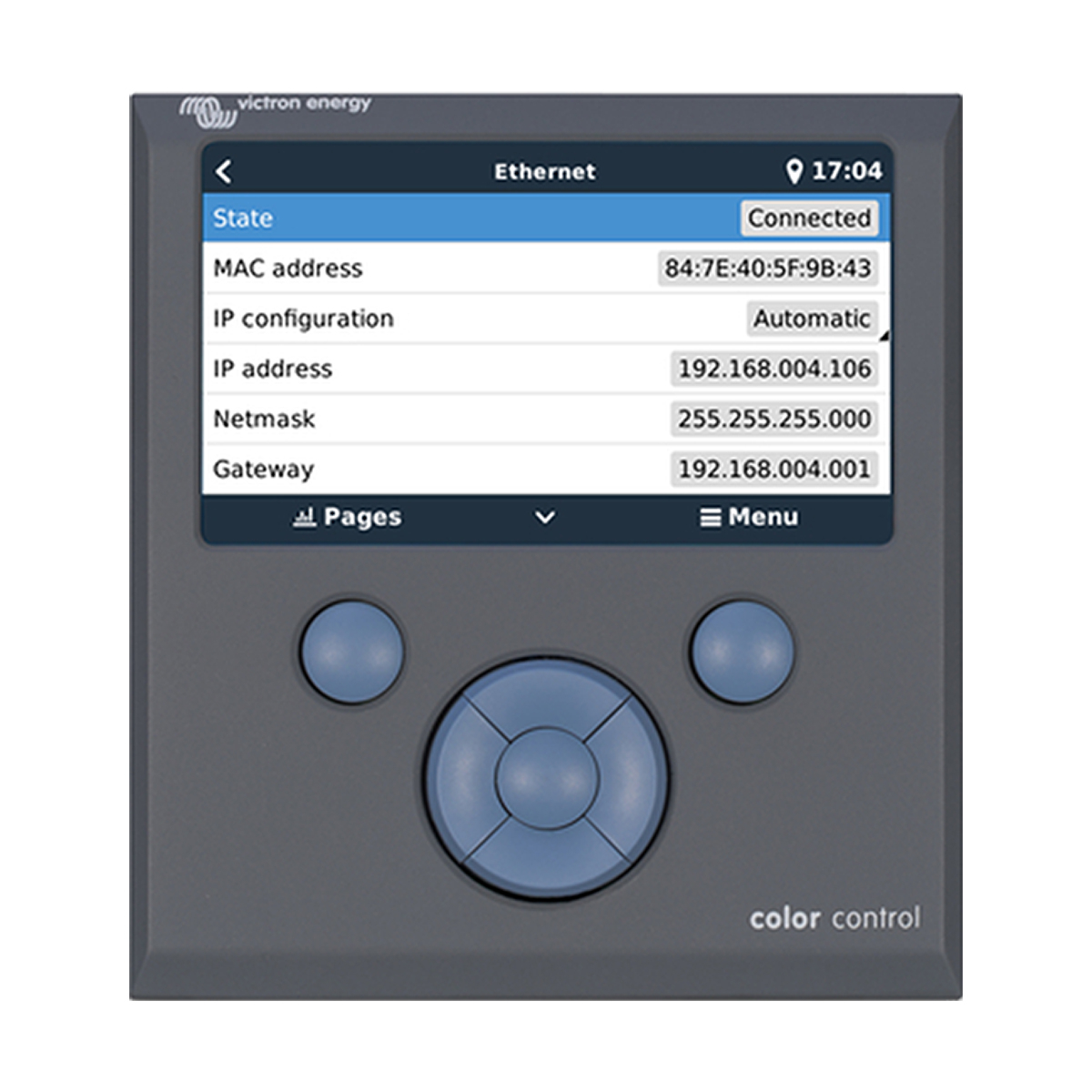

Ethernet

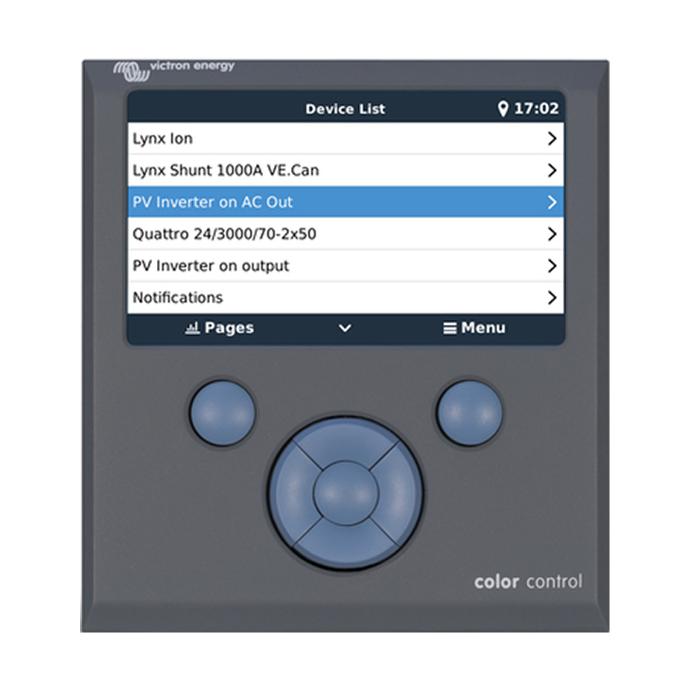

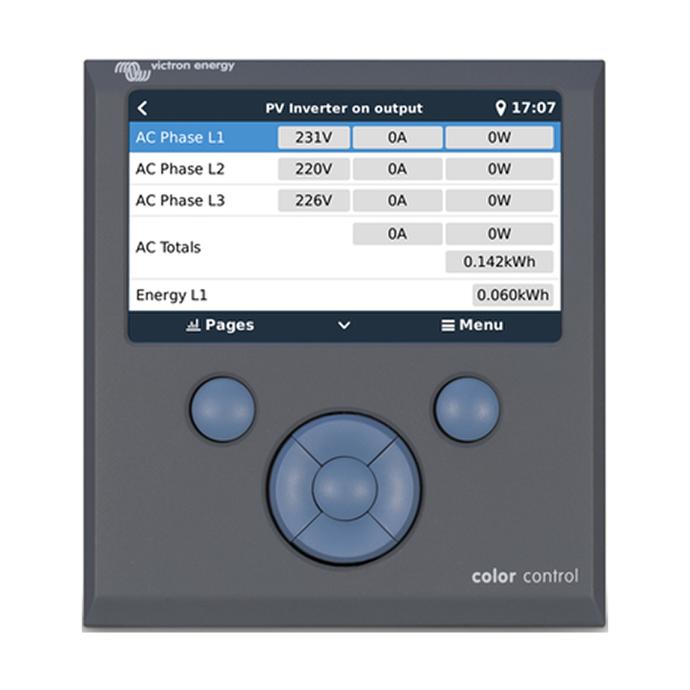

PV Inverter

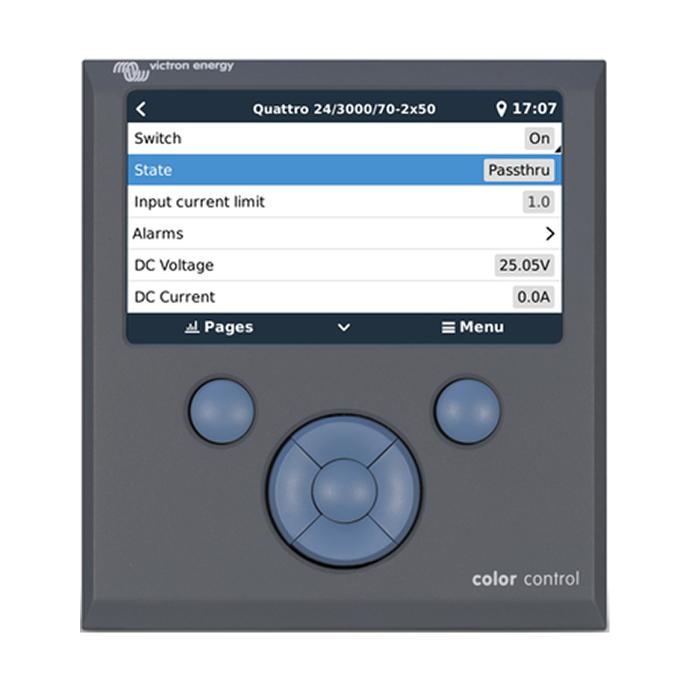

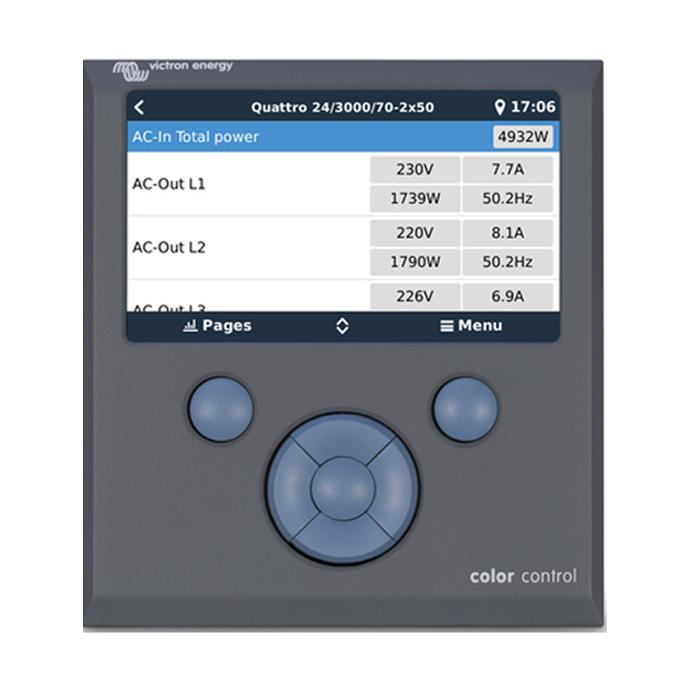

Quattro
Quattro

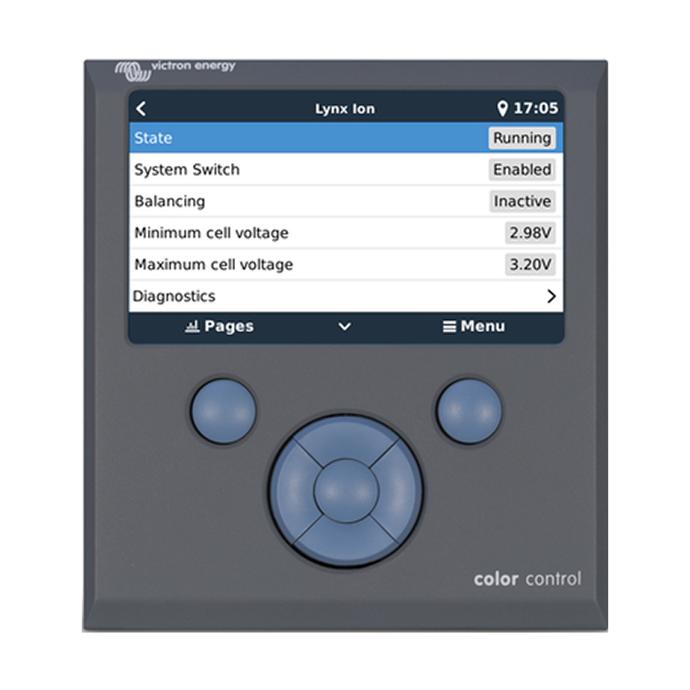

Lynx Ion
