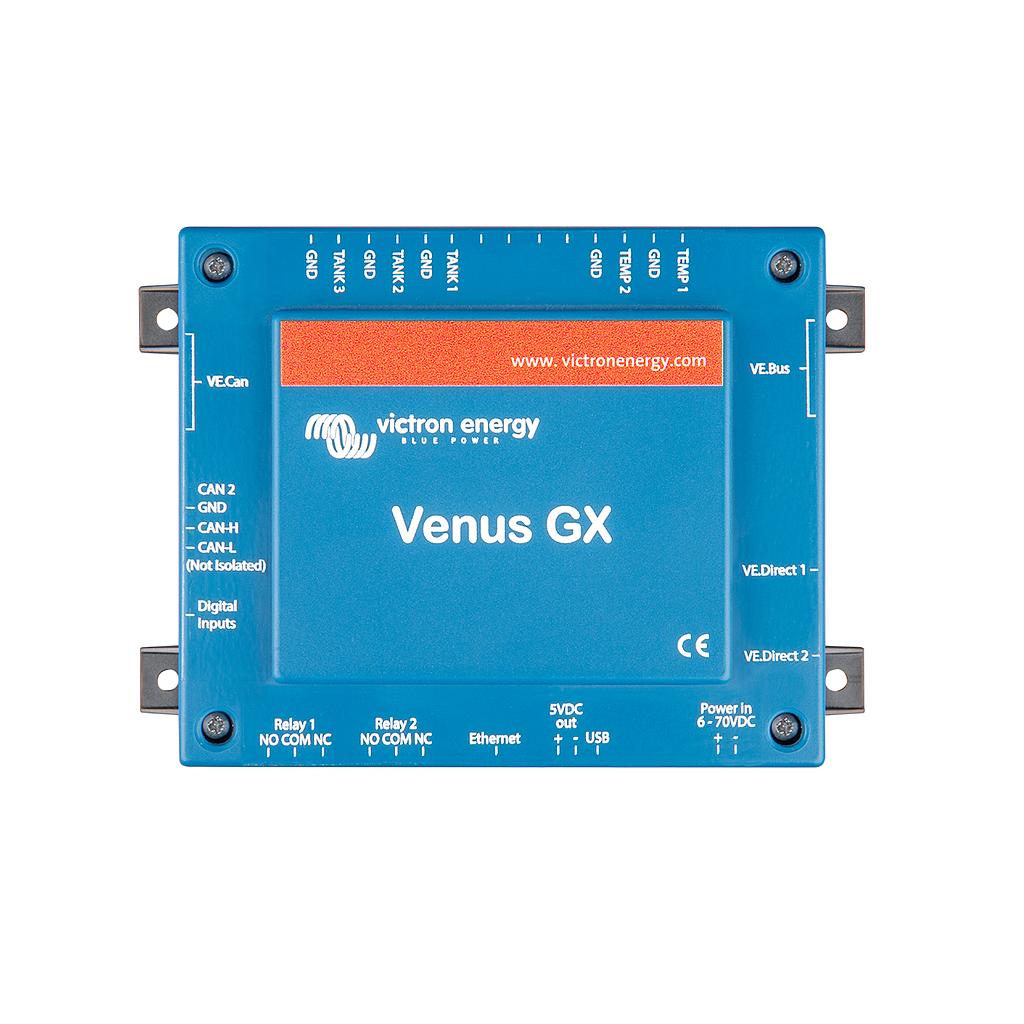

Victron Venus GX

Venus GX

Features

• System Communication Centre
• Connects to Victron Remote Management (VRM) Service
• Provides Intuitive Control & Monitoring

• Maximise System Performance

The Venus GX provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.

Venus GX Features:

VRM Online Portal:

All readings are forwarded to our free remote monitoring website: the VRM Online Portal. To get an impression, try the demo at https://vrm.victronenergy.com.

Remote Console on VRM:

The way to access the device for setting up, as well as monitoring, is via Remote Console. Either via VRM, via the built-in WiFi Access Point, or on the local LAN/WiFi network.

Automatic Genset Start/Stop:

A highly customizable start/stop system. Use state of charge, voltage, load and other parameters. Define a special set of rules for quiet times, and optionally a monthly test run.

Data Logging:

When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the Venus GX will store the data internally, for up to 48 hours. By inserting a micro SD card or USB stick, more data can be stored. These files can then be uploaded to the VRM Portal, or offline converted with the VictronConnect app, for analysis.

Supported Products:

• Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection).
• EasySolar 1600VA
• BlueSolar MPPT Solar Chargers with a VE.Direct port.
• BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, the all information is combined as one. See also our blog post about synchronizing multiple MPPT 150/70 solar chargers.
• The BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct Cable for this.
• The BMV-600 family can be connected to the VE.Direct ports on the Venus GX. Requires an accessory cable.
• Lynx Ion + Shunt
• Lynx Ion BMS
• Lynx Shunt VE.Can
• Skylla-i battery chargers
• NMEA2000 tank sensors
• A USB GPS can be connected to the USB port. The data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position.
• Fronius PV Inverters

(When more than two VE.Direct products must be connected, USB can be used)

Internet Connection:

The Venus GX can be connected to the internet with an Ethernet cable and via Wi-Fi. The Venus GX has no internal cellular modem: there is no slot for a sim card. Use an off-the-shelf GPRS or 3G router instead. See the blog post about 3G routers.

Tank Level Inputs:

The tank level inputs are resistive: connect them to a resistive tank sender. Such tank senders are not supplied by Victron. The tank level ports can each be configured to work with either European tank senders (0 - 180 Ohm), or US (240 - 30 Ohm).

Other Product Highlights:

• The Venus GX can automatically update itself from the internet when there is a new software version available.
• Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic.
• Use the Venus GX as a Modbus-TCP gateway to all connected Victron products. See our Modbus-TCP FAQ for more information.
• Powered by the Venus OS – embedded Linux: https://github.com/victronenergy/venus/wiki/sales-pitch

Applications:

Marine

RV's

Motor Homes

4WD

Motor Vehicles
