Components:

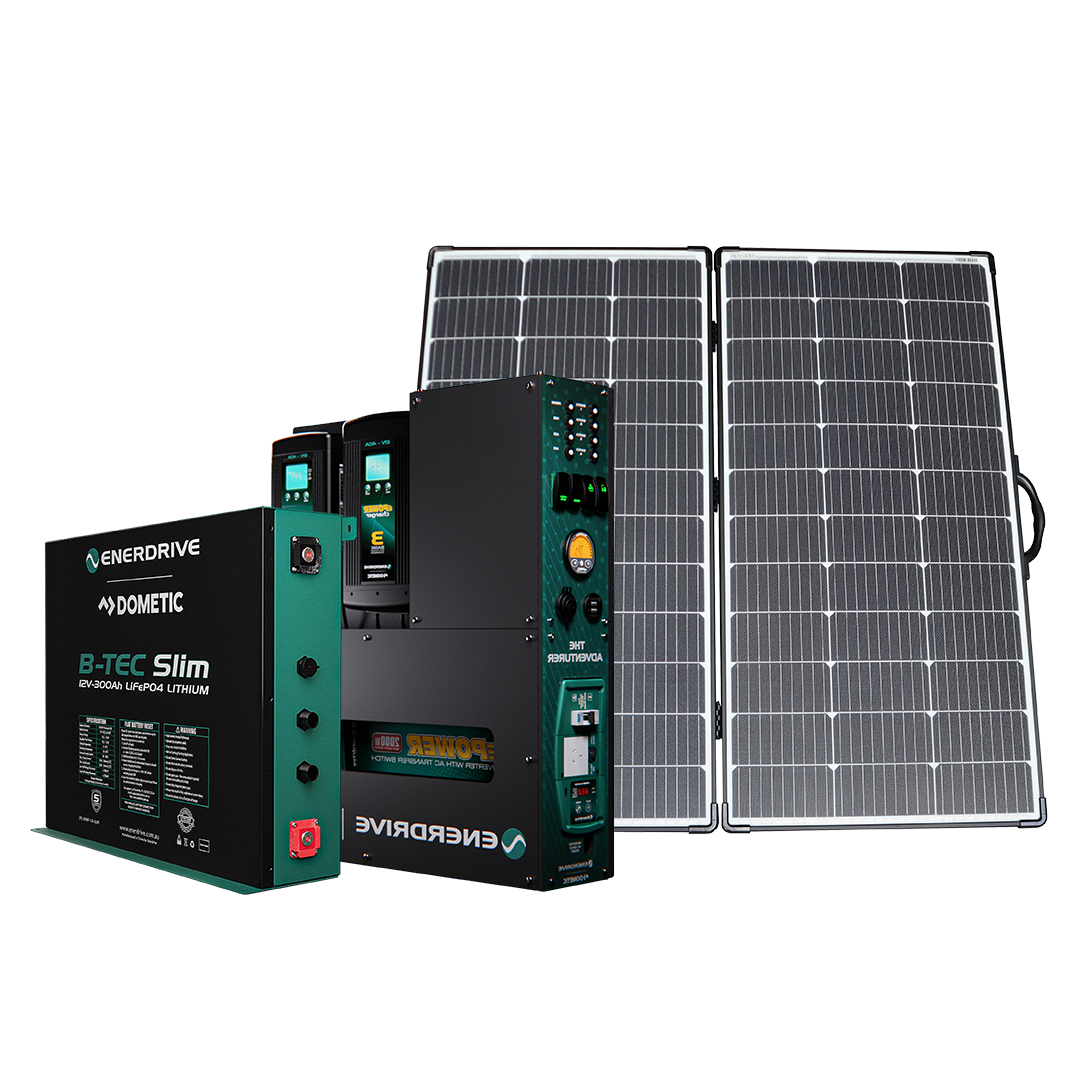

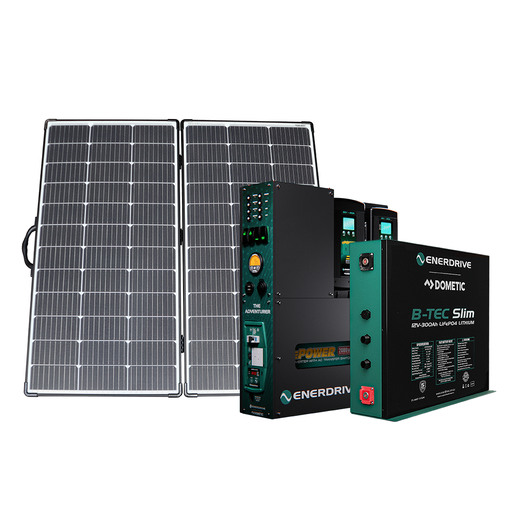

Featuring the Enerdrive Adventurer Power System, Enerdrive 300Ah B-TEC Slim Lithium Battery and Alvolta 220W Ultra Portable Solarcase, this kit is the ultimate off-grid portable power solution. Designed by industry-leading manufacturers and cultivated by our team of experts, this portable off-grid power kit offers a complete solution for any camper, caravan or 4WD application.
Enerdrive’s Adventurer Power System is the foundation for this kit, offering an all-encompassing power solution. Designed to effortlessly fit into your setup, the Adventurer features a sleek, design with access to all the important components in the front-facing panel, allowing you more space within your setup. The Adventurer system offers multiple outputs, allowing the system to charge appliances that use up to 3000W of power.
This power system seamlessly pairs with Enerdrive’s 300Ah B-TEC Slim Lithium Battery. Designed for use in deep cycle applications, this battery is perfect for camper trailers, 4WDs (AUX battery) and caravans. Similarly to the Voyager system, this battery features a slim design, minimising the space it takes up in your setup. Additionally, the 300Ah B-TEC Slim Lithium Battery offers built-in Bluetooth capability and features an Internal Battery Management System (BMS) for easy monitoring.
The kit is rounded out with the 220W Portable Solarcase from Alvolta. Featuring top-tier monocrystalline solar cells in a lightweight, compact and sleek frame, this ultra high-powered solarcase is a must-have for off-grid power. Additionally, the solarcase and included cabling accessories each come in a protective carry case, making it easy, safe and convenient to travel with.
Our ultimate off-grid portable power kit offers you a complete power station, allowing you to confidently travel off-grid for longer.
Applications
Adventurer 1 (Right) | |
DC Battery Charger | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) |
AC Battery Charger | 12V 40A AC Battery Charger |
Solar Charge Input | Included |
Lithium Battery Ready | Included |
Inverter | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch |
Battery Monitor | ePRO+ Battery Monitor |
Pre-Wired Circuit Breakers for Main Power Equipment | Included |
Pre-Wired 70mm² Main Battery Cable with Main DC Fuse | Included |
Switches | 4 x Contura Water Resistant Rocker Switches (Customisable) |
USB Output Sockets | Twin USB-A 2.4A Hi Amp Sockets |
Cigarette Socket Output | 1 |
RCD Protected Power Point | 1 |
Battery Reset Button | Included |
Ignition Input for Smart Alternator Equipped Vehicles | Included. Requires Connection |
2000W Inverter 200A Input Circuit Breaker | Included |
Dimensions | 630L x 155W x 665H mm |
Weight | 18kg |
Orientation | Right |
Warranty | 5-Years |
300Ah B-TEC Slimline Lithium Battery | |
Nominal Voltage | 12.8V |
Nominal Capacity | 300Ah |
Charge Cycles (DOD - 80%) | >2500 Cycles |
Charge Specifications | |
Battery Charge Temperature | 0 - 45°C |
Nominal Charge Voltage | 14.2 - 14.6V |
Standby Voltage (Float) | 13.5 - 13.8V |
Maximum Charge Current | 150A at 25°C for 30mins |
Recommended Charge Current for Maximum Life | 60 - 120A |
Discharge Specifications | |
Battery Discharge Temperature | -20 - +60°C |
Battery Output Voltage Range | 11.0 - 14.6V |
Maximum Discharge Current | 250A at 25°C ± 5°C for 30mins |
Pulse Discharge Current | 450A for 1sec |
Discharge Cut-off Voltage | <11.2V |
Circuit Protection | The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery. |
Over-Charge Protection | |
Over-Charge Protection per Cell | 3.75V ± 0.03V |
Over-Charge Release per Cell | 3.60V ± 0.05V |
Over-Charge Release Method | Discharge Below Release Voltage |
Over-Discharge Protection | |
Over-Discharge Protection per Cell | 2.80V ± 0.05V |
Over-Discharge Release per Cell | 3.20V ± 0.05V |
Over-Discharge Release Method | Apply Charge/Voltage >12.8V |
Over Current Protection | |
Discharge Over Current | 280A for 25sec - 400A for 3.5sec |
Protection Reset Time | 5sec Auto Release |
Over Current Release Method | Disconnect Load |
Over Temperature Protection | |
Battery Discharge Over Temperature Protection | To 65°C ± 5°C |
Battery Discharge Over Temperature Release | At 50°C ± 5°C |
Battery Charge Over Temperature Protection | To 55°C ± 5°C |
Battery Charge Over Temperature Release | At 45°C ± 5°C |
Short Circuit Protection | Auto Release After 5sec |
Mechanical Specifications | |
Dimensions | 630L x 498H x 176.5D mm |
Weight | 48kg |
Case Construction | Powder-Coated Zinc Plate |
Storage Information | |
Temperature Range | <30 days: -20°C - +60°C >30 days: -10°C - +45°C |
Humidity Range | 5 - 75% Relative Humidity |
Warranty | 5-Years |
220W Solarcase | |
Electrical Data | |
Maximum Power | 220W |
Optimum Operating Voltage | 20.9V |
Optimum Operating Current | 10.53A |
Open Circuit Voltage | 24.5V |
Short Circuit Current | 11.05A |
Module Efficiency | 22.8% |
Maximum System Voltage | 200V DC |
Power Tolerance | ±3% |
Thermal Data | |
Operating Temperature Range | -20°C to +70°C |
Temperature Coefficient (Pmax) | -0.38%/°C |
Temperature Coefficient (Voc) | -0.36%/°C |
Temperature Coefficient (Isc) | -0.05%/°C |
Mechanical Data | |
Solar Cells | Monocrystalline 166mm Cells |
No. of Cells | 72 (3 x 12 x 2) |
Dimensions | 1095 x 1072 x 25mm |
Weight | 6.33kg |
Frame | Anodized Aluminium |
Junction Box | IP68 Rated |
Connectors | MC4 Style |
Output Cables | 4mm², 900mm |
