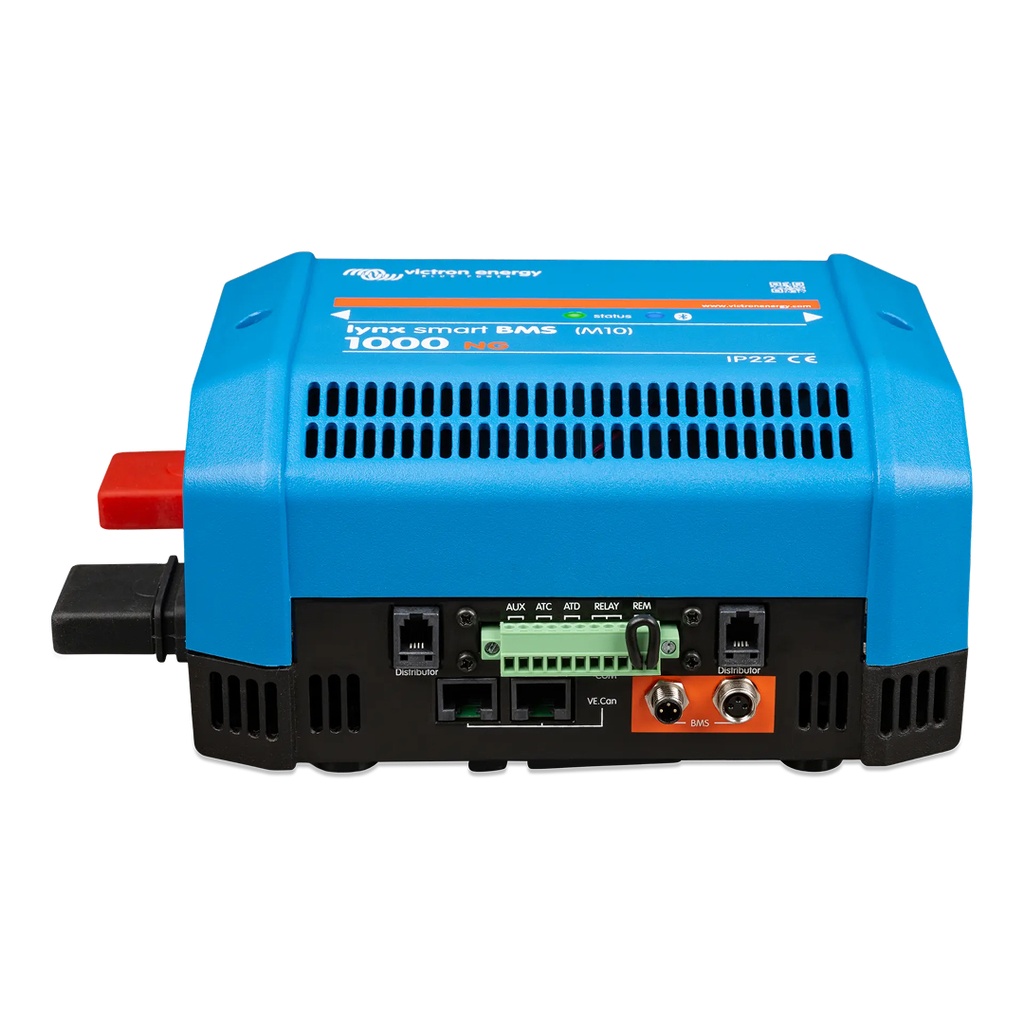

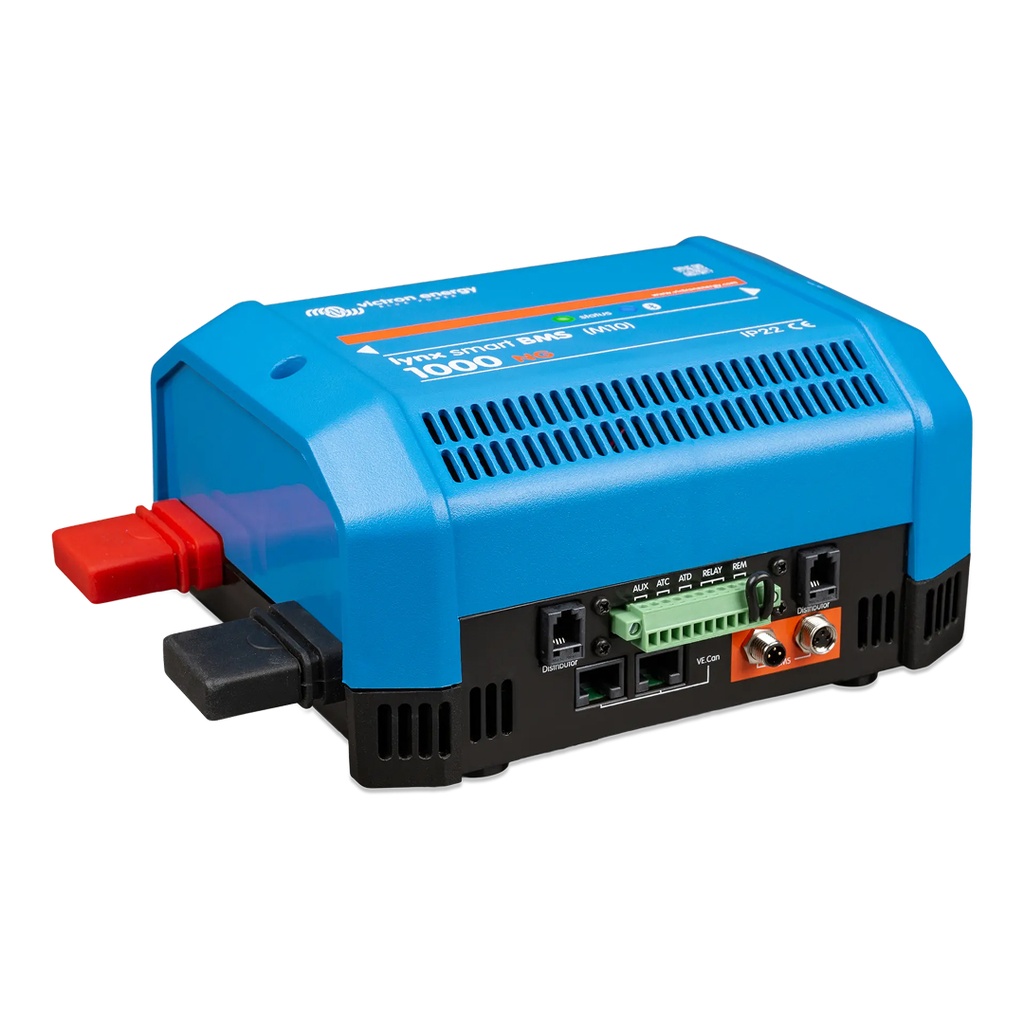

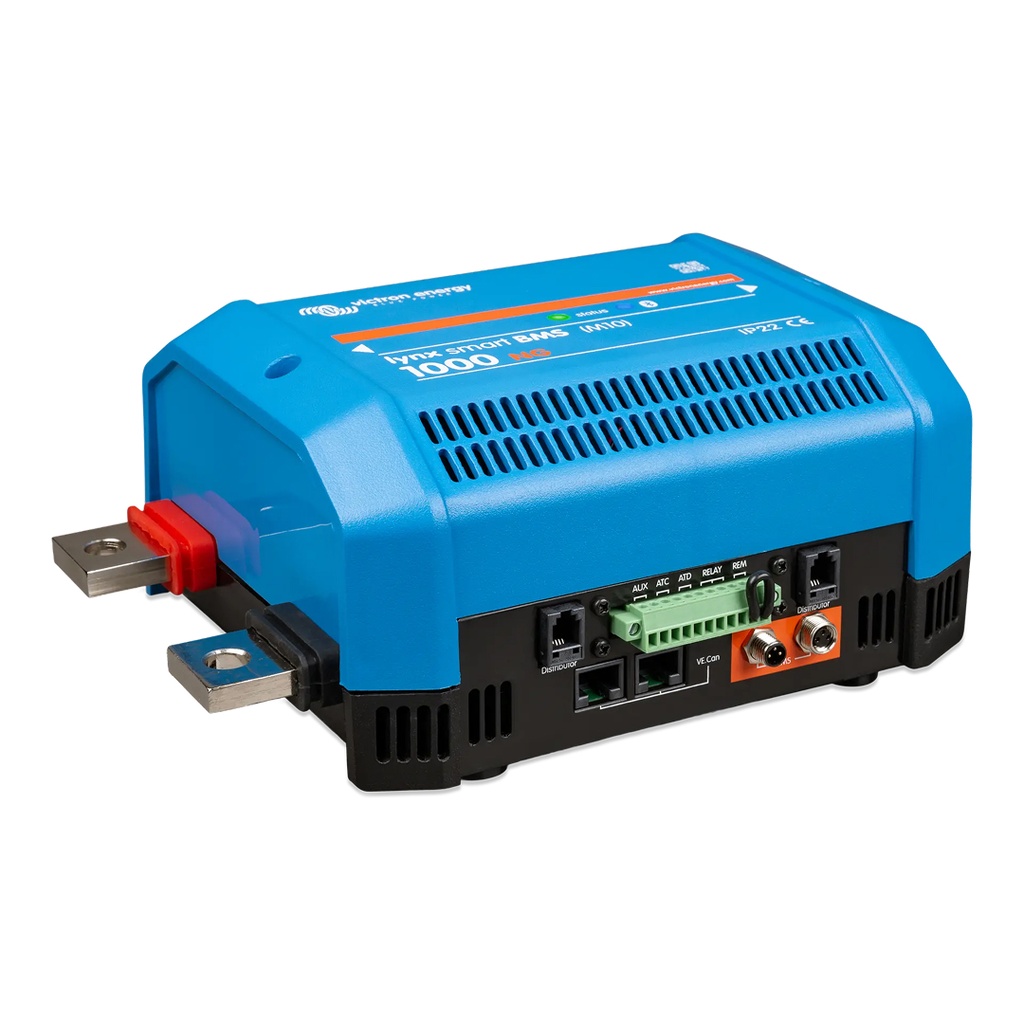

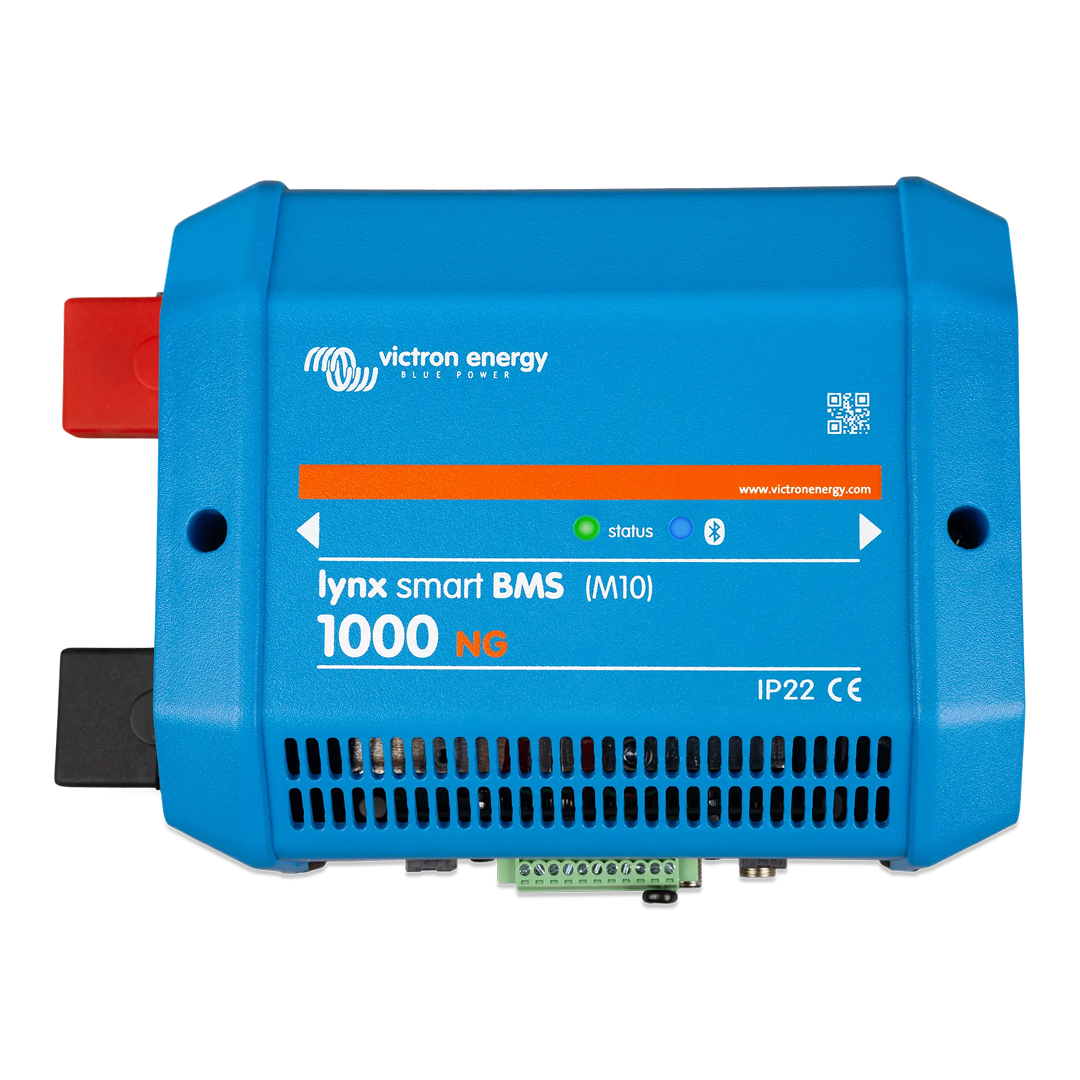

Lynx Smart BMS NG
|
1000 A (M10) (LYN034170310)
|
|
POWER
| |
|
Battery voltage range
|
9 – 60 VDC
|
|
Maximum input voltage
|
75 VDC
|
|
Supported system voltages
|
12, 24 or 48 V
|
|
Reverse polarity protection
|
No
|
|
Main safety contactor continuous current rating
|
1000 A continuous
|
|
Main safety contactor peak current rating
|
1200 A for 5 minutes
|
|
Power consumption OFF mode
|
0.3 mA for all system voltages
|
|
Power consumption in Standby mode
| Approximately 0.6 W (50 mA at 12 V)
|
|
Power consumption in ON mode
|
Approximately 4.2 W (350 mA at
12 V) depending on the state of
the relays
|
|
Minimum load resistance for pre-charging
|
10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems
|
|
AUX output maximum current rating
|
1.1 A continuous, protected by resettable fuse
|
Allow-to-charge port Maximum current rating
|
0.5 A at 60 VDC, protected by resettable fuse
|
Allow-to-discharge port Maximum current rating
|
0.5 A at 60VDC, protected by resettable fuse
|
Alarm relay (SPDT)
Maximum current rating
|
2 A at 60 VDC
|
CONNECTIONS
| |
|
Busbar
|
M10 (Torque: 33 Nm) – can be combined with all M10 Lynx products
|
|
VE.Can
|
RJ45
|
|
I/O
|
Removable multi-connector with screw terminals
|
|
Battery BTV cables
|
Male and female circular 3-pole connector with M8 screw ring Up to 50 batteries can be connected in one system
|
|
Lynx Distributor fuse monitoring (up to 4 modules)
|
RJ10 (cable ships with each Lynx Distributor)
|
PHYSICAL
| |
|
Enclosure material
|
ABS
|
Enclosure dimensions (h x w x d)
|
230 x 180 x 100 mm
|
Unit weight
|
2.7 kg
|
|
Busbar material
|
Tinned copper
|
|
Busbar dimensions (h x w)
|
8 x 30 mm
|
ENVIRONMENTAL
| |
|
Operating temperature range
|
-40 °C to +60 °C
|
|
Storage temperature range
|
-40 °C to +60 °C
|
Humidity
|
Max. 95 % (non-condensing)
|
Protection class
|
IP22
|
STANDARDS
| |
Safety
|
EN-IEC 63000:2018
|
EMC
|
EN-IEC 61000-6-3:2007/A1:2011/AC:2012
|
QMS
|
NEN-EN-ISO 9001:2015
|
