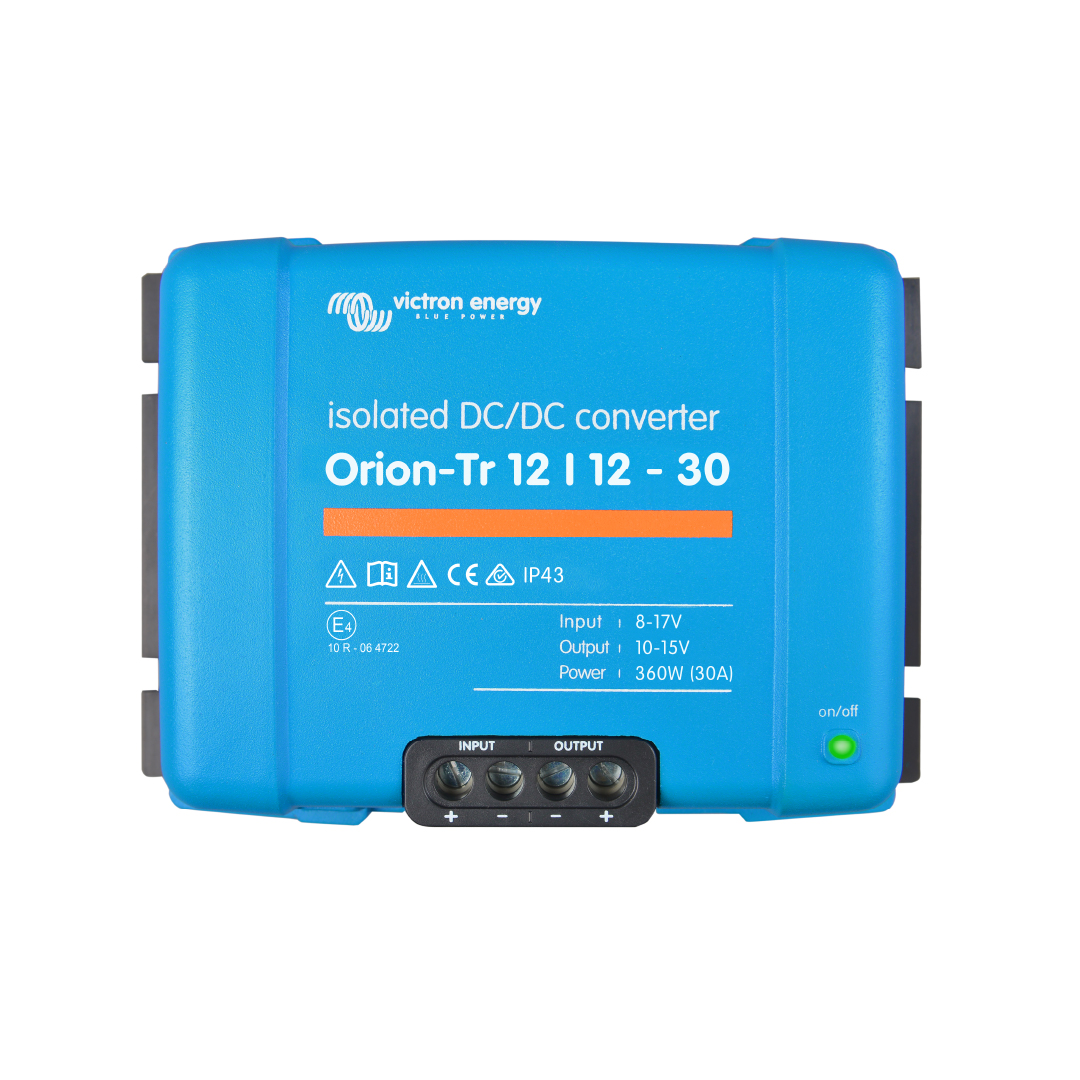

Victron Orion-Tr 12/12-30A (360W) Isolated DC-DC Converter
12 V to 12 V 30 A isolated DC-DC converter with adjustable output
Victron Orion-Tr 12/12-30A (360W) Isolated DC-DC Converter
Features:
- 12 V to 12 V isolated DC-DC converter, 30 A (360 W)
- Galvanically isolated: 200 V DC between input, output and case
- Adjustable output voltage; stable output across the input range (buck-boost)
- Remote on/off terminal: no need for a high-current switch
- Short circuit proof
- Connect any number in parallel for more current
- Screw terminals, no special tools needed
- Not intended for battery charging - use an Orion-Tr Smart for that
Where to use it
The Orion-Tr 12/12-30A powers 12 V equipment from a 12 V supply, for example radios, electronics, pumps and lights in trucks, boats, motorhomes and off-grid systems.
The isolated design keeps the input and output separate, which is preferred on boats and where equipment needs its own clean supply or separate ground.
Dimensions
| Height | 130 mm |
| Width | 186 mm |
| Depth | 80 mm |
| Weight | 1.8 kg |
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications:
Marine
RV's
Motor Homes
4WD
Motor Vehicles
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
