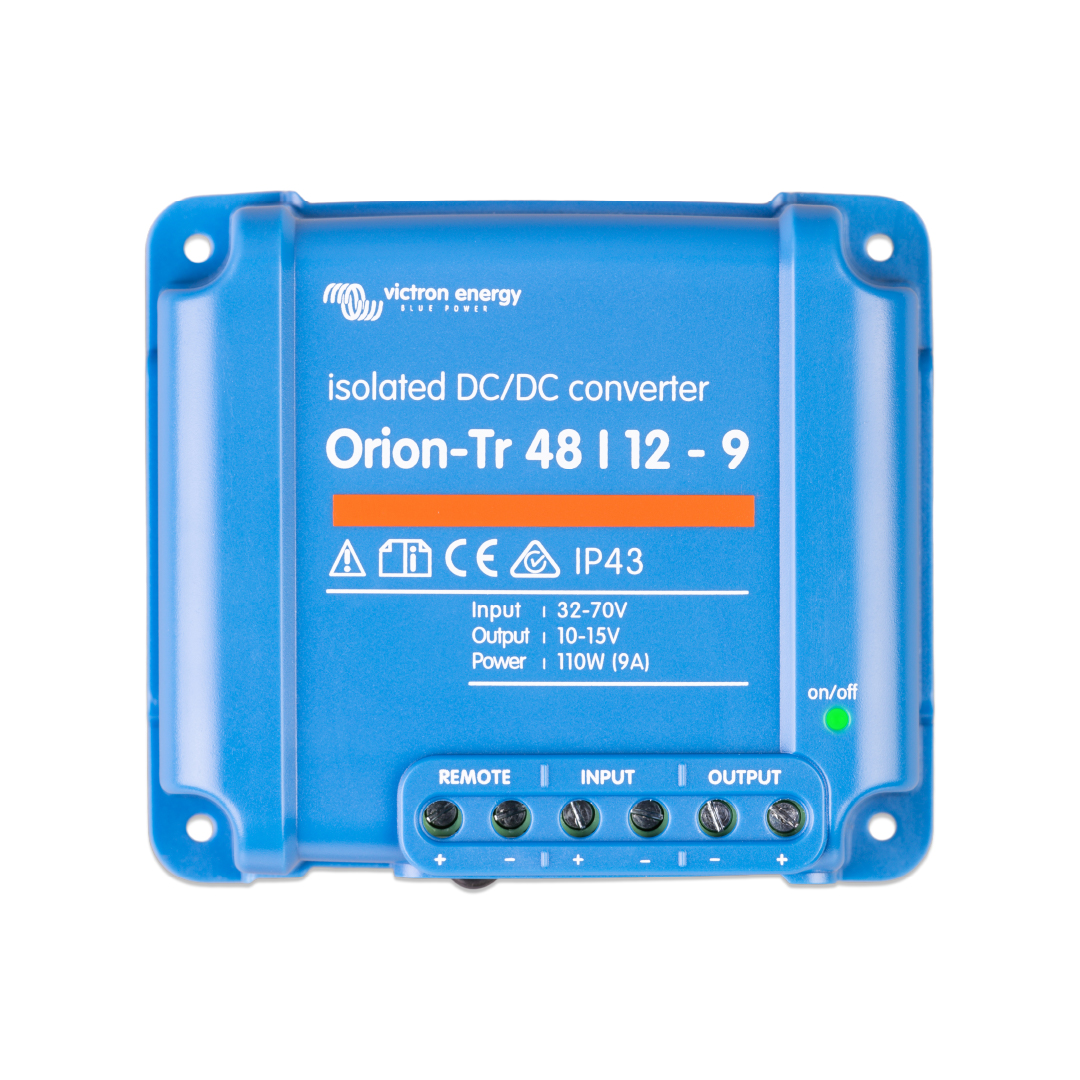

Victron Orion-Tr 48/12-9A (110W) Isolated DC-DC Converter
Orion-Tr 48/12-9A Isolated DC-DC Converter
Features:
- 48V - 12V / 9Amps
- DC-DC Converter
- IP43 Protection
- Adjustable Output Voltage
- Short-Circuit Proof
Remote On/Off:
The remote on-off eliminates the need for a high-current switch in the Input wiring. The remote on-off can be operated with a low-power switch or, for example, the engine run/stop switch (see manual).
Adjustable Output Voltage:
The converter can also be used as a battery charger, for example, to charge a 12-volt starter or accessory battery in an otherwise 24-volt system.
High Temperature Protected:
The output current will reduce at high ambient temperatures.
IP43 Protection:
When installed with the screw terminals oriented downward.
Screw Terminals:
No special tools are needed for installation.
Input Fuse (non-replaceable):
On 12V and 24V input models only.
Applications:
Marine
RV's
Motor Homes
4WD
Motor Vehicles
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
