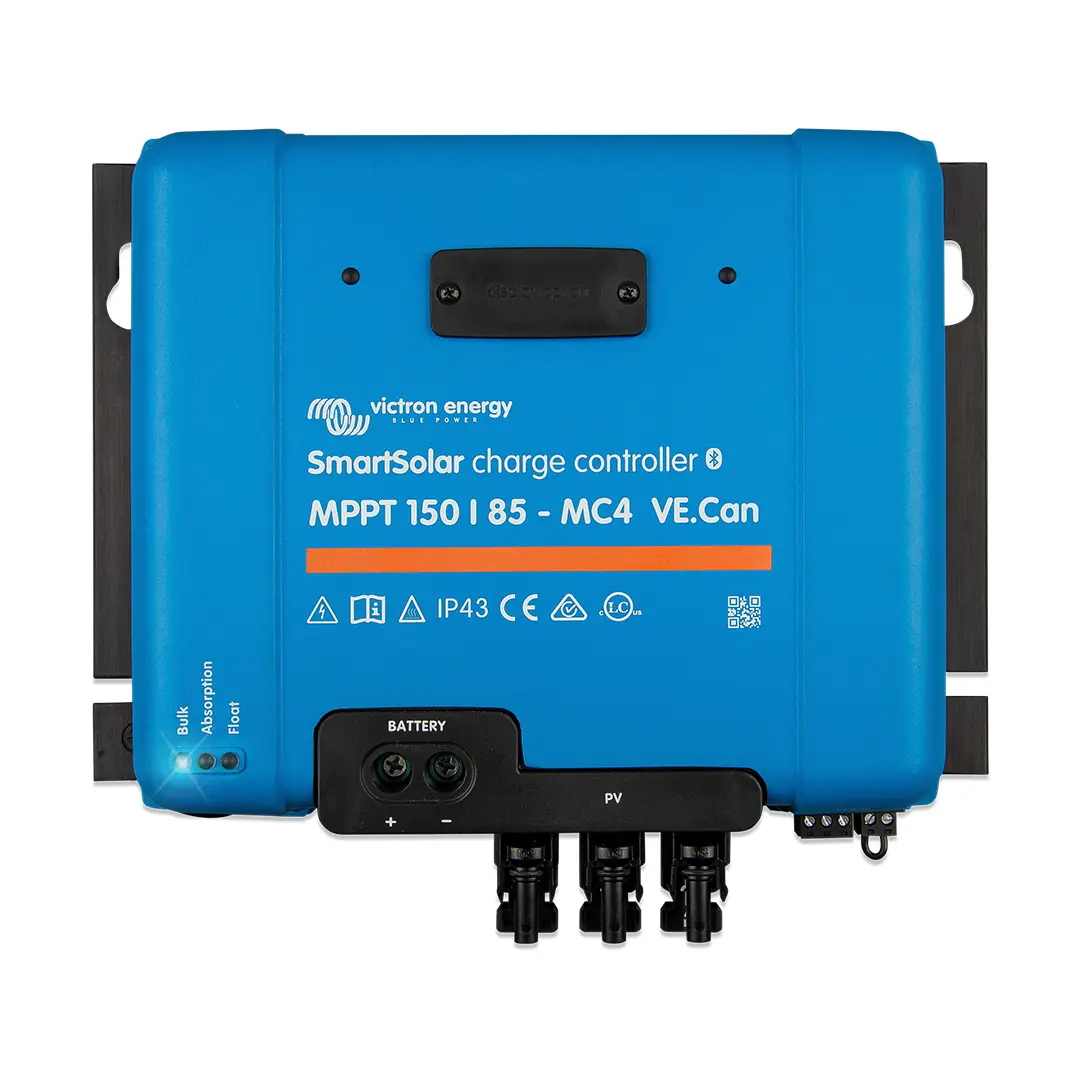

Victron 150/85 SmartSolar MPPT MC4 VE.Can Controller
150 V / 85 A maximum power point tracking solar charge controller with MC4 terminal & VE.Can connections for 12 - 48 V systems
Victron SmartSolar MPPT MC4 VE.Can Solar Charge Controller
Features
- Maximum power point tracking solar charge controller
- Built-in Bluetooth for ease of programming & monitoring
- 150 V
- 85 A
- Suitable for 12 / 24 / 48 V systems
- Internal temperature sensor
- Direct communication port for wired data connection
- Over-temperature sensor
- Flexible charge algorithm
- VE.Direct & VE.Can communication ports
- MC4 terminal connections
- Intelligent battery management
- Programmable battery charge algorithm
- Additional SmartSolar LCD display available
Where to use it
A Victron SmartSolar MPPT charge controller is used in off-grid solar power systems to maximise energy harvest, particularly in mobile applications like RVs, boats, and campervans, or remote, off-grid cabins.
Engineered for mobile life, they handle vibration and provide efficient charging for 12 - 48 V systems. Its built-in Bluetooth allows for easy monitoring via the VictronConnect app, making it ideal for systems with variable shading or varying light conditions.
Dimensions
Width | 295 mm |
Height | 246 mm |
Depth | 103 mm |
Weight | 4.5 kg |
Safety features
- EN/IEC 62109-1
- UL 1741
- CSA C22.2
- IP43 rated
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
