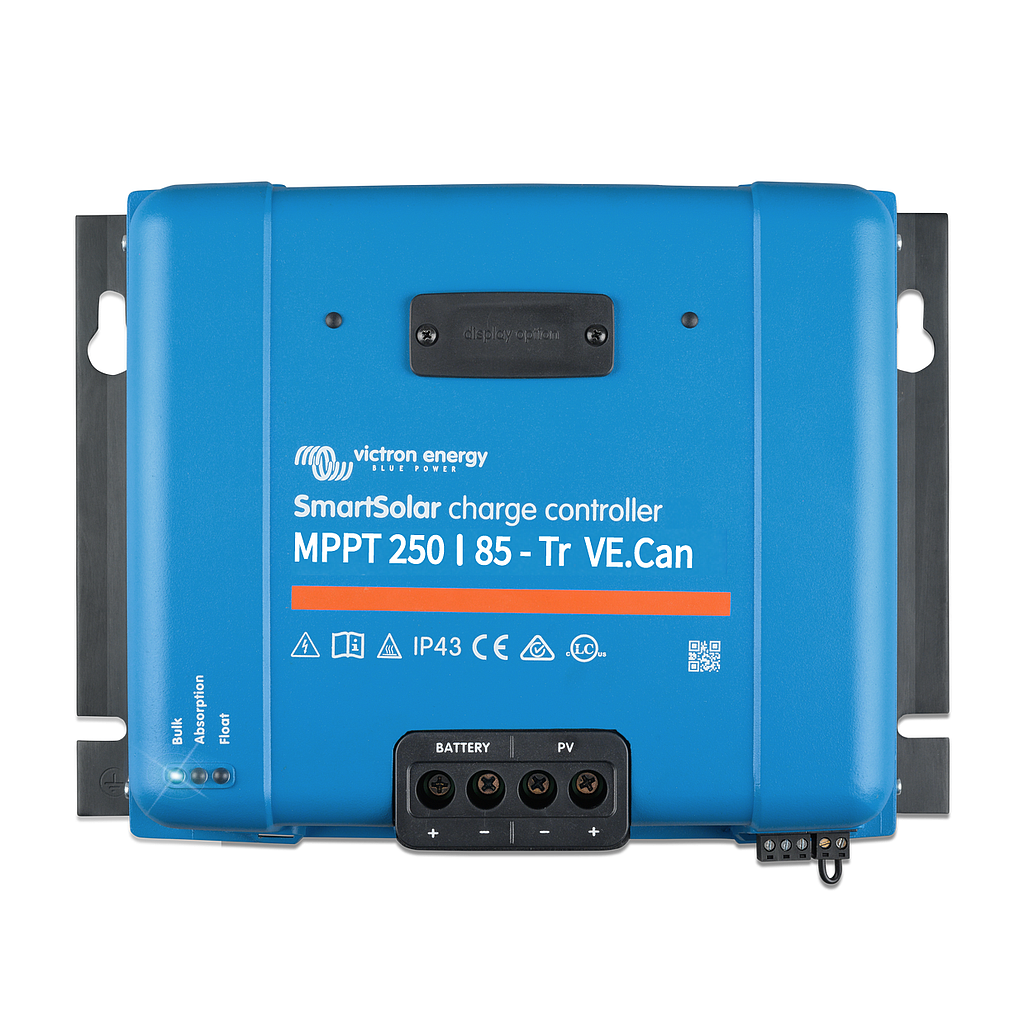

Victron SmartSolar MPPT 250/85 Tr VE.Can
250V / 85 A MPPT solar charge controller with Bluetooth and VE.Can for 12-48V systems
Victron SmartSolar MPPT 250/85 Tr VE.Can
Features
- 250V / 85 A MPPT solar charge controller
- Suits 12, 24, 36 and 48V batteries (12/24/48V auto-select, 36V set manually)
- Built-in Bluetooth: set up and monitor with VictronConnect
- VE.Can and VE.Direct ports for GX devices and monitoring
- Up to 99% efficiency
- Ultra-fast maximum power point tracking, good for partial shade
- Up to 4900 W of PV at 48V
- Programmable relay and remote on/off
- Sync up to 25 units in parallel over VE.Can (or 10 over Bluetooth)
- Tr screw terminals (35 mm² PV and battery)
Where to use it
The SmartSolar MPPT 250/85 Tr VE.Can suits larger off-grid and backup systems such as homes, farms, sheds and commercial sites, where a big array charges a 24V or 48V battery bank.
The 250V input lets you wire more panels in series to keep cable sizes and losses down, and VE.Can lets several controllers work together as one system with a GX device.
Dimensions
| Height | 216 mm |
| Width | 295 mm |
| Depth | 103 mm |
| Weight | 4.5 kg |
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
