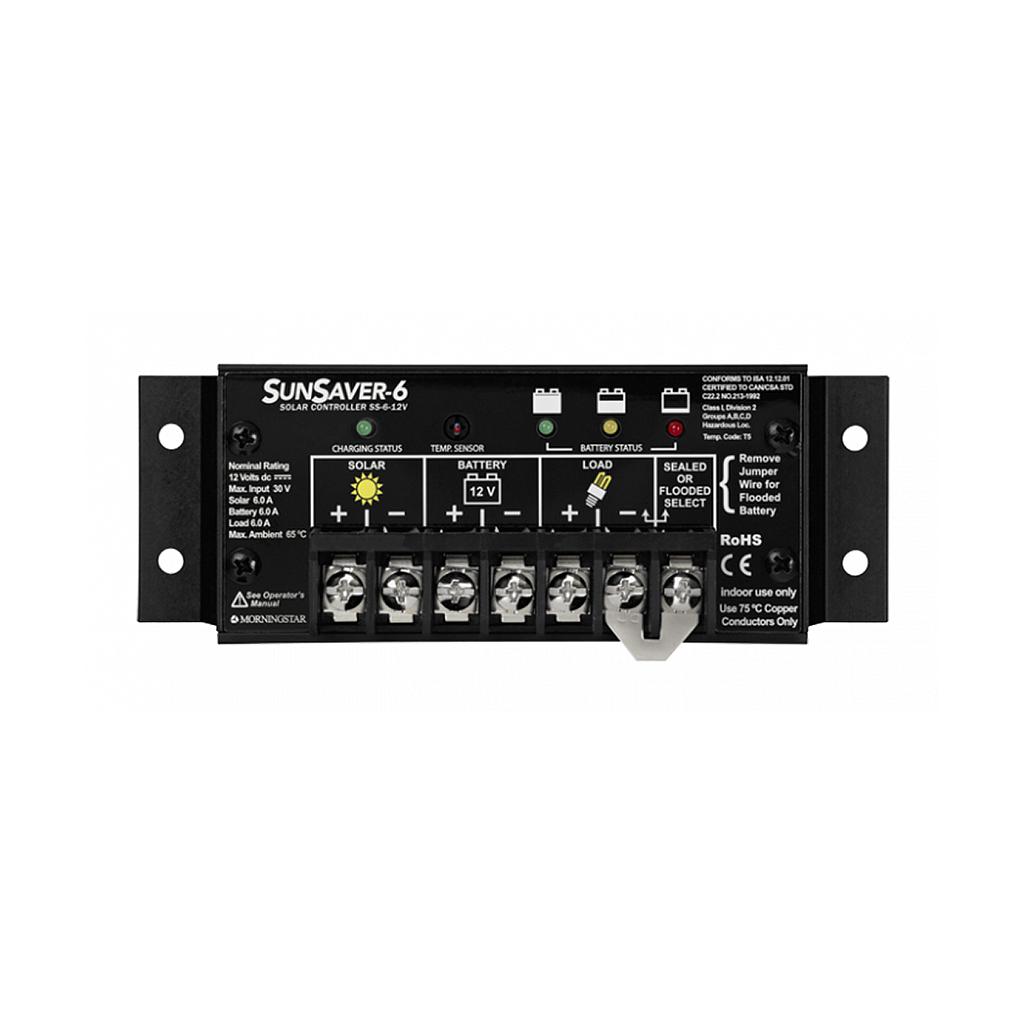

Morningstar SunSaver PWM 6Amp/12V/LVD
Morningstar SunSaver Controller:
Morningstar’s SunSaver is the world’s leading small solar controller for both professional and consumer applications.
SunSaver’s technology provides: Exceptional reliability, PWM Battery Charging, consistent High Quality.
The SunSaver’s advanced design delivers outstanding performance and value. The SunSaver’s low cost is made possible by Morningstar’s unique approach to design and manufacturing:
- Automated production
- ISO 9002 quality programs
- Latest power electronic technologies
- Latest control and logic technologies
- High volume manufacturing
Features:
- Eight versions available (see spec sheet) 12 and 24 volts 6, 10 and 20 amps
- 100% solid state
- Series design (not shunt)
- True 0 to 100% PWM duty cycle
- Setpoint accuracy to 35 mV
- Rated for 25% overloads
- Fully encapsulated in epoxy potting
- Marine rated terminals/anodized case
- Temperature compensation
- Sealed/Flooded battery select
- No need to derate
- Parallel for 40 amps or more
- Green charging/Red LVD indicators
- Approved for use in hazardous locations –
Class 1, Division 2, Groups A, B, C, D.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Morningstar
With 30 years of experience and more than 4 million products in over 100 countries, Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure. “Others survive harsh conditions. We THRIVE in them.”
