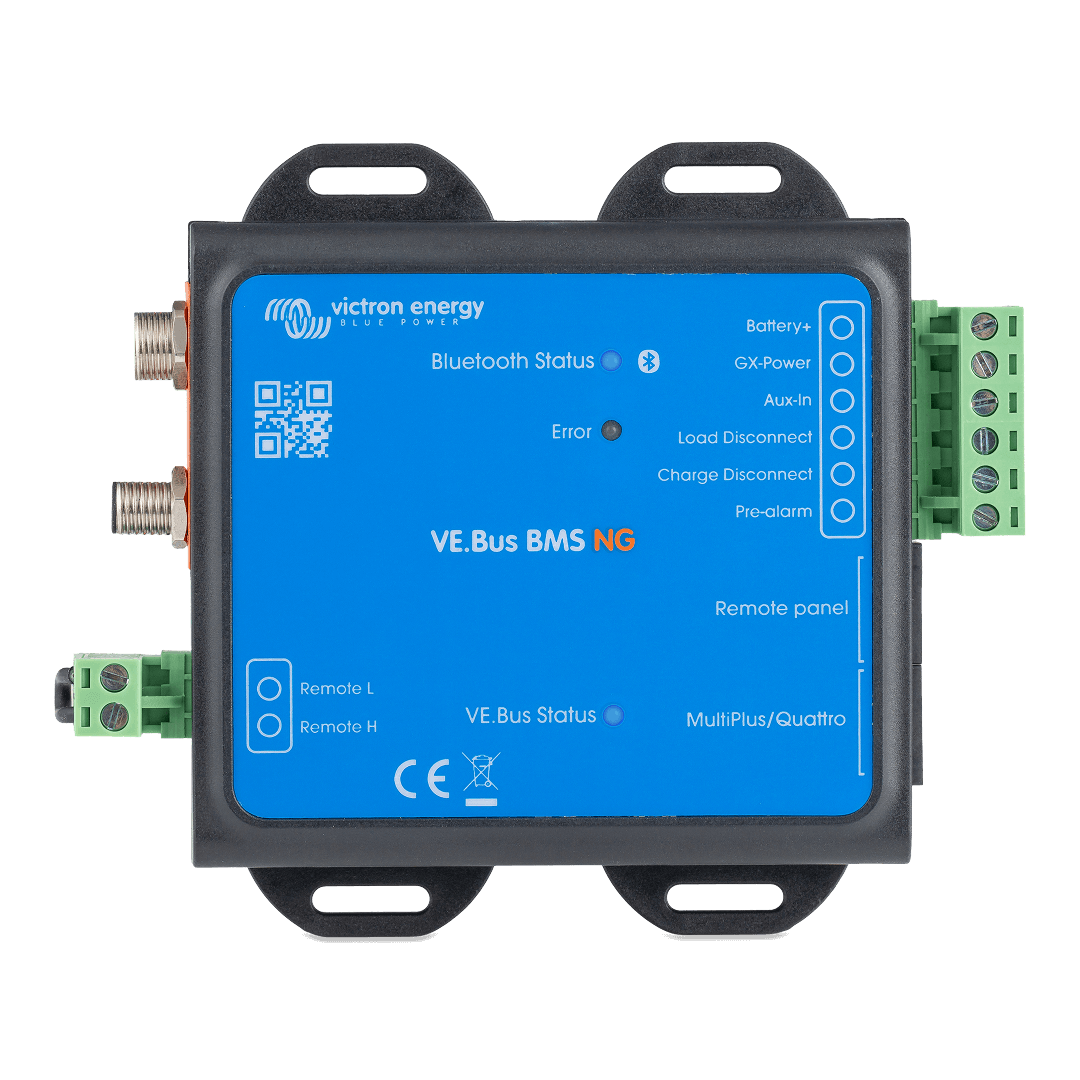

Victron VE.Bus BMS NG
All-in-one battery management system designed for 12 / 24 / 48 V Victron Lithium NG batteries
Victron VE.Bus BMS NG
Features
- All-in-one battery monitor
- Designed for Victron Lithium NG batteries
- Suitable for 12 / 24 / 48 V systems
- Built-in Bluetooth with VictronConnect app
- Load disconnect output to prevent deep discharge
- Charge disconnect output to prevent overvoltage
- Pre-alarm output providing early low-battery warning
- Remote on/off control
- LED indicators
- Auxiliary power input and output terminals
- VE.Bus communication port
Where to use it
The Victron VE.Bus BMS NG is designed for advanced lithium battery systems, providing seamless integration between your battery bank and Victron Energy inverter/chargers such as the Victron MultiPlus or Quattro.
Ideal for off-grid solar, caravans, marine, and commercial energy storage applications, it acts as the central control unit to protect your system by monitoring voltage, temperature, and overall battery health. By automatically managing charge and discharge and enabling safe shutdown when required, the VE.Bus BMS NG ensures reliable performance, maximises battery lifespan, and delivers peace of mind in demanding power setups.
Dimensions
Width | 95 mm |
Height | 23.2 mm |
Depth | 105.8 mm |
Weight | 120 g |
Safety features
- EN 60950 certified
- Provides undervoltage and overvoltage protection for the system
- Protects the connect battery back from cell overvoltage, overtemperature and under temperature damages
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
