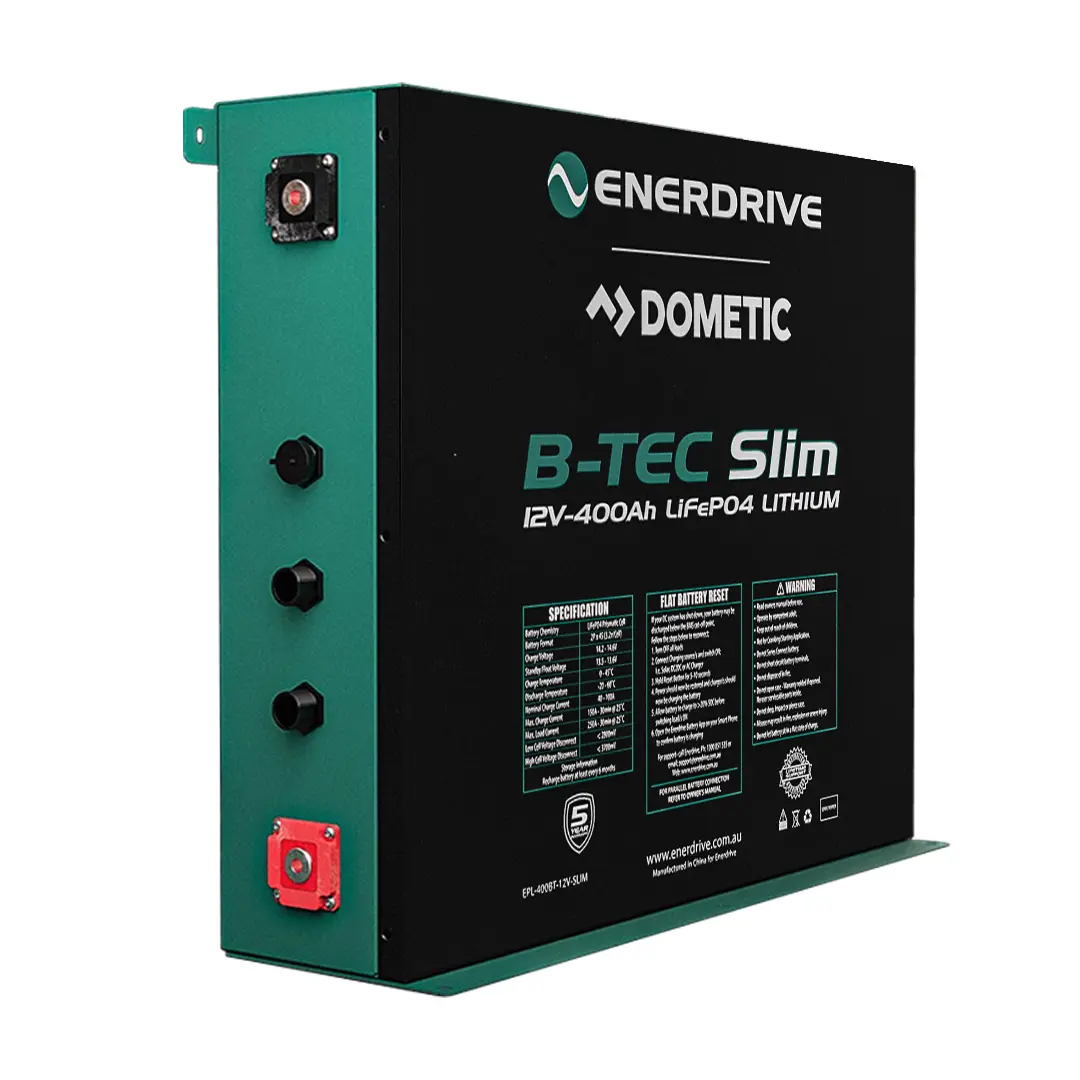

Enerdrive B-TEC 12V 400Ah LiFePO4 Slim Battery in Metal Case
Enerdrive B-TEC 12V 400Ah LiFePO4 Slim Battery in Metal Case
Features:
- 12V 400Ah Slimline Lithium Battery
- >2500 Charge Cycles @ 80% DOD
- Bluetooth Monitoring via Phone App
- Built-in Reset Button making re-starting a flat battery a breeze
- 630 x 498 x 216.5mm
The new 300Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small watercraft, low-power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
The B-TEC Slimline battery is able to be paralleled to a second B-TEC 12V 300Ah Slimline Lithium Battery. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS.
The 300Ah Slimline battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery. The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
More B-TEC Slim Features:
- Extremely compact size 630L x 126.5D x 498H mm
- All connection points for the battery are at one end including all Comms Ports and Reset Port.
- Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.
- Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
- Water resistant metal casing meeting IP52 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.
Smart Phone Monitoring System
The Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information:
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
- Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from overcharge, over discharge, over-temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery. Please note that a fully discharged battery (BMS is off) requires charging within 14 days to avoid cell damage.
Please note that B-TEC batteries must not be installed:
- In vehicle engine bays or in high-heat environments, refer to Section 10 – Battery Specifications of the manual.
- In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
- Inside compartments dedicated to carrying gas.
This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use only.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Enerdrive:
Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.
