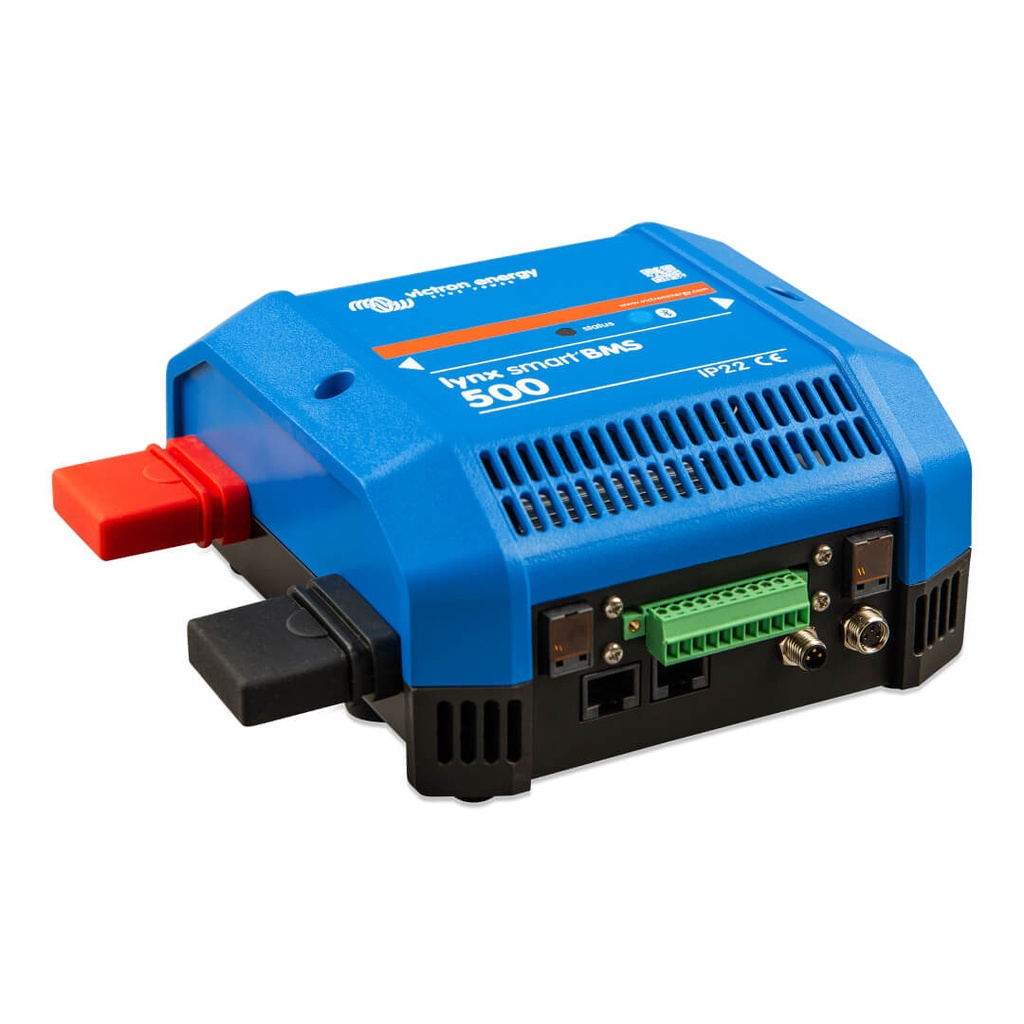

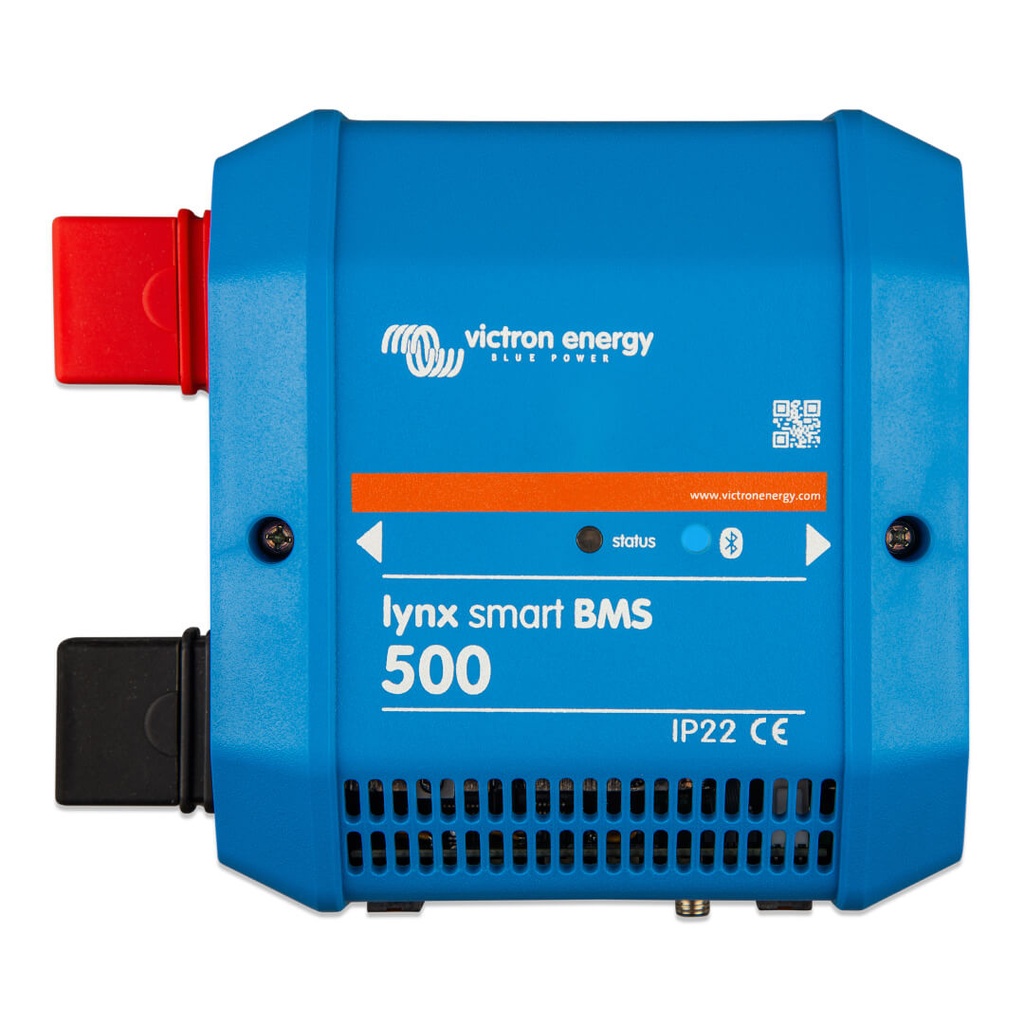

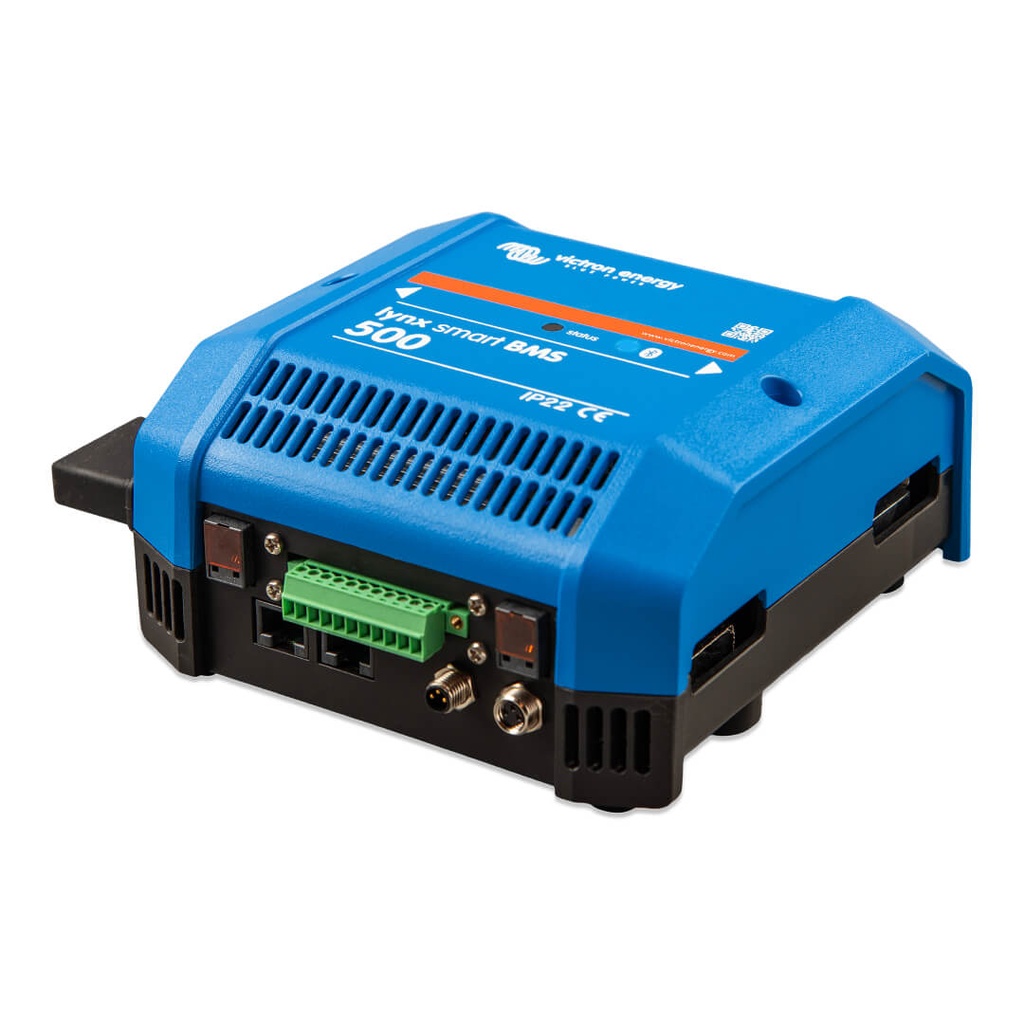

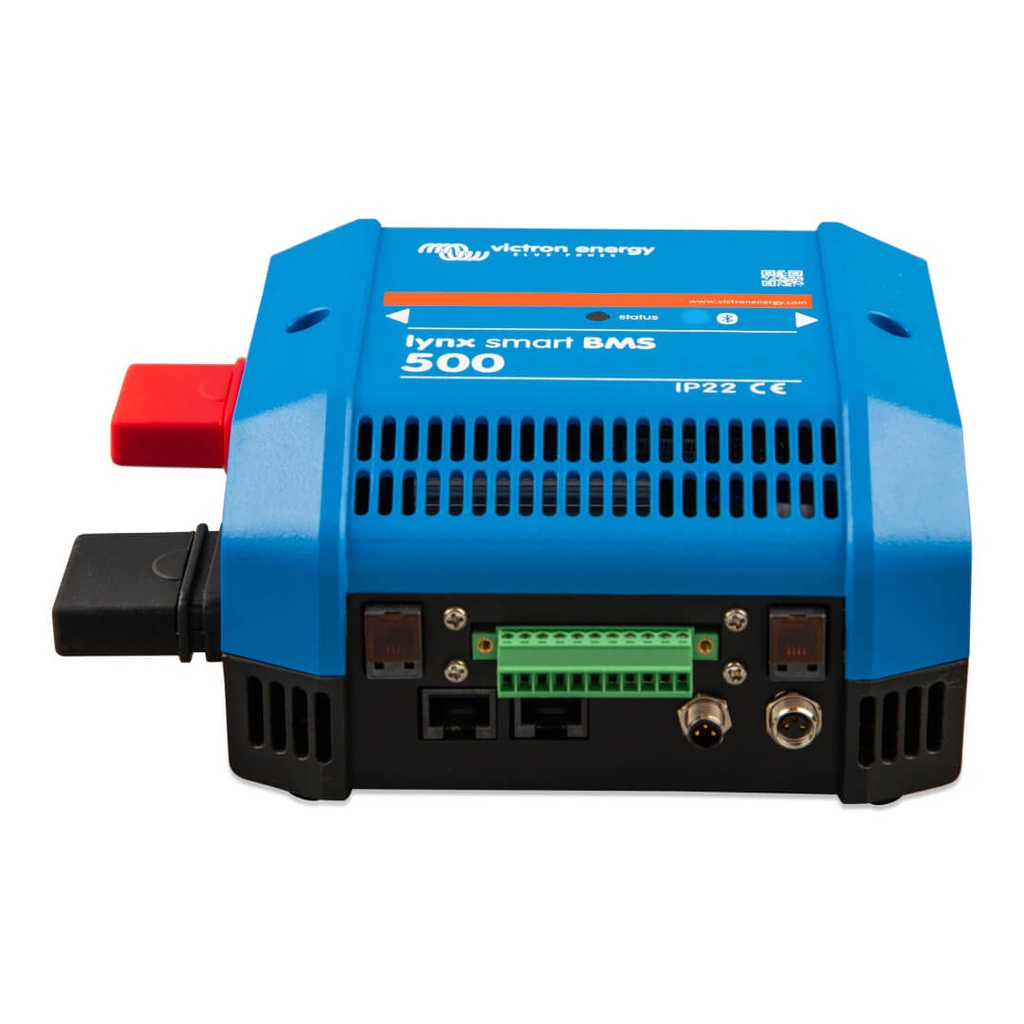

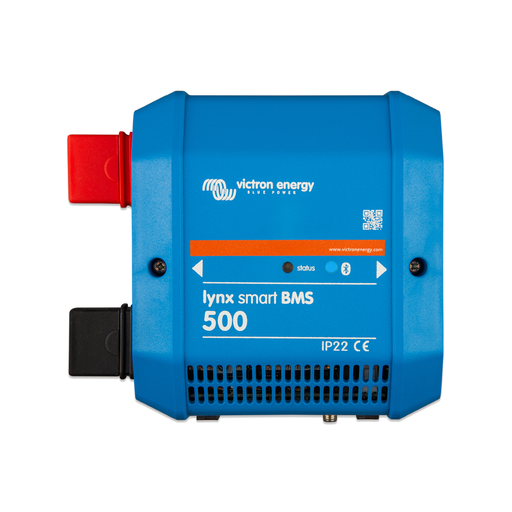

Lynx Smart BMS 500 NG (M10)

Lynx Smart BMS 500 NG (M10)

The Lynx Smart BMS NG is a dedicated Battery Management System for Victron Lithium NG (not to be confused with the Lynx Smart BMS 500A, which is for Victron Smart Lithium batteries) batteries available with a nominal voltage of 12.8V, 25.6V and 51.2V in various capacities. This is the safest of the mainstream lithium battery types. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192kWh in a 12V system and up to 384kWh in a 24V and 48V system. The maximum energy storage capacity can be multiplied by paralleling multiple Lynx Smart BMSs, which also ensures redundancy should one battery bank fail.

Multiple BMS-es are available for our Lithium NG series of batteries, and the Lynx Smart BMS NG is the most feature-rich and complete option. Its main features are:

The main features are:

• Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
• Battery monitor, indicating state of charge percentage and more data.
• Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
• Bluetooth for use with our VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.
• Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.
• M10 Busbar - The Lynx Smart BMS NG integrates seamlessly into our Lynx Distributor system & can be connected to al Lynx M10 Products.

The Lynx Smart BMS NG is part of the modular Lynx Distribution system.

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins
