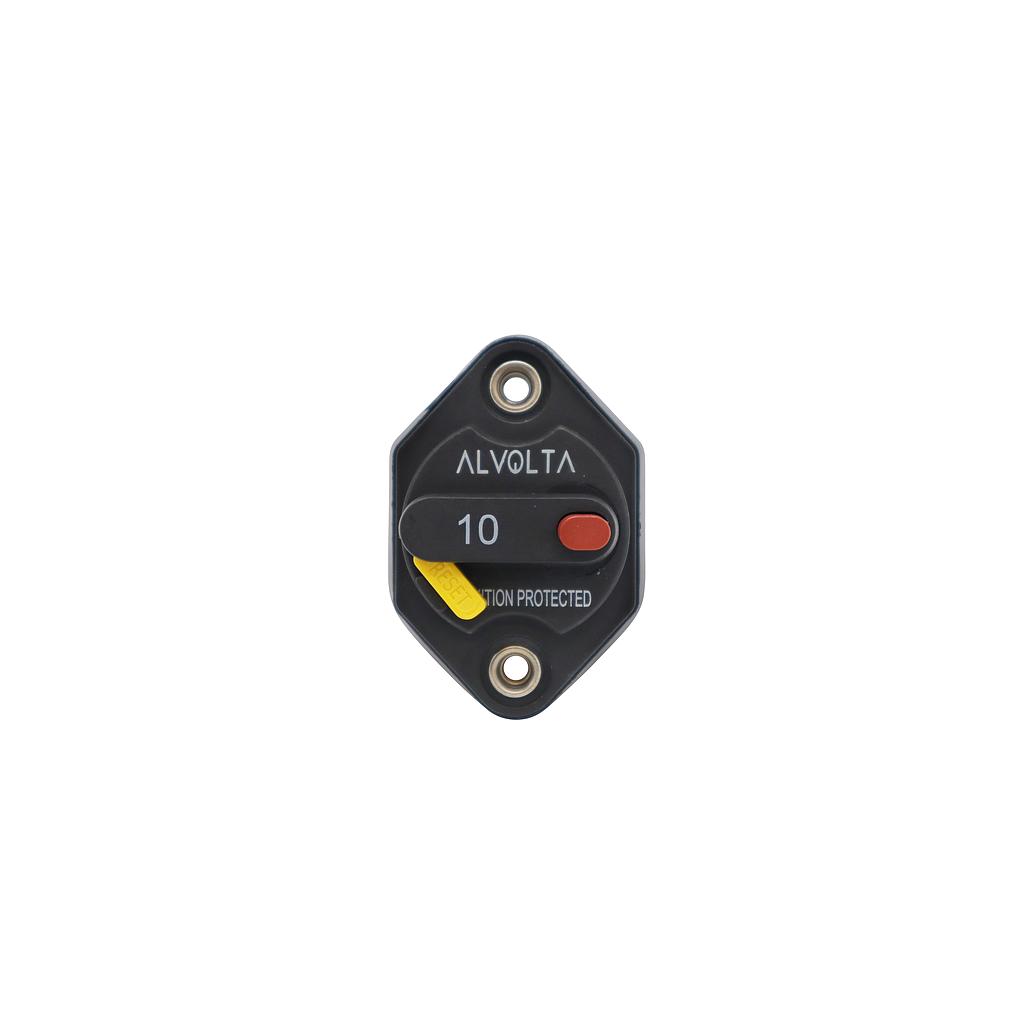

Alvolta 10A Manual Reset Panel Mount Circuit Breaker 255 Series
Through-wall panel mount 255 series circuit breaker with 1/4" terminal studs
Alvolta 10 A Manual Reset Panel Mount Circuit Breaker 255 Series
Features
- 10 A
- Manual reset circuit breaker
- Panel mount for through-wall installation
- Suitable for 12 - 32 V systems
- Marine-rated
- IP66 rated
- Can be used as an ON / OFF switch
- 1/4" / M6 terminal studs
- Thermal trip with trip status indicator
- Manual trip button
- Ignition protected
- 255 series offers a compact design
- Recessed mounting holes on top and bottom for tidy installation
Where to use it
Alvolta panel mount series 255 circuit breakers are designed for marine applications. They are suitable for use in boats, marine applications, motorhomes, 4WD, and off-grid setups.
Its durable design and IP66 rating make these an excellent choice for marine and exposed applications. It is sealed internally against moisture, dust, and dirt.
Dimensions
Width | 33 mm |
Height | 56 mm |
Depth | 37 mm |
Weight | .04 kg |
Compliance
- SAE J1625
- ABYC E-11
- CE
- SAE J1117 (Ignition Protection)
- IP66
Warranty
- 5-year warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
