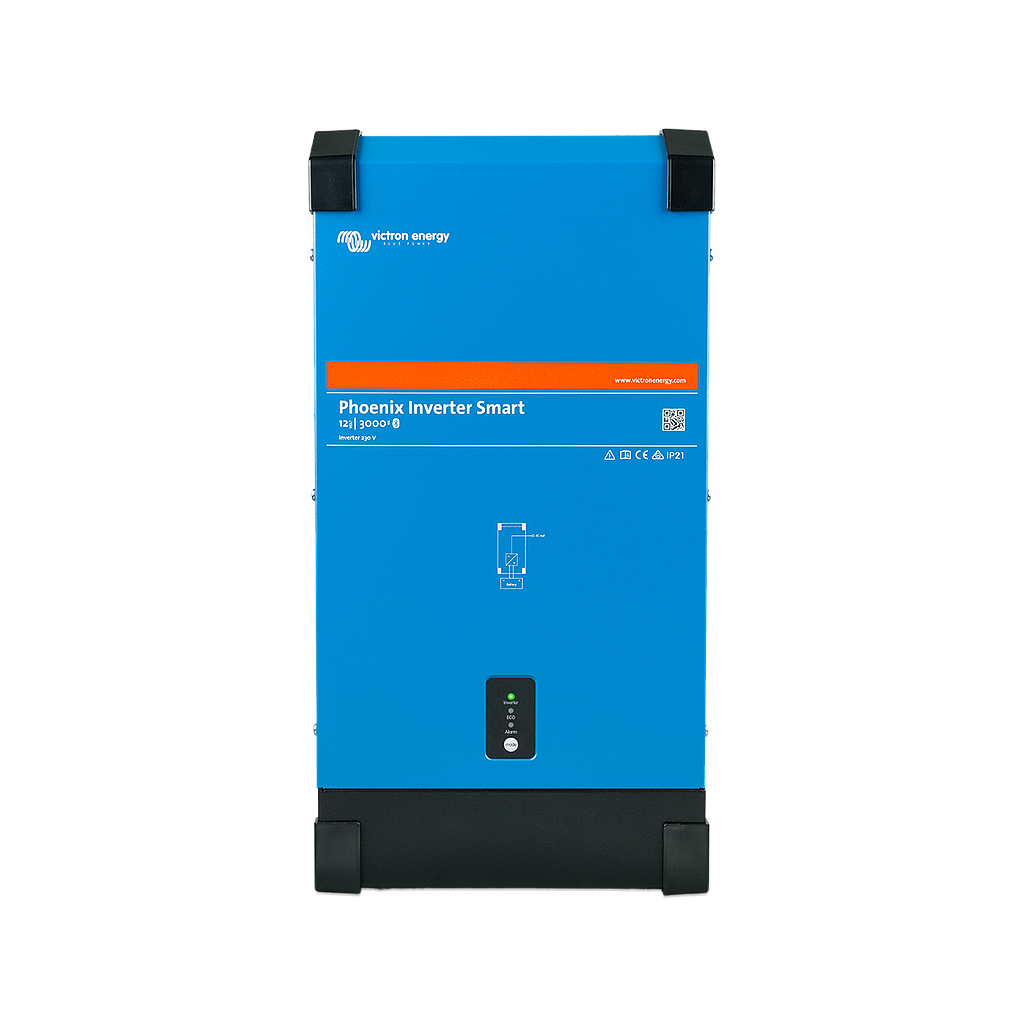

12V, 3000 VA pure sine wave inverter (2400 W continuous at 25 °C, 6000 W peak)
Built-in Bluetooth: monitor and set up with VictronConnect
VE.Direct port for GX monitoring and system integration
ECO mode cuts idle power to 1.5 W
Dynamic, load-dependent low-voltage cut-off
Programmable relay and remote on/off
Toroidal transformer for high surge capacity
Up to 93% efficiency
Where to use it
The Phoenix Smart 12/3000 powers larger 240V loads such as microwaves, coffee machines and power tools from a 12V lithium battery bank in caravans, motorhomes, boats, work vehicles and off-grid sheds.
It has screw terminals for hard-wiring the AC output, so it should be installed by a licensed electrician. At 3000 VA on 12V it draws high current, so use heavy cable and correct fusing.
Dimensions
Height
533 mm
Width
285 mm
Depth
150 mm
Weight
19 kg
Warranty
5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
About Victron Energy
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, inverter/chargers, battery chargers, DC-DC converters, transfer switches, battery monitors and more.
Size the cable and fuse to the inverter's maximum DC current and the cable length. For the Phoenix 12/1200 the battery terminals take cable up to 35 mm². Fit a fuse or circuit breaker close to the battery. Ask our team if you're unsure.
Product Specification
Parallel and 3-phase operation
No
Input voltage range
9.3-17V
Output
230 V AC ± 2%, 50 Hz or 60 Hz ± 0.1%
Continuous output power at 25 °C
3000 VA / 2400 W
Continuous output power at 40 °C
2200 W
Continuous output power at 65 °C
1700 W
Peak power
6000 W
Dynamic (load dependent) DC low shut down
Yes, fully configurable
Maximum efficiency
93%
Zero load power
12 W
Zero load power in ECO mode
1.5 W
Programmable relay (2)
Yes (AC 230 V / 4 A; DC 4 A / 35 V DC, 1 A / 60 V DC)
Protection
Output short circuit, overload, battery voltage too high or too low, over temperature, 230 V AC on inverter output, input voltage ripple too high
Bluetooth
Yes, for monitoring and set-up
VE.Direct communication port
Yes
Remote on-off
Yes
Operating temperature
-40 to +65 °C (fan assisted cooling)
Humidity
Max 95%, non-condensing
Material and colour
Steel (blue RAL 5012 and black RAL 9017)
Protection category
IP21
Battery-connection
2 + 2 M8 bolts
230 V AC-connection
Screw terminals
Weight
19 kg
Dimensions (hxwxd)
533 x 285 x 150 mm
Safety
EN 60335-1
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
